MTK-120ABC Mask Boxing and Packaging Production Line

Description

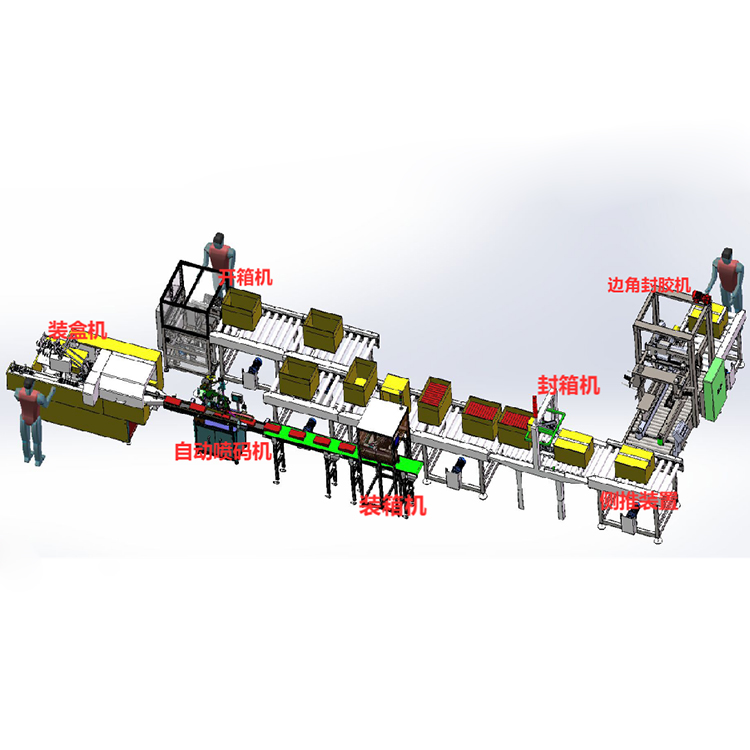

The system consists of a fully automated box-filling machine, case opener, box stacker, case packer, and case sealer operating in a continuous line.

1: The box-filling machine connects to the mask packaging machine via a conveyor line at its front end;
2: Mask sorting, turning, sorting, acceleration, and buffering mechanism;
3: Two mask sorting and box-filling packaging lines connect to a single case packer;
4: Boxed masks are organized, stacked, and picked by the case packer into cartons;
5: Automated case opening, packing, and sealing, with final sealed cases discharged via logistics conveyor.

The entire mask packaging process requires no manual intervention. This automated cartoning and case packing production line is not only used for packaging disposable masks but also widely applied in industries such as electronic components, pharmaceuticals, food, daily chemicals, hardware, automotive parts, plastics, electronics, entertainment, toys, and household paper products for cartoning, case packing, and packaging.

SHARE AS

REQUEST A QUOTE

Features

Suitable for automatic box opening and bottom sealing of various carton sizes; manual adjustment is required when changing carton specifications.

The box opener can operate as a standalone unit or integrate with automated packaging lines.

Features stable performance, reliable quality, strong adaptability, high packaging efficiency, and extended service life. Precision-engineered components ensure durability, while the meticulously designed structure delivers vibration-free, stable, and reliable operation.

High automation level: automatic box loading, automatic box positioning, automatic box opening, automatic bottom flap folding, automatic bottom sealing with tape, automatic box insertion, automatic box sealing, automatic bundling. Equipped with PLC + display screen control for easy operation, it is an indispensable assembly line device for automated mass production.

Technical Parameters

Model	MTK-120A
Maximum Carton Dimensions (L**) mm	220 x 90 x 60
Minimum Carton Dimensions (LWH) mm	80 x 20 x 20
Machine Dimensions (L**H) mm	2600 x 1350 x 1650
Packaging Speed	300-400 g/m²
Packaging Materials	20 m²/h (pressure 0.5-0.7 MPa)
Air Consumption	220 V 50/60 Hz or 380 V three-phase four-wire 50 Hz
Power Specifications	20m²/h (Pressure 0.5-0.7MPa)
Power Rating	Approximately 1.5 kW
Machine Weight	1200 kg
Customized solutions available upon request. Please contact our customer service team for details.

Model	MTK-120B
Maximum Carton Dimensions (L**) mm	22012060
Minimum Carton Dimensions (LWH) mm	702020
Machine Dimensions (L**H) mm	260013501650
Packaging Speed	300-400 g/m²
Packaging Materials	20 m²/h (pressure 0.5-0.7 MPa)
Air Consumption	220 V 50/60 Hz or 380 V three-phase four-wire 50 Hz
Power Specifications	20m²/h (Pressure 0.5-0.7MPa)
Power Rating	Approximately 1.5 kW
Machine Weight	1200 kg
Customized solutions available upon request. Please contact our customer service team for details.

Model	MTK-120c
Maximum Carton Dimensions (L**) mm	22012060
Minimum Carton Dimensions (LWH) mm	502515
Machine Dimensions (L**H) mm	320012001700
Packaging Speed	300-400 g/m²
Packaging Materials	20 m²/h (pressure 0.5-0.7 MPa)
Air Consumption	220 V 50/60 Hz or 380 V three-phase four-wire 50 Hz
Power Specifications	20m²/h (Pressure 0.5-0.7MPa)
Power Rating	Approximately 1.5 kW
Machine Weight	1300 kg
Customized solutions available upon request. Please contact our customer service team for details.

Applications

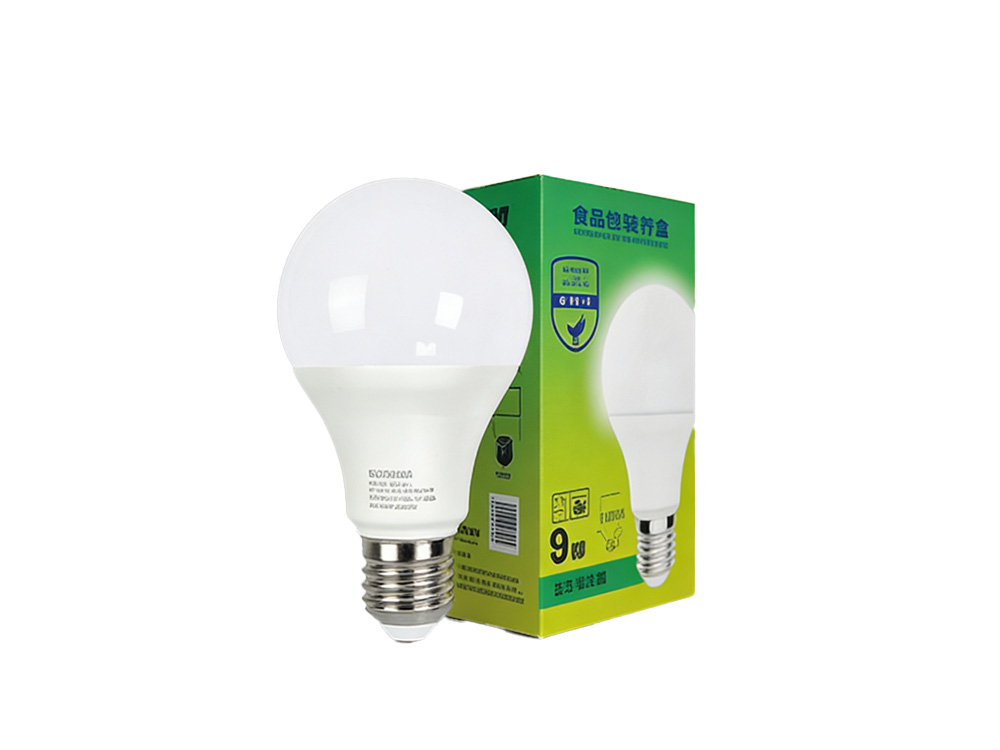

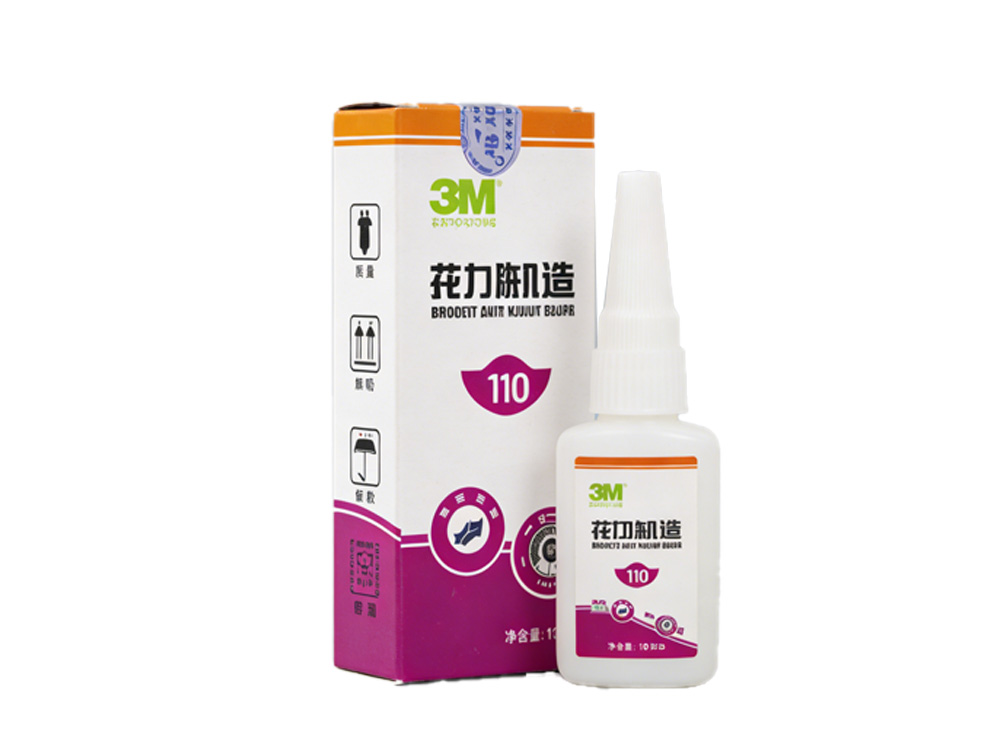

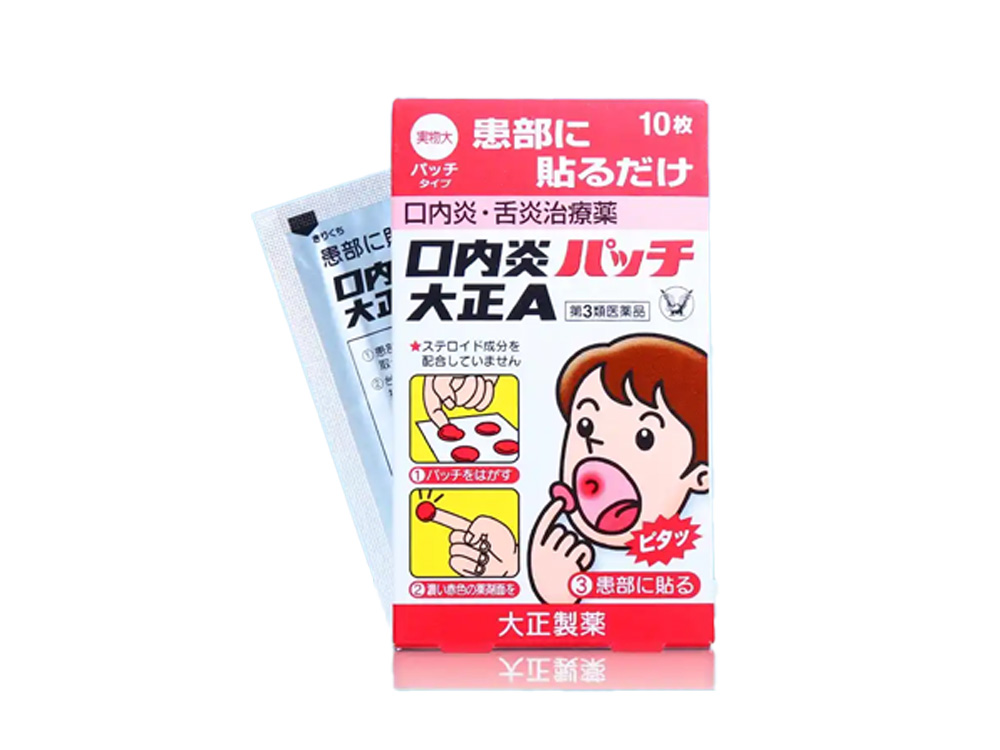

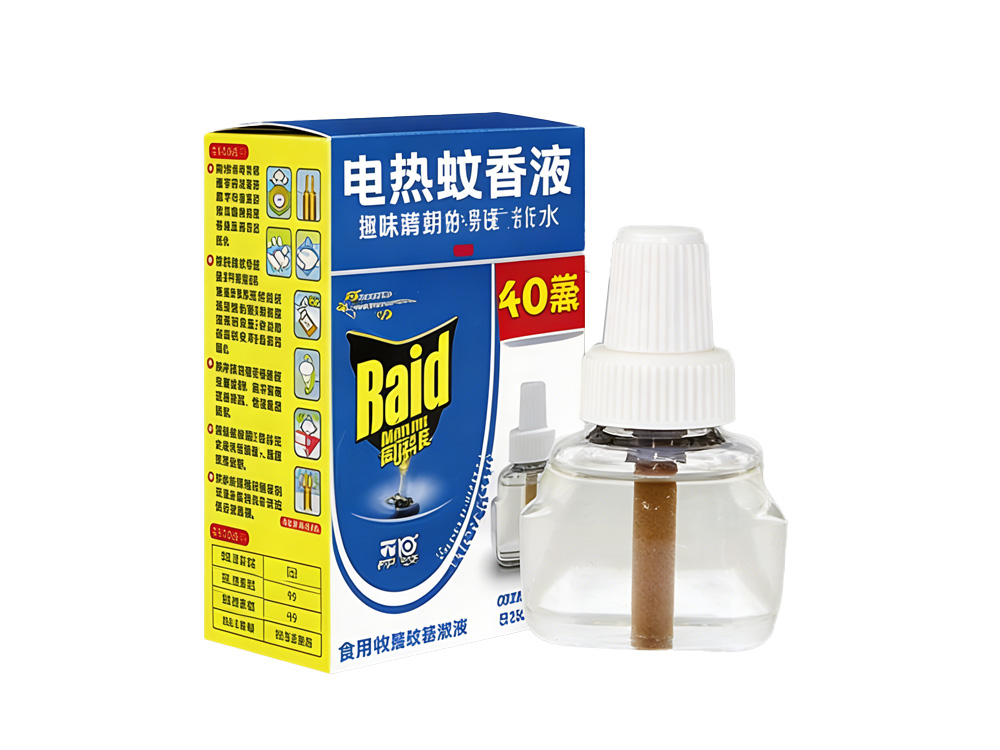

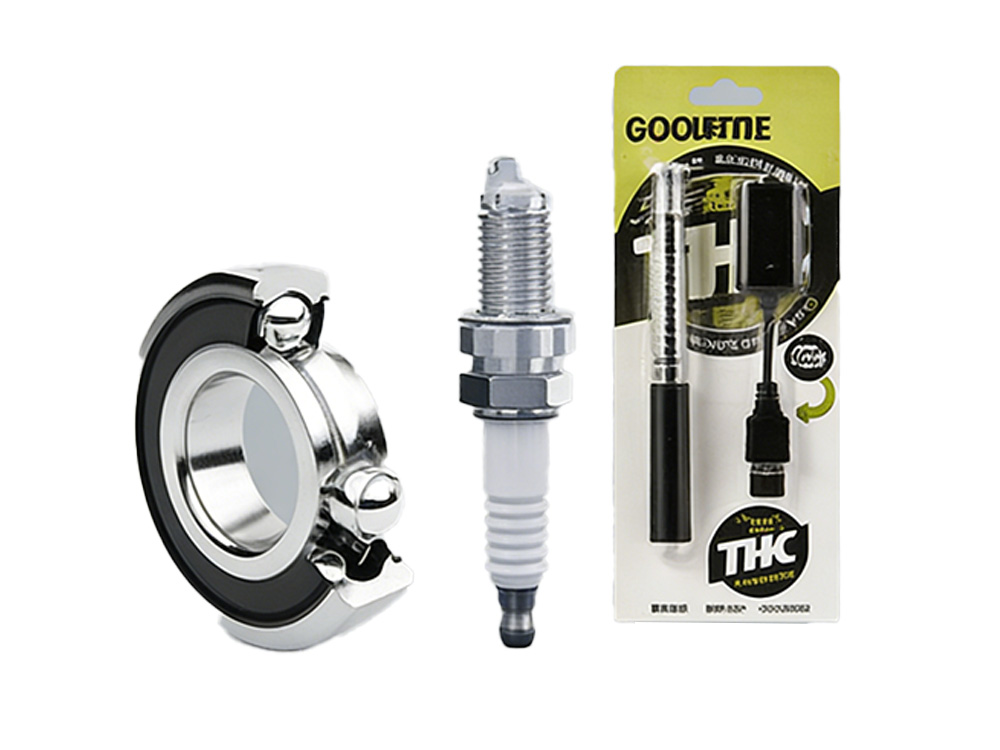

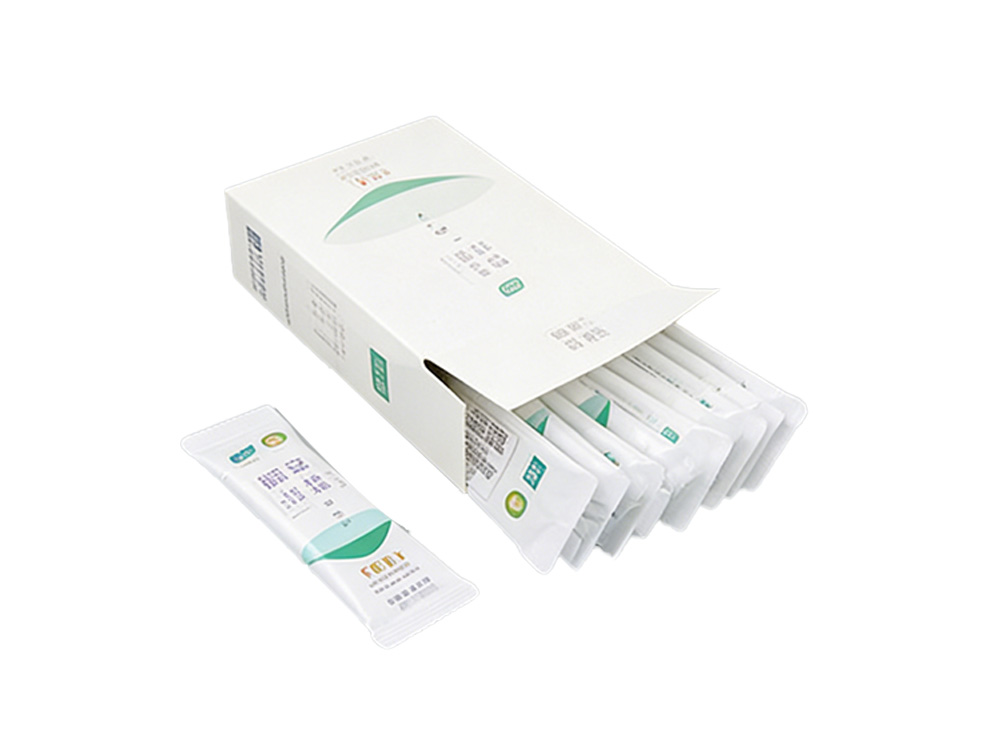

It is suitable for paper box packaging in various fields such as food, medicine, medical equipment, electronic products, hardware accessories, automotive accessories, cosmetics, daily necessities, etc.
