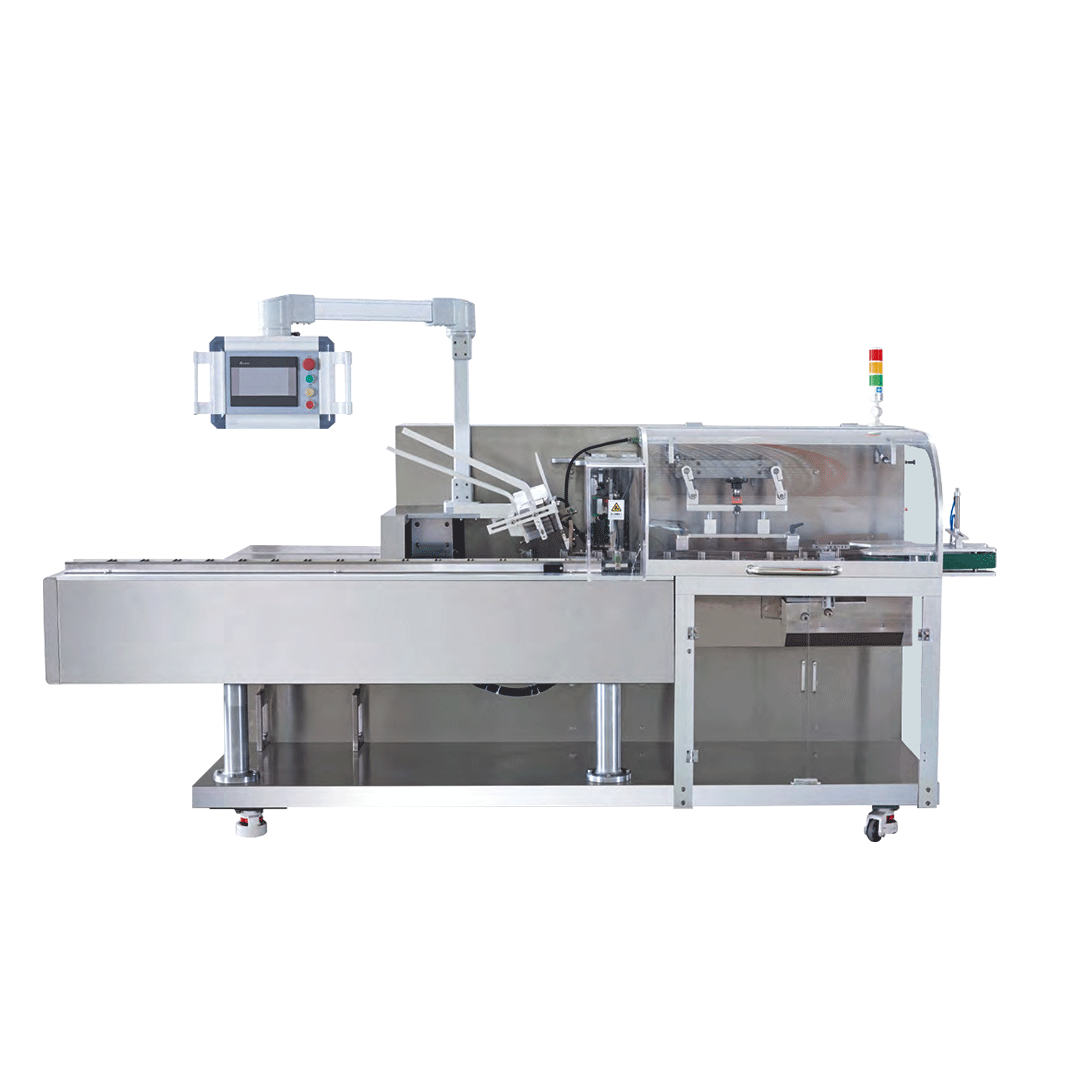

MTK 120 Automatic Cartoning Machine for Personal Care Products

Description

This cartoning machine is suitable for packaging cosmetics such as hand cream, toner, hair care sets, and lipstick, as well as for packaging various daily necessities and food items in paper boxes.

SHARE AS

REQUEST A QUOTE

Technical Parameters

Model	MTK-120
Packaging Speed	10-80 boxes/minute
Technical Specifications	250-450 g/m², with pre-folding effect, carton crease depth ≥0.4mm
Carton Requirements Dimension Range (L x W) (mm)	(70-220) × (40-120) × (12-60)
Compressed Air Pressure	0.5-0.8 MPa
Compressed Air Consumption	20 m²/h
Sealing Method	Humidity ≤80%, ambient temperature -10 to 40°C
Power Supply	380V 50Hz
Main Unit Power	1.5 kW
Dimensions	260013501650 mm
Net Weight	1200 kg
Note: Products can be customized according to user needs. Data is subject to change without notice.

Model	MTK-130
Packaging Speed	15-70 boxes/minute
Technical Specifications	250-450 g/m², with pre-folding effect, box crease depth ≥0.4mm
Carton Requirements Dimension Range (L x W) (mm)	(70-200) × (80-160) × (15-60)
Compressed Air Pressure	0.5-0.8 MPa
Compressed Air Consumption	20 m²/h
Sealing Method	Humidity ≤80%, ambient temperature -10 to 40°C
Power Supply	380V 50Hz
Main Unit Power	1.5 kW
Dimensions	280015501650 mm
Net Weight	1300 kg
Note: Products can be customized according to user needs. Data is subject to change without notice.

Applications

It is suitable for paper box packaging in various fields such as food, medicine, medical equipment, electronic products, hardware accessories, automotive accessories, cosmetics, daily necessities, etc.
