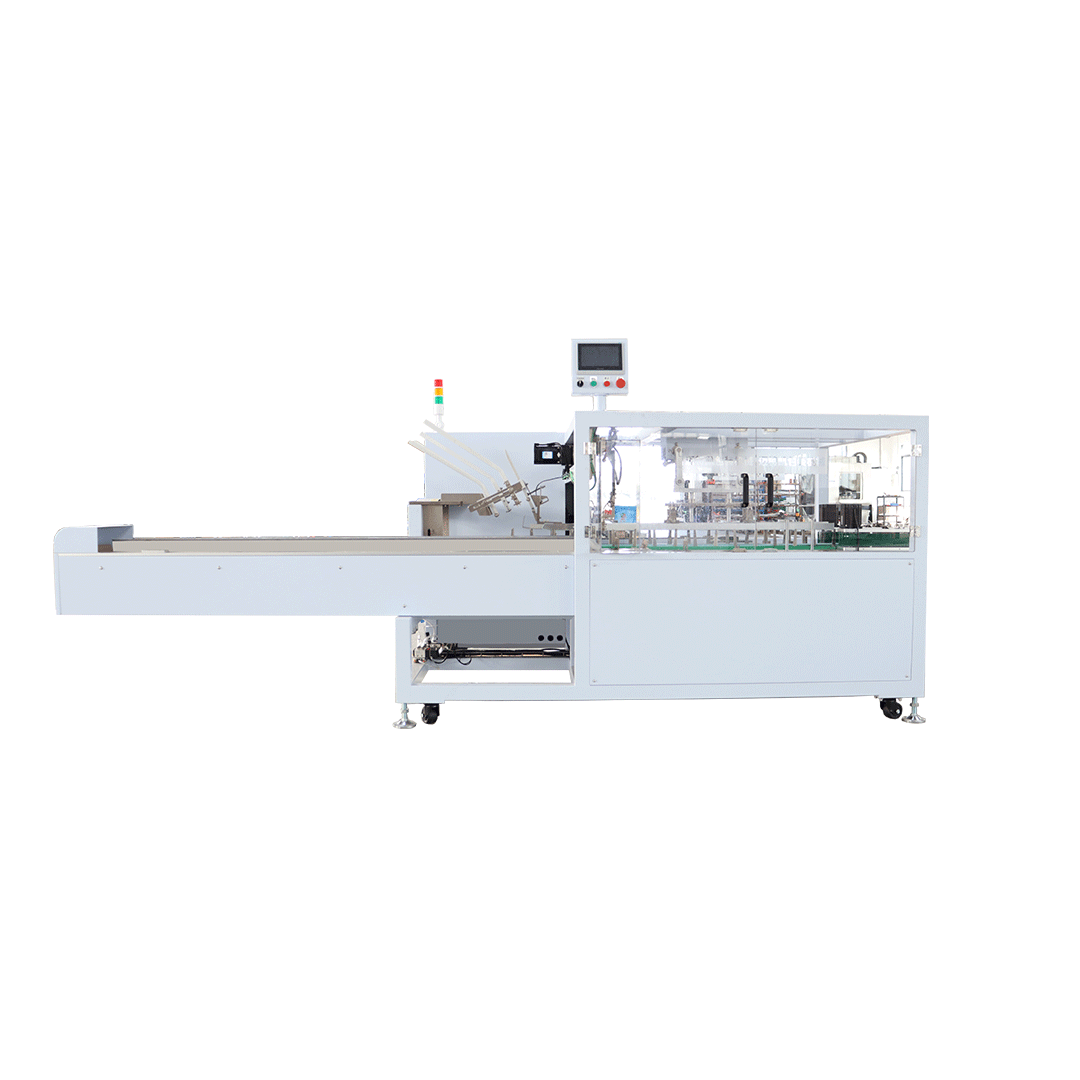

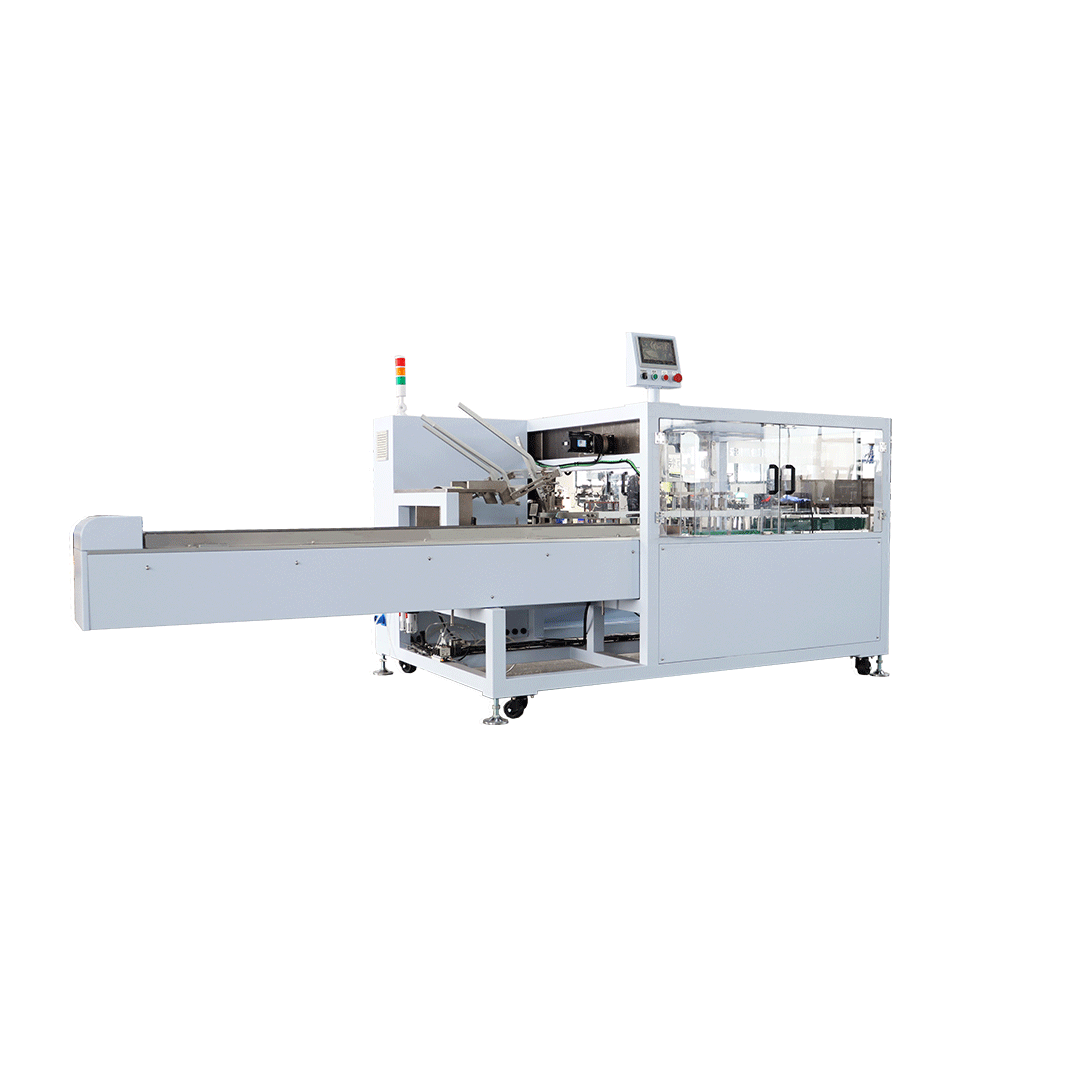

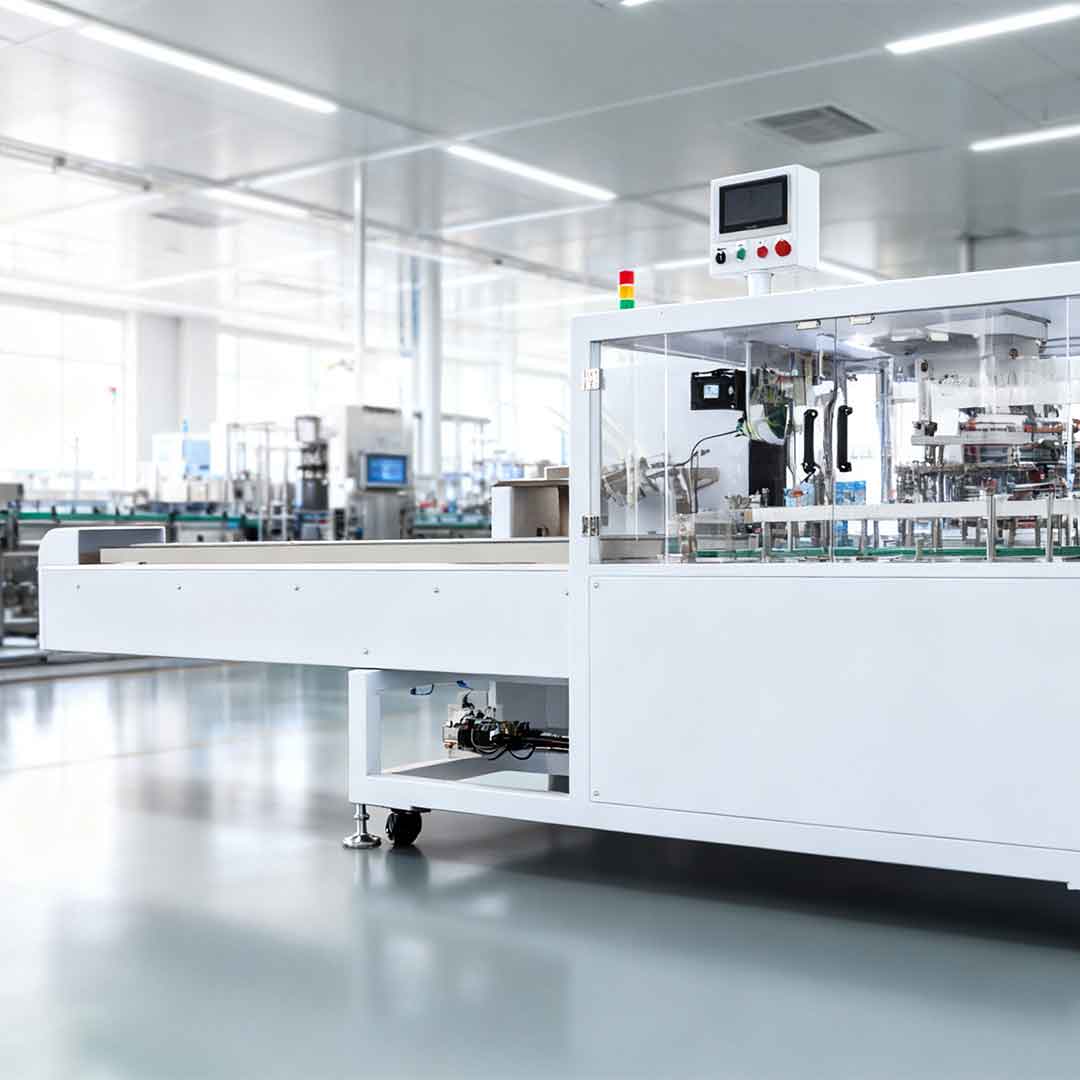

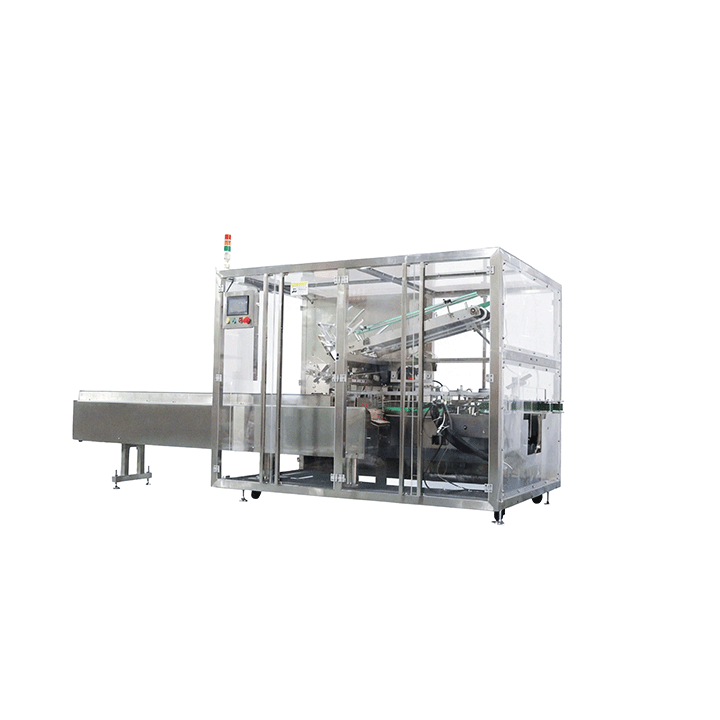

Power Adapter Cartoning Machine

Description

This machine is compatible with a wide range of automated cartoning machines for various box sizes. It is easily adjustable and suitable for automatically packing various types of boxes (such as those for data cables, phone screen protectors, chargers, and cooling patches). It can be used for the automated packing and sealing of packaging boxes, including white cardboard boxes, color boxes, and boxes with windows, eliminating the need for manual packaging.

SHARE AS

REQUEST A QUOTE

Features

There are two types of horizontal automatic cartoning machines: box insertion type and glue spraying type.

Users can choose according to the sealing method of the product.

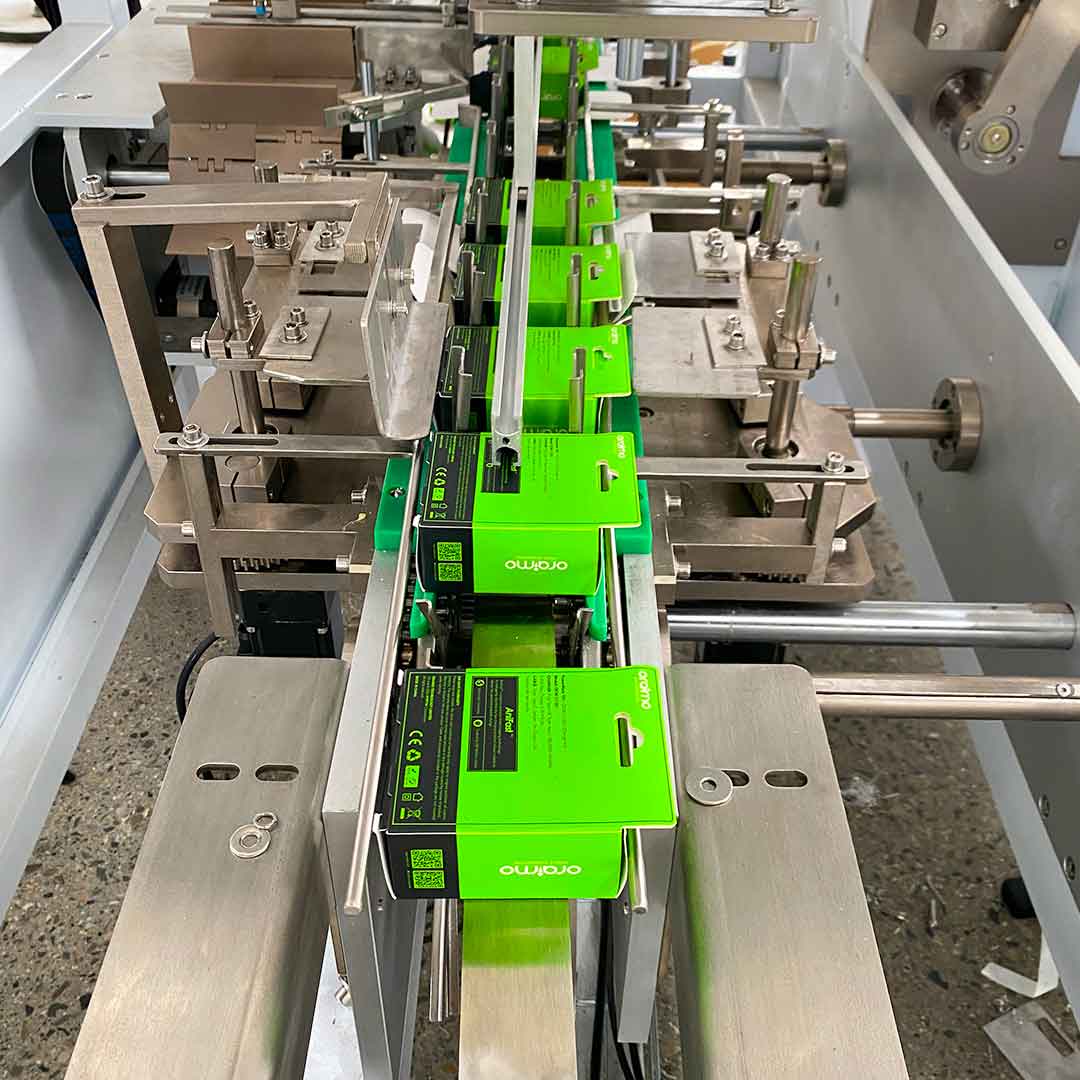

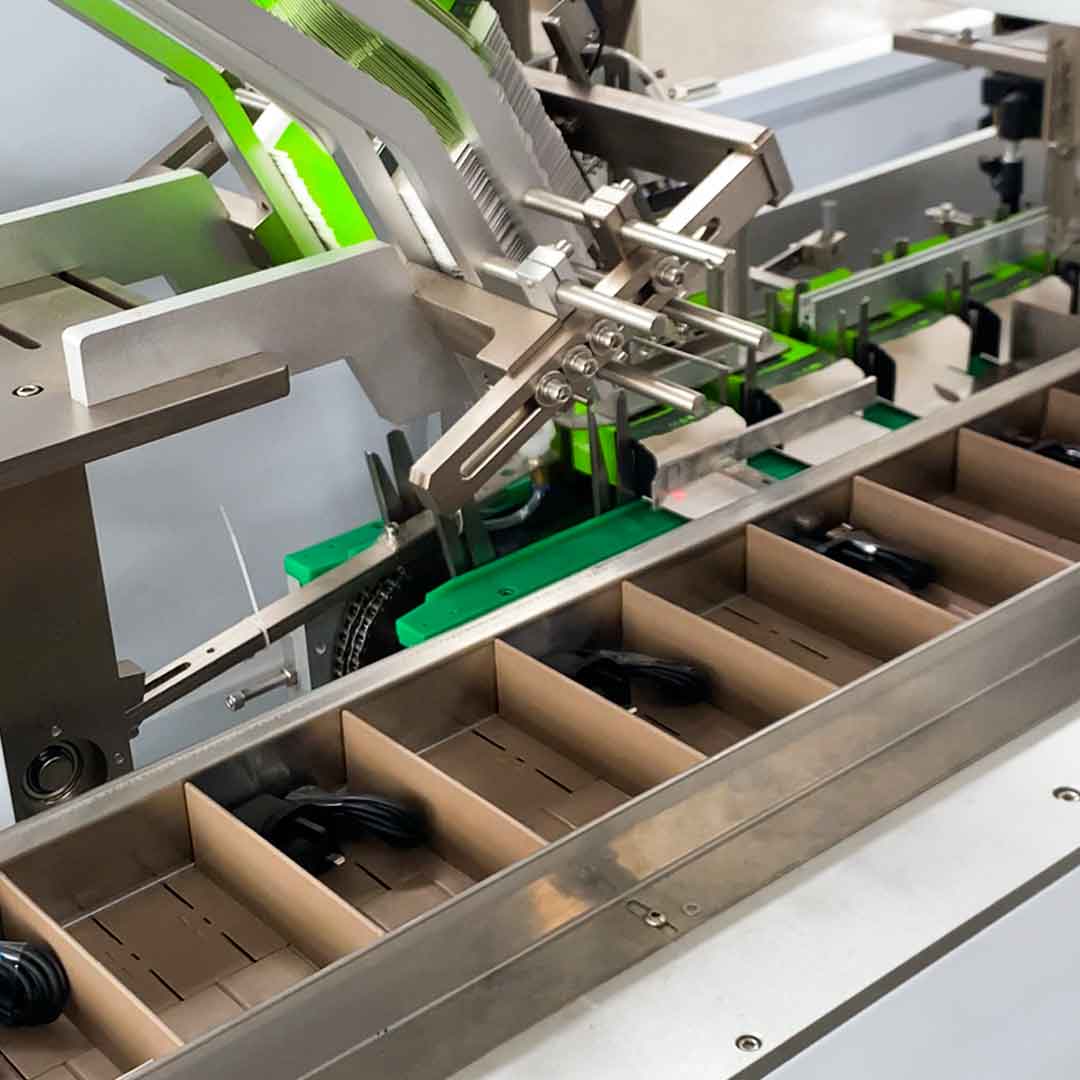

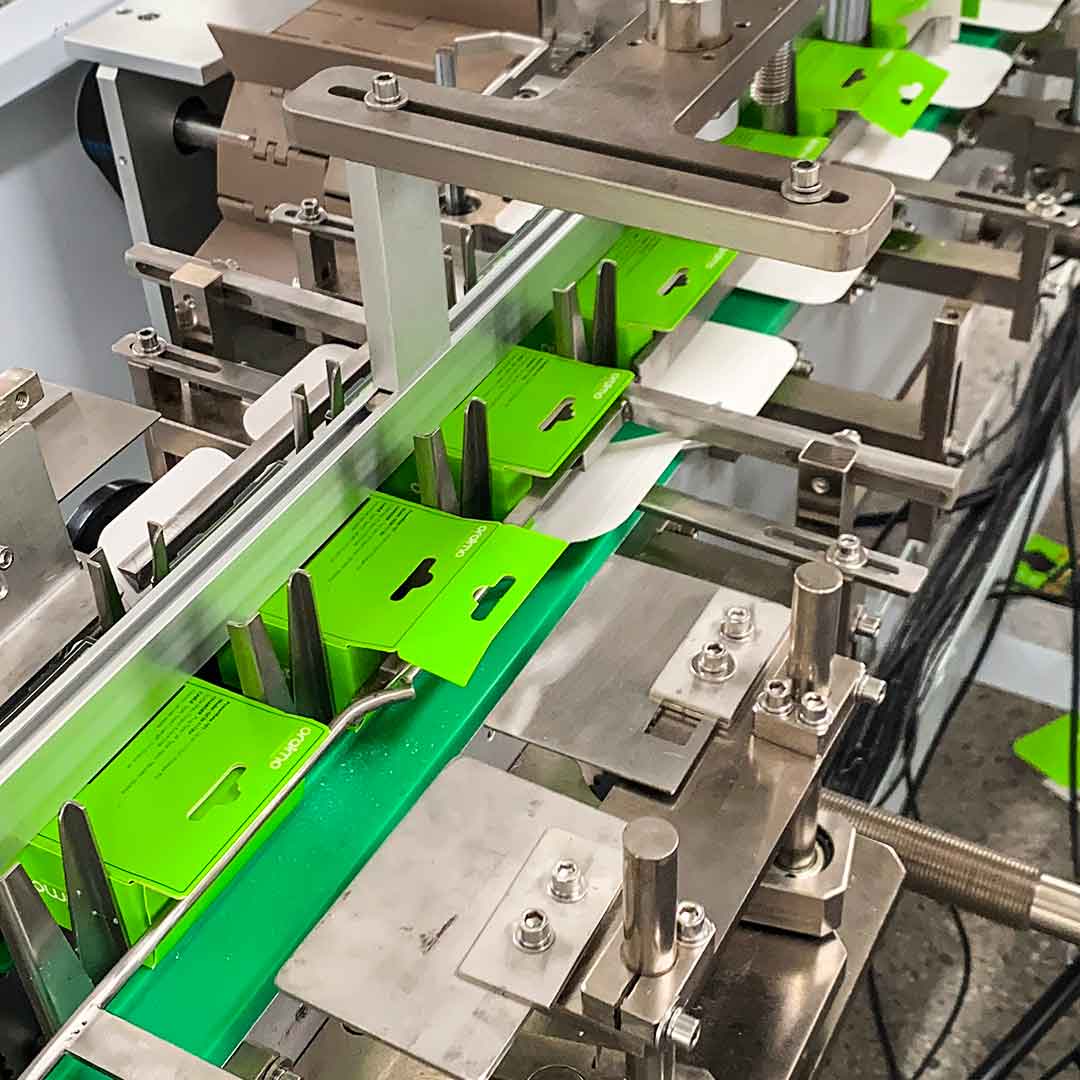

The machine adopts a flat pushing method to feed materials. The packaging speed is within 10-80 boxes/minute, and the stable speed can be set according to product requirements; it has functions such as automatic box opening, box loading, and box sealing, and can also be equipped with automatic material sorting lines, labeling machines, case packing machines, etc. according to needs; it has strong compatibility, and the paper box can be adjusted freely within 50*25*15mm~300*300*260mm, which is easy to operate.

Technical Parameters

Model
Packaging Speed	10-80 boxes/minute
Technical Specifications	250-450 g/m², with pre-folding effect, carton crease depth ≥0.4mm
Carton Requirements Dimension Range (L x W) (mm)	(70-220) × (40-120) × (12-60)
Compressed Air Pressure	0.5-0.8 MPa
Compressed Air Consumption	20 m²/h
Sealing Method	Hot melt adhesive dispensing sealing
Power Supply	380V 50Hz
Main Unit Power	1.5 kW
Dimensions	2600 × 1350 × 1650 mm
Net Weight	1200 kg

Applications

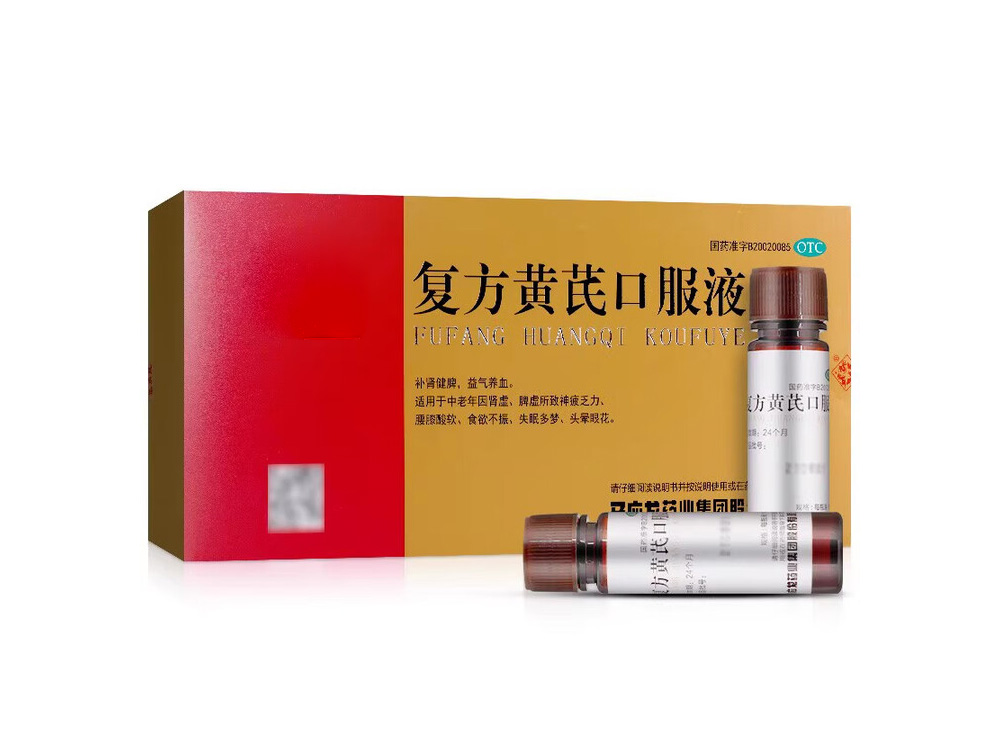

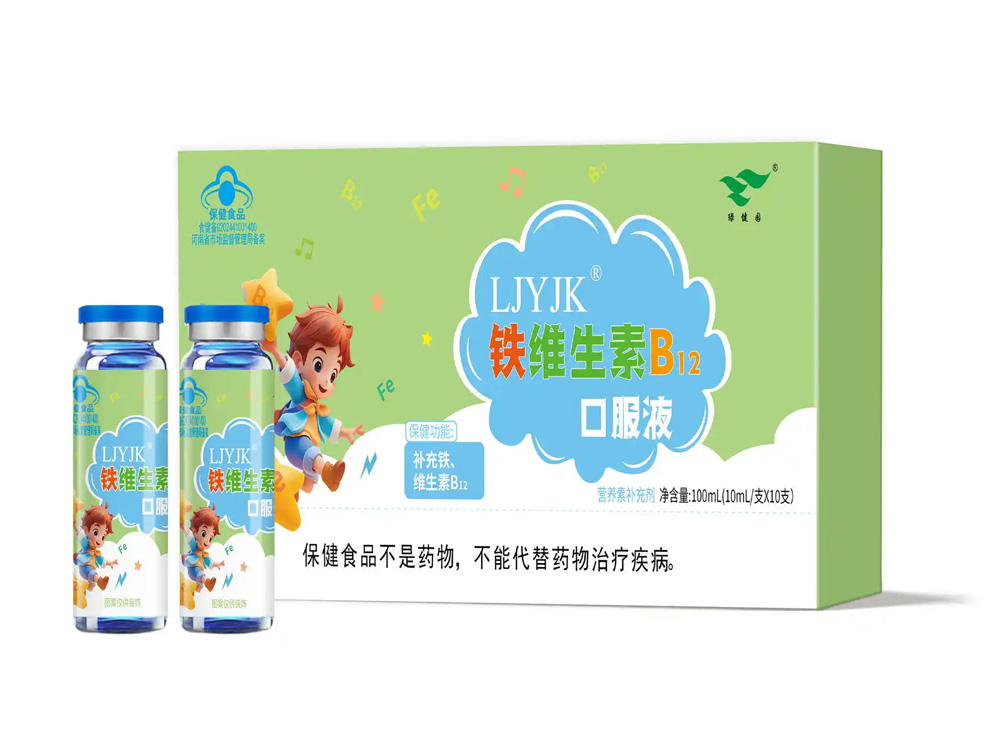

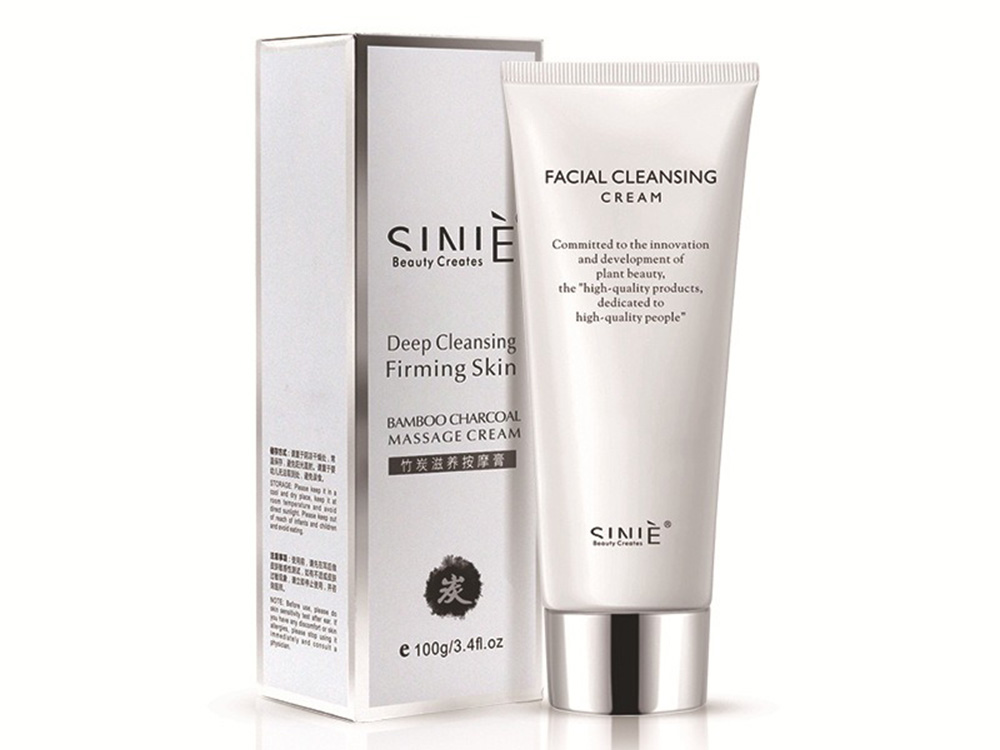

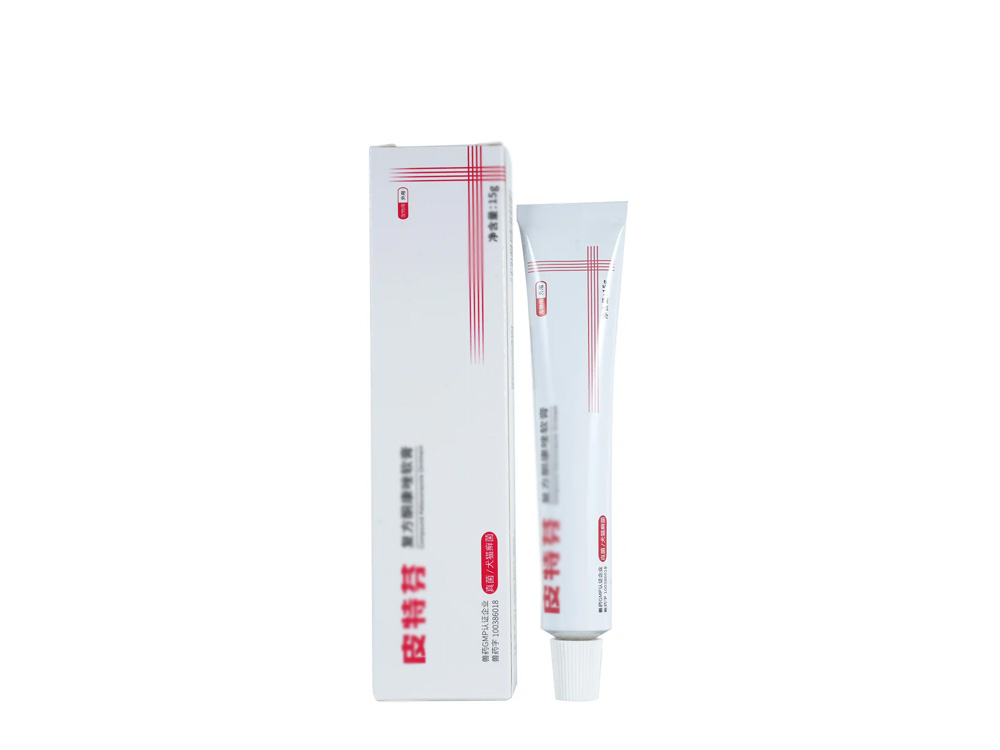

It is suitable for paper box packaging in various fields such as food, medicine, medical equipment, electronic products, hardware accessories, automotive accessories, cosmetics, daily necessities, etc.
