Name: MTK-150H High-Speed Automatic Cartoning Machine
Brand: Mattkay
SKU: MTK-150H

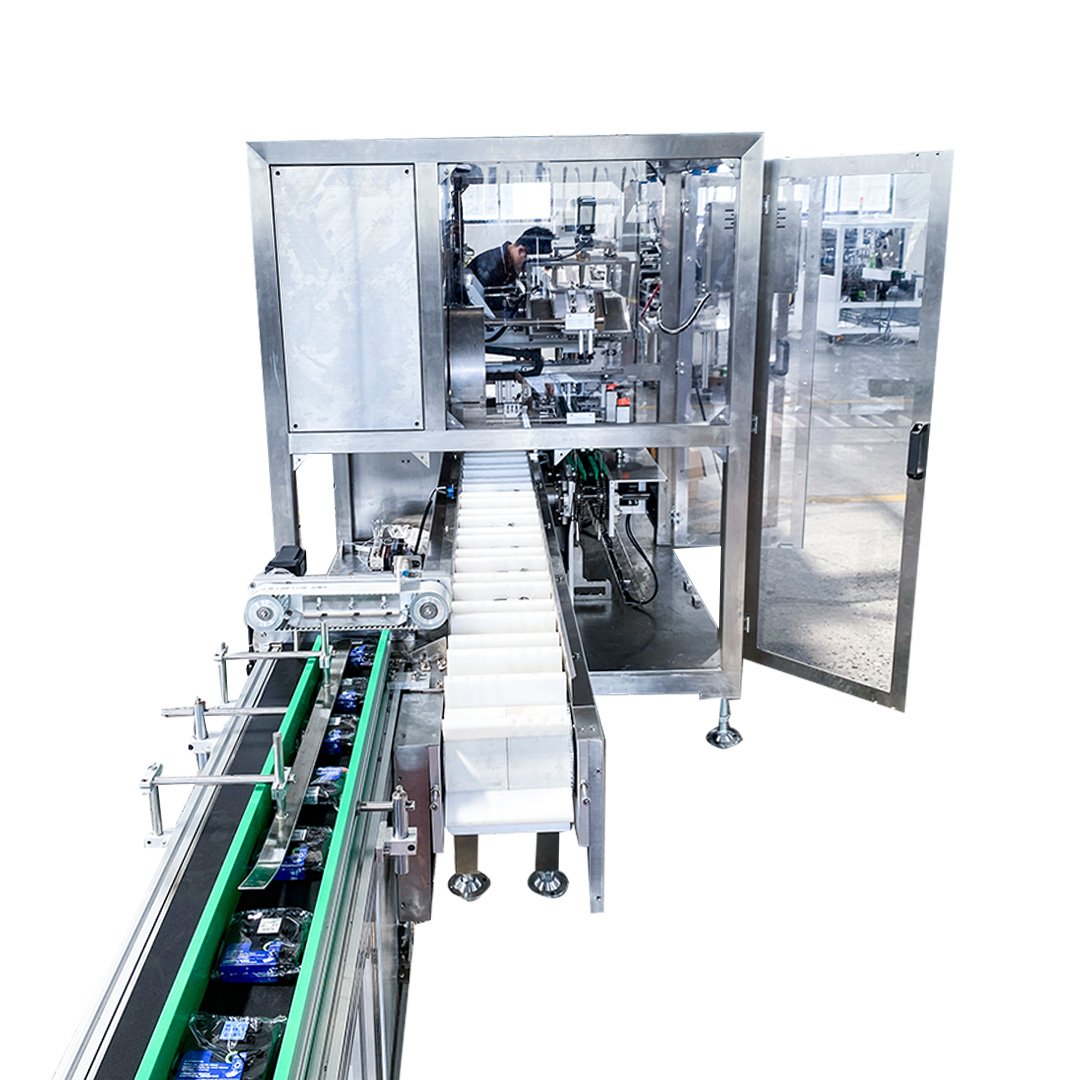

MTK-150H High-Speed Automatic Cartoning Machine

Description

The High-Speed Automatic Cartoning Machine by Mattkay Packaging Machinery Co., Ltd. is designed to provide stable, efficient, and intelligent cartoning solutions for high-volume production lines.With a servo-driven system, PLC control, and cloud connectivity, the machine ensures precise positioning, consistent performance, and real-time production monitoring, making it ideal for pharmaceutical, food, cosmetic, and daily chemical industries.

SHARE AS

REQUEST A QUOTE

Features

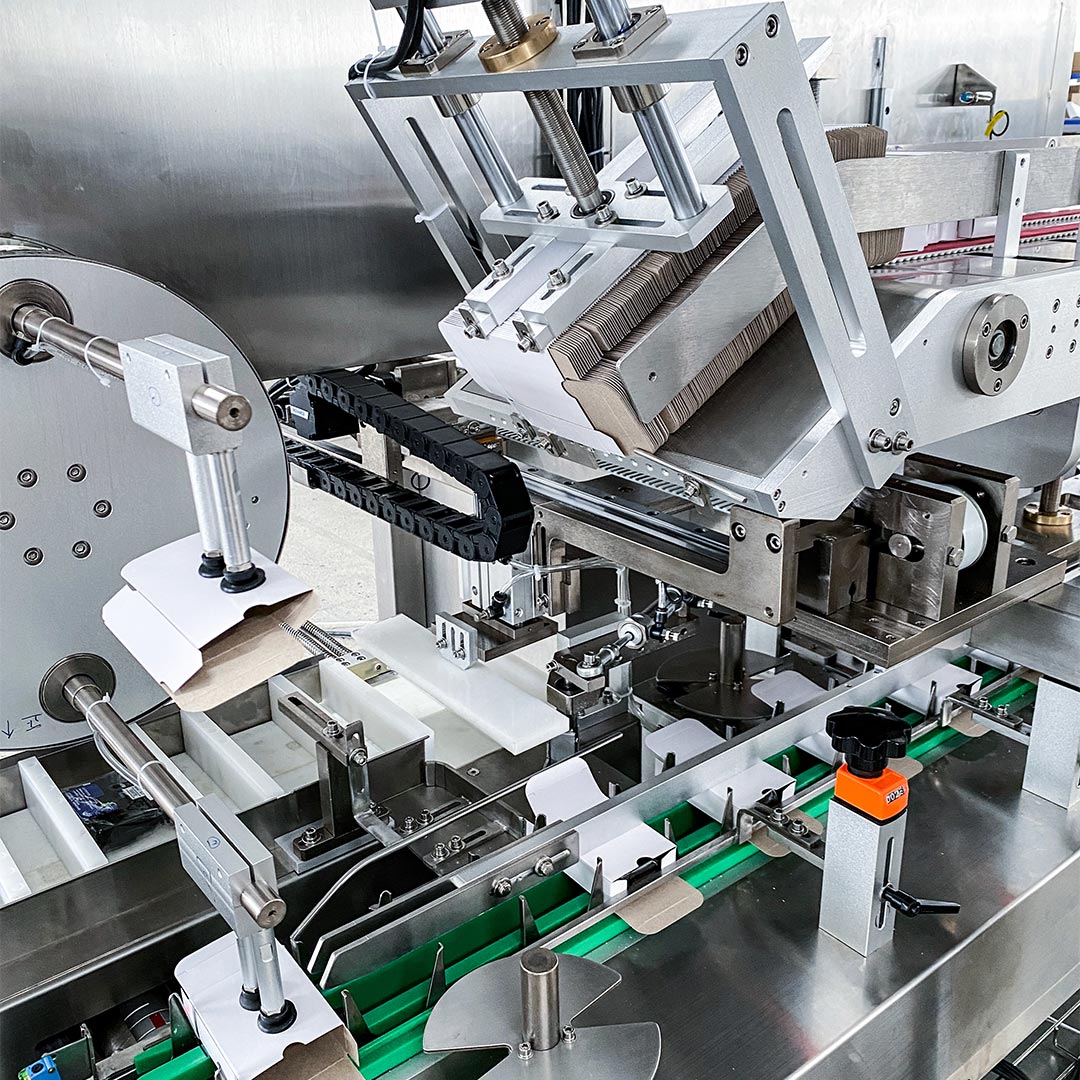

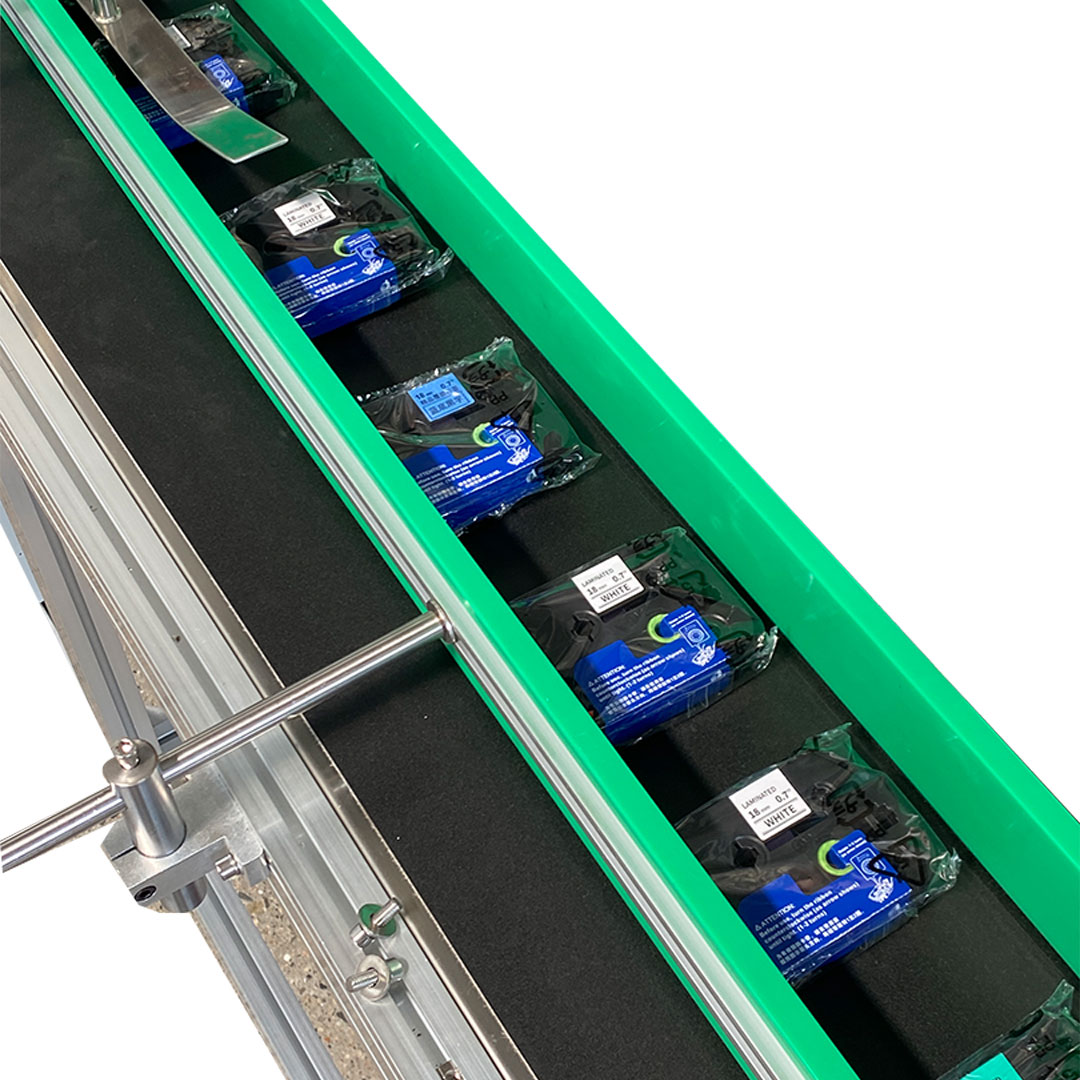

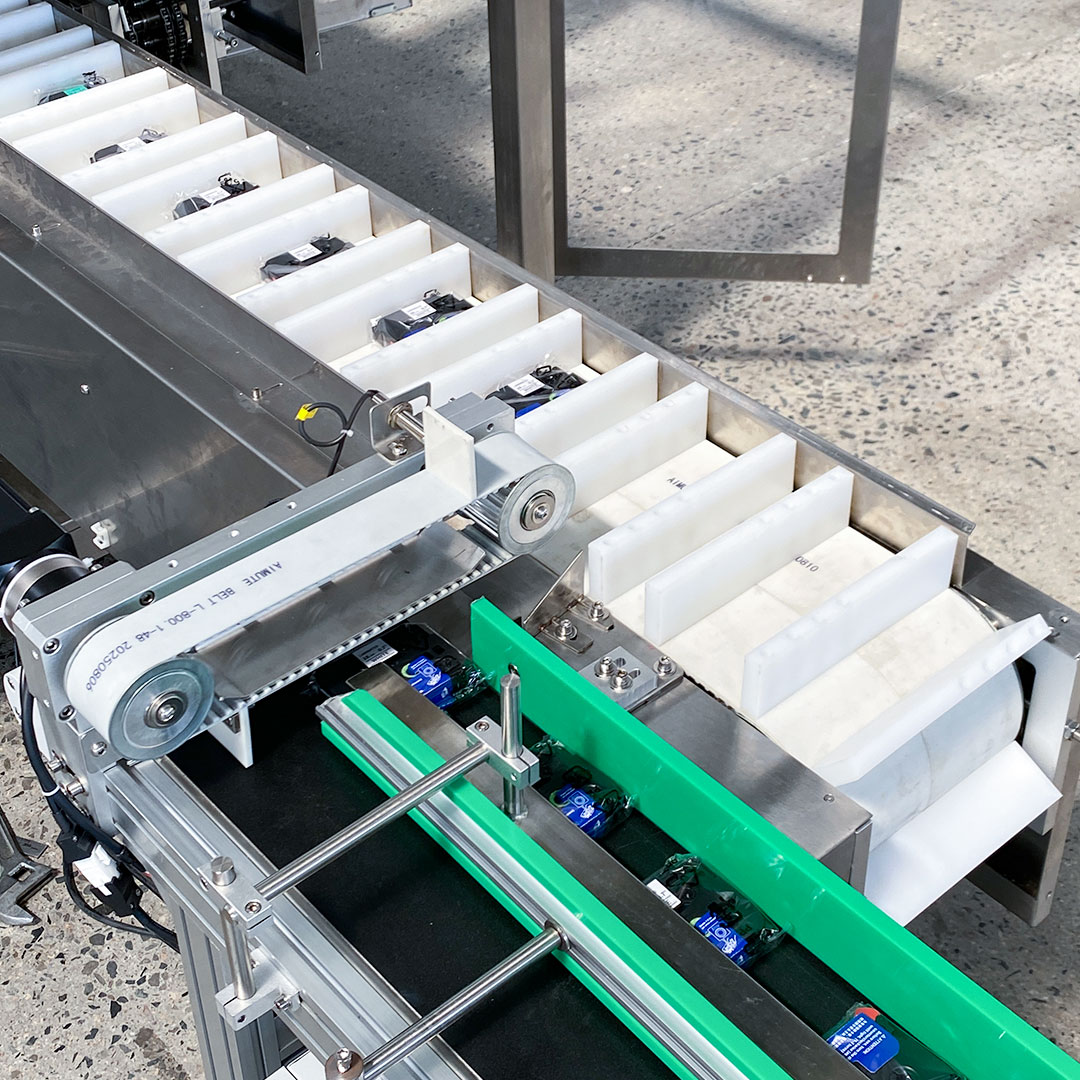

Functionality: Box opening, material feeding into boxes, box sealing, order monitoring, fault alerts, cloud connectivity.

Automatic servo drive adjustment system: Utilises high-precision servo motors to ensure smooth operation and precise positioning, enhancing packing efficiency and quality.

One-touch adjustment function: Touchscreen operation enables rapid switching between different box specifications, reducing manual adjustment time and improving changeover efficiency.

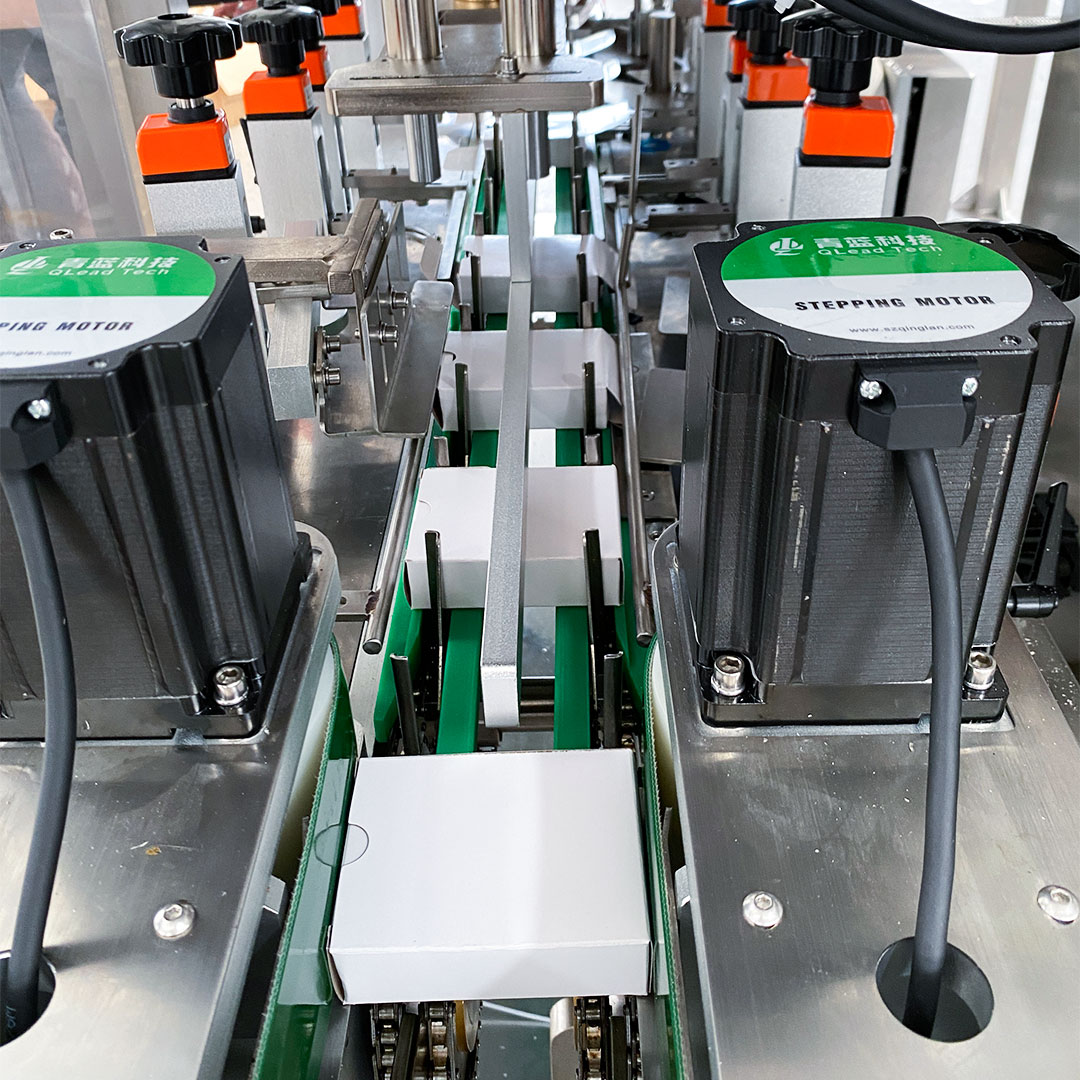

High Automation Level: Automatically completes processes including box opening, filling, folding, and sealing, minimising manual intervention.

Multi-Function Compatibility: Accommodates various box types (e.g., tuck-in boxes, adhesive-sealed boxes, snap-bottom boxes, and hang-tab boxes) and products of differing dimensions.

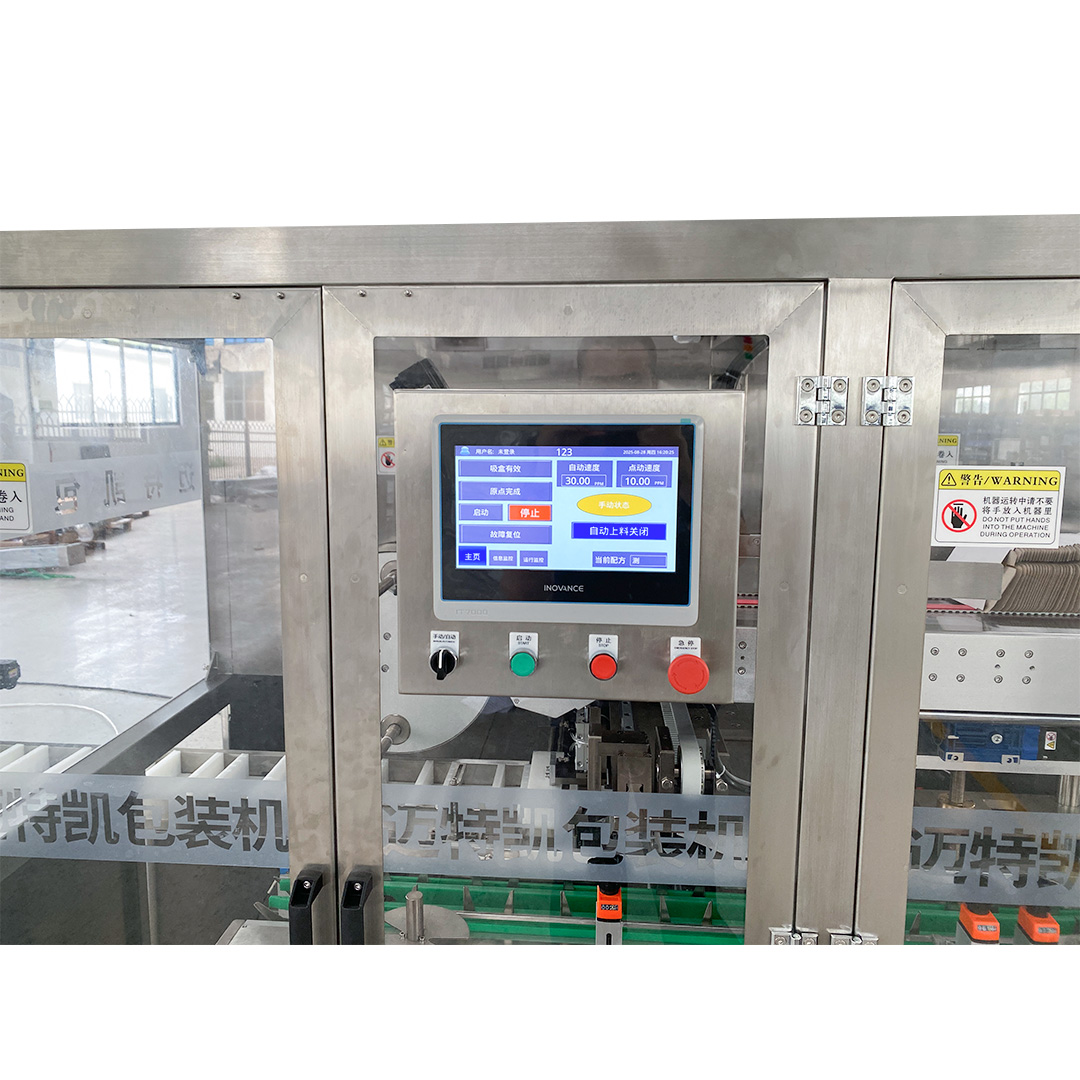

Human-Machine Interface: Equipped with a PLC control system and touchscreen, offering intuitive parameter settings and straightforward operation.

Technical Parameters

Model	MTK-150H
Max peoduction	50-60 boxes/minute Pcs/min
(L/W/H）Box range	L:100-240mm, W:100-150mm, H:20-60mm
Total power	11.8Kw
Input voltage	Single-phase 220V/50Hz Three-phase 380V/50Hz

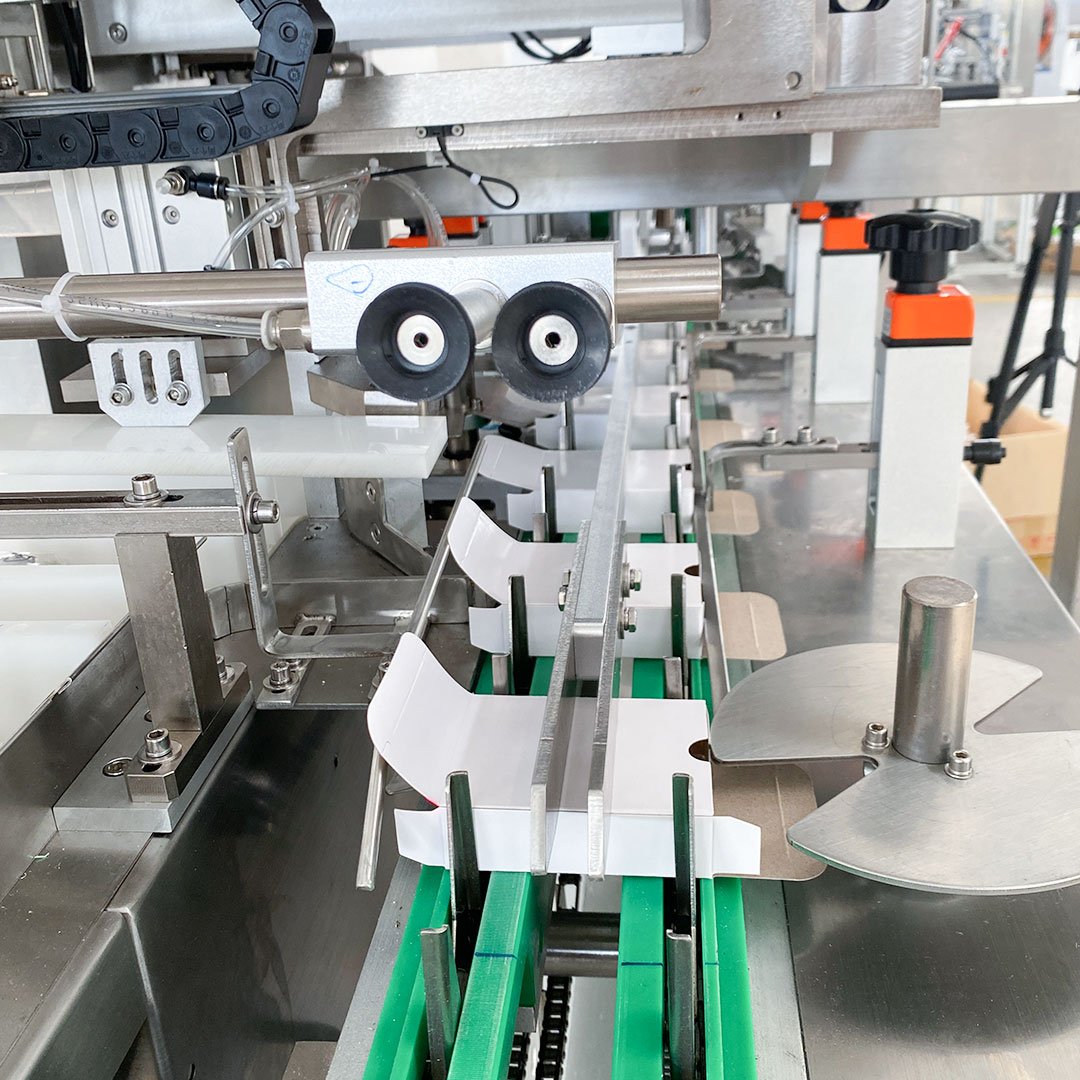

Sealing type	Double tongue insertion, tongue-locked base, spray adhesive
Air consumption	0.5-0.8m³/min
Gross weight	Approx. 1 tonne total weight
Dimension	370014001750mm

Applications

It is suitable for paper box packaging in various fields such as food, medicine, medical equipment, electronic products, hardware accessories, automotive accessories, cosmetics, daily necessities, etc.
