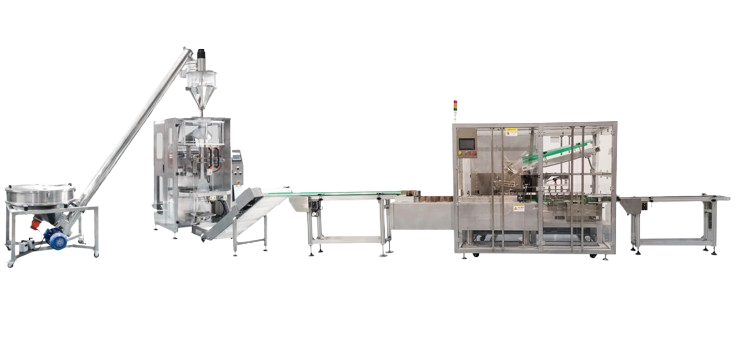

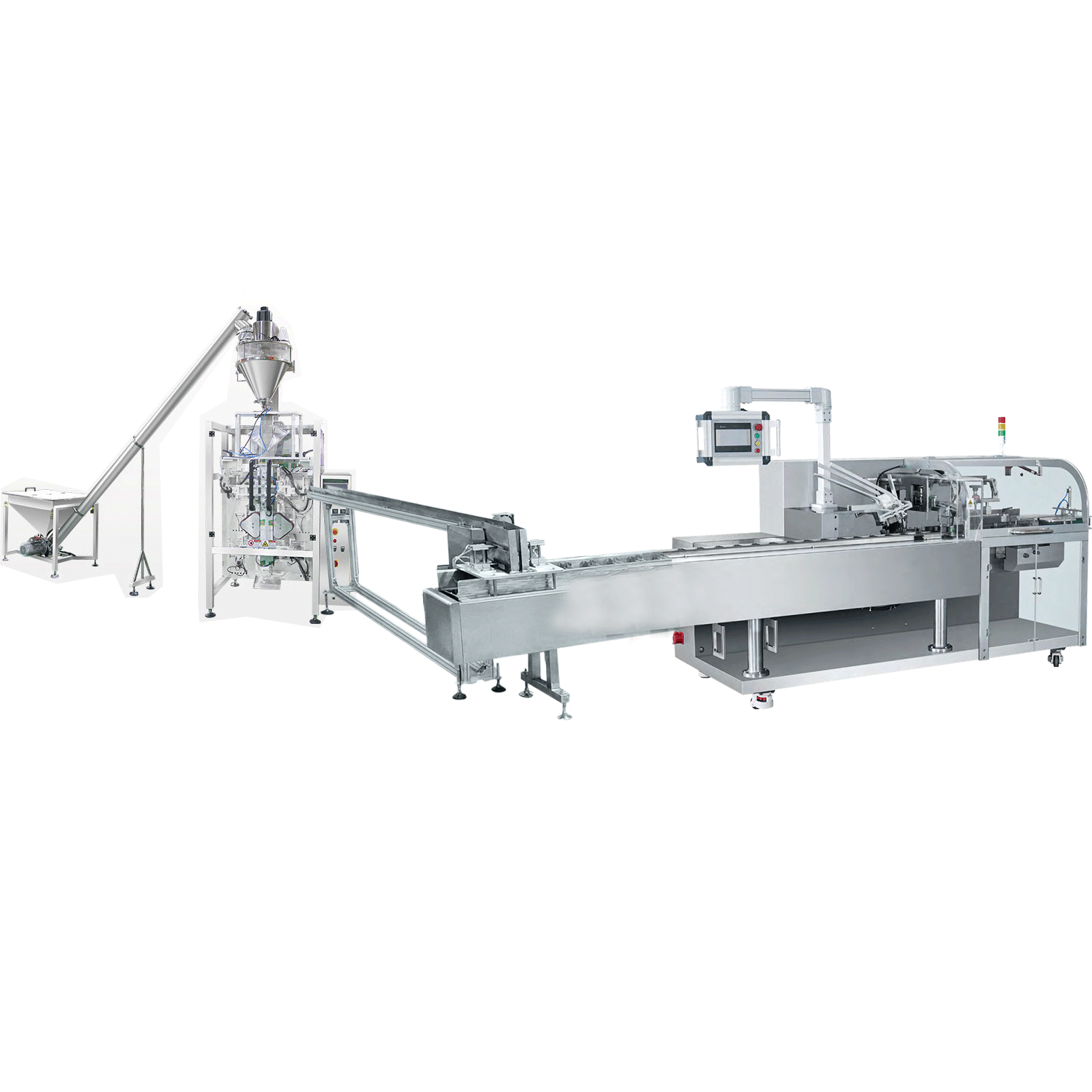

MTK-150SF Multi-row Packaging Machine + Cartoning Machine

Description

This packaging line features automatic product sorting, box loading, and sealing functions, and can be configured with labeling, inkjet coding, and case packing as required.

SHARE AS

REQUEST A QUOTE

Features

Wide Application
Suitable for packaging various powdered and granular products into bags and boxes, such as meal replacement powders, coffee, milk powder, solid beverages, and tea bags.

Packaging speed:
Packaging speed: 20-80 boxes per minute.

Technical Parameters

Model	MTK-150SF
Machine Model:	MTK-150SF Fully Automatic Cartoning Machine
Equipment Material:	Combination of 304 Stainless Steel and Carbon Steel
Drive Method:	Servo Motor (Cam-Lever Full-Machine Mode)
Mechanical Stations:	2 Stations (Magazine + Cartoning)
Feeding Method:	Transfer Manipulator
Box Opening Method:	Multi-Suction Head Rotary Box Opening
Pushing Method:	Continuous Dual-Rod Cam Feeding
Packaging Speed:	30-60 Boxes/Minute
Total Power:	5.8KW
Air Consumption:	20m²/h
Air Pressure:	0.5-0.7 MPa
Drive Power Supply:	AC380V Three-phase Four-wire / 220V 50Hz AC380V
Overall Dimensions:	3700x1400x1750mm (LxWxH)
Machine Weight:	Approx. 1200Kg

Applications

It is suitable for paper box packaging in various fields such as food, medicine, medical equipment, electronic products, hardware accessories, automotive accessories, cosmetics, daily necessities, etc.
