MTK-VC160 Vertical Candy Cartoning Machine

Description

Vertical automatic cartoning machine designed for bulk products such as candy, chocolate, biscuits, hardware parts, and screws. Integrated with elevator and multihead weigher for accurate weighing, automatic cartoning, and carton sealing.

SHARE AS

REQUEST A QUOTE

Features

Wide Application
Suitable for bulk candy, chocolate, biscuits, hardware parts, and small components.

Integrated Weighing System

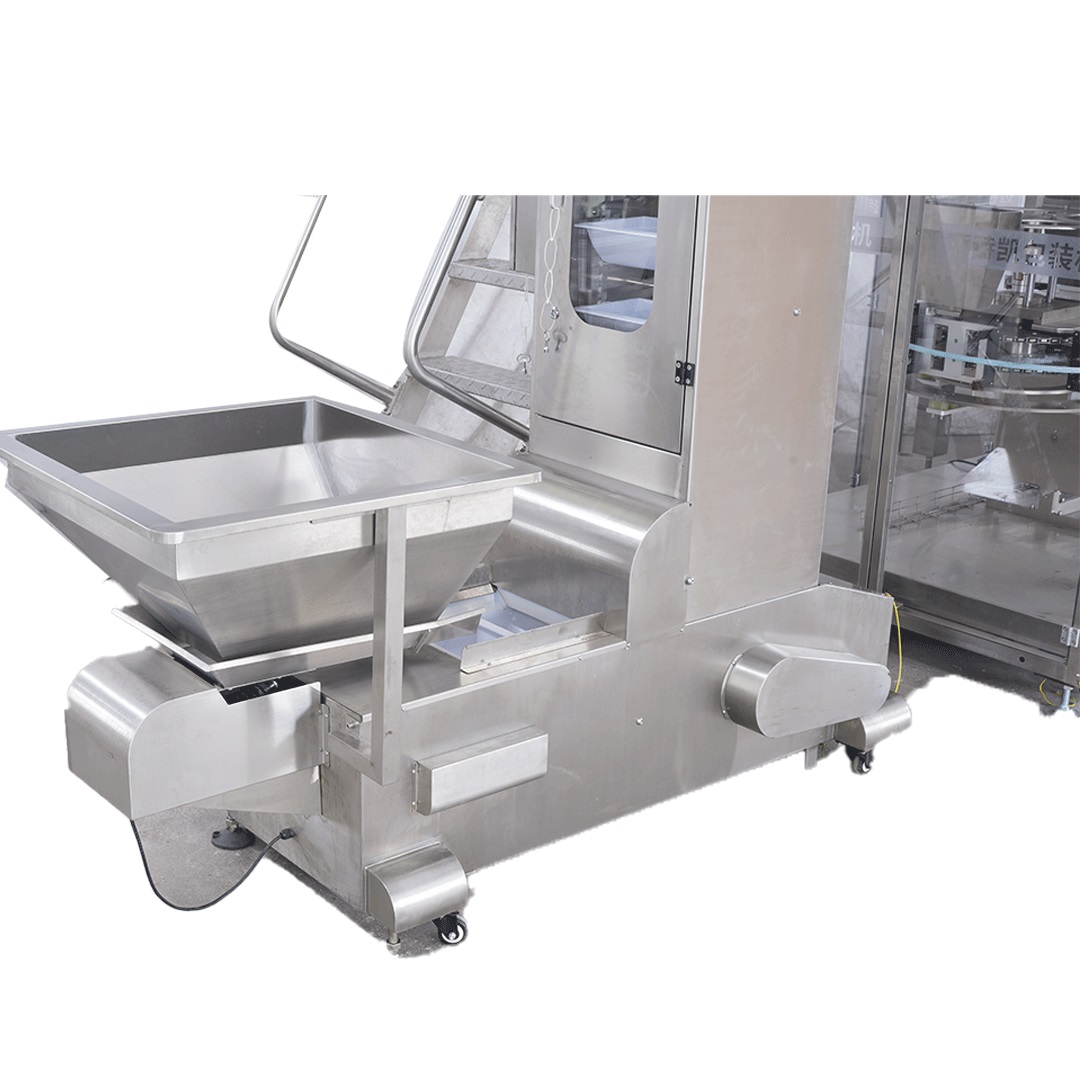

Equipped with elevator and multihead weigher for automatic weighing and feeding.

Stable Vertical Cartoning
Vertical structure ensures smooth product loading and consistent carton forming.

Flexible Capacity
Output speed: 20–50 cartons per minute, depending on product and carton size.

Customizable Design
Carton size and machine configuration can be customized to meet production needs.

Technical Parameters

Model	MTK-VC160
Production Capacity	20-60 boxes/minute
Carton Size Range (LxWxH) mm	(70-250) × (70-160) × (20-100) mm
Carton Paper Grade	250-400g/m² (Carton creasing depth typically 0.4mm; cartons require pre-folded edges)
Total Equipment Power	Approx. 3kW
Operating Voltage	AC380V three-phase four-wire / 220V 50Hz AC380V
Carton Sealing Method	Optional: Double tongue, snap-bottom tongue, glue spraying, etc.
Air Consumption	20m²/h (Pressure 0.5-0.7MPa)
Compressed Air	0.6MPa
Total Weight	Approx. 2000kg
Noise Level	Less than 85dB
Equipment Dimensions (LxWxH) mm	4200 × 1400 × 1650mm

Applications

It is suitable for paper box packaging in various fields such as food, medicine, medical equipment, electronic products, hardware accessories, automotive accessories, cosmetics, daily necessities, etc.
