Automatic Sorting and Cartoning Line with Centrifugal Turntable

Description

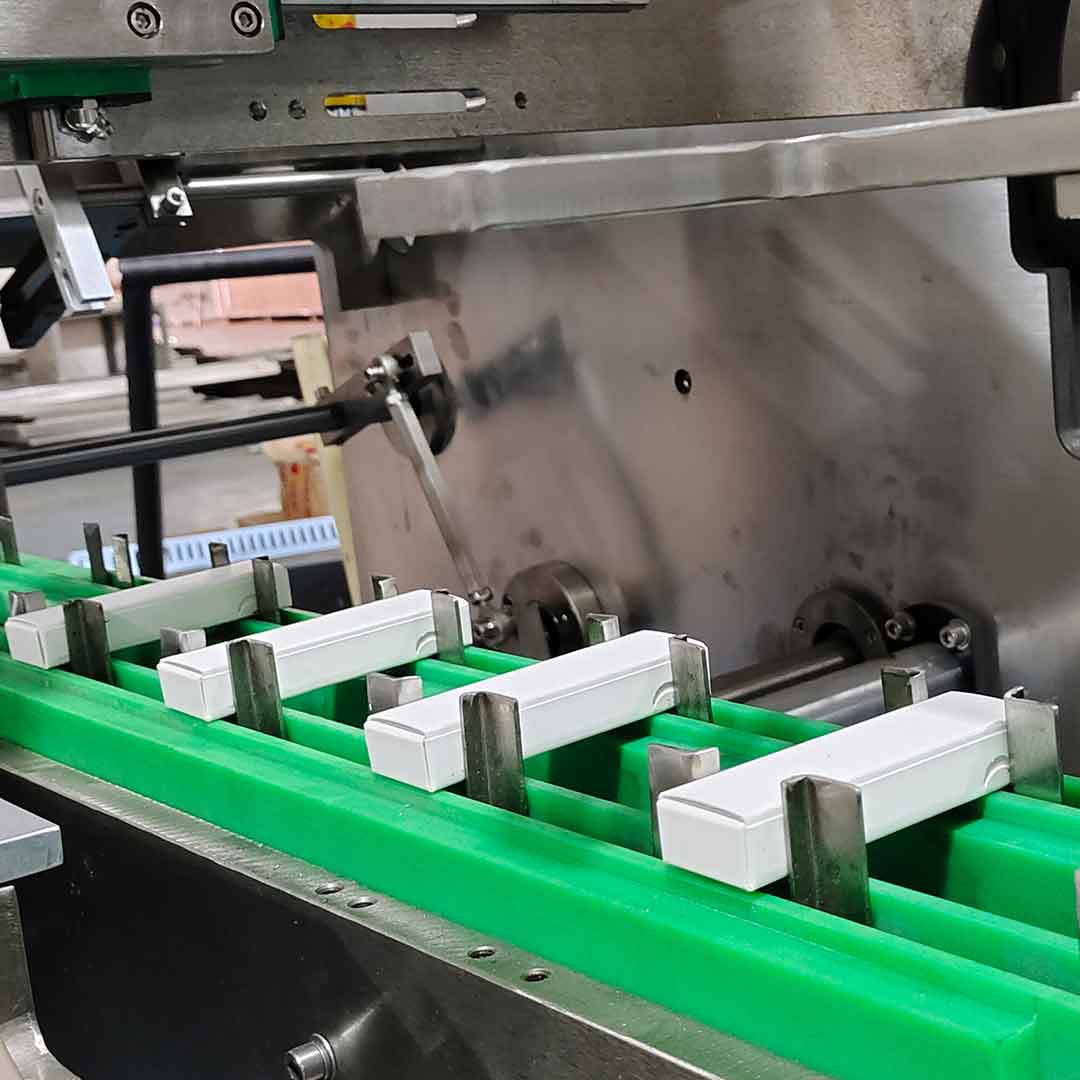

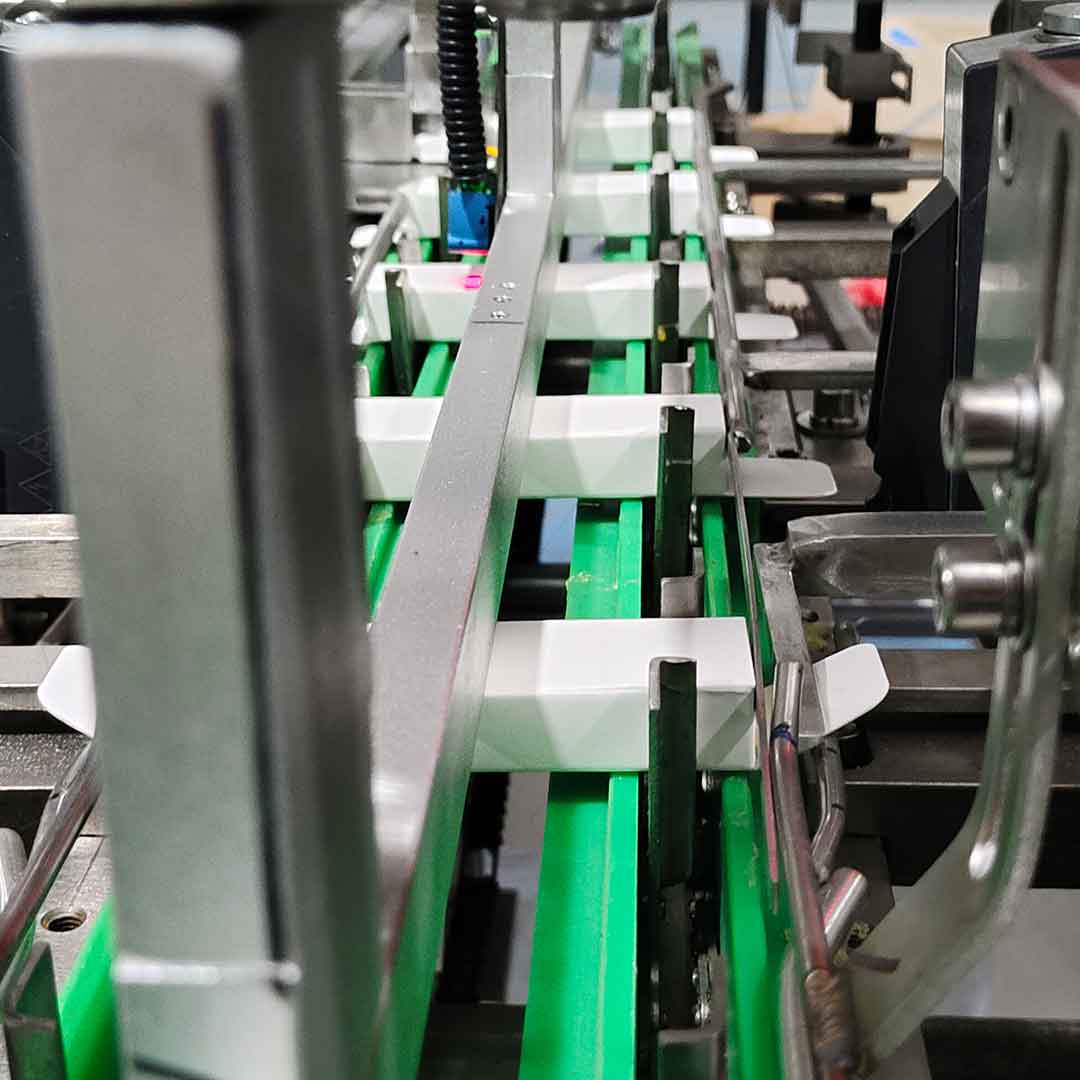

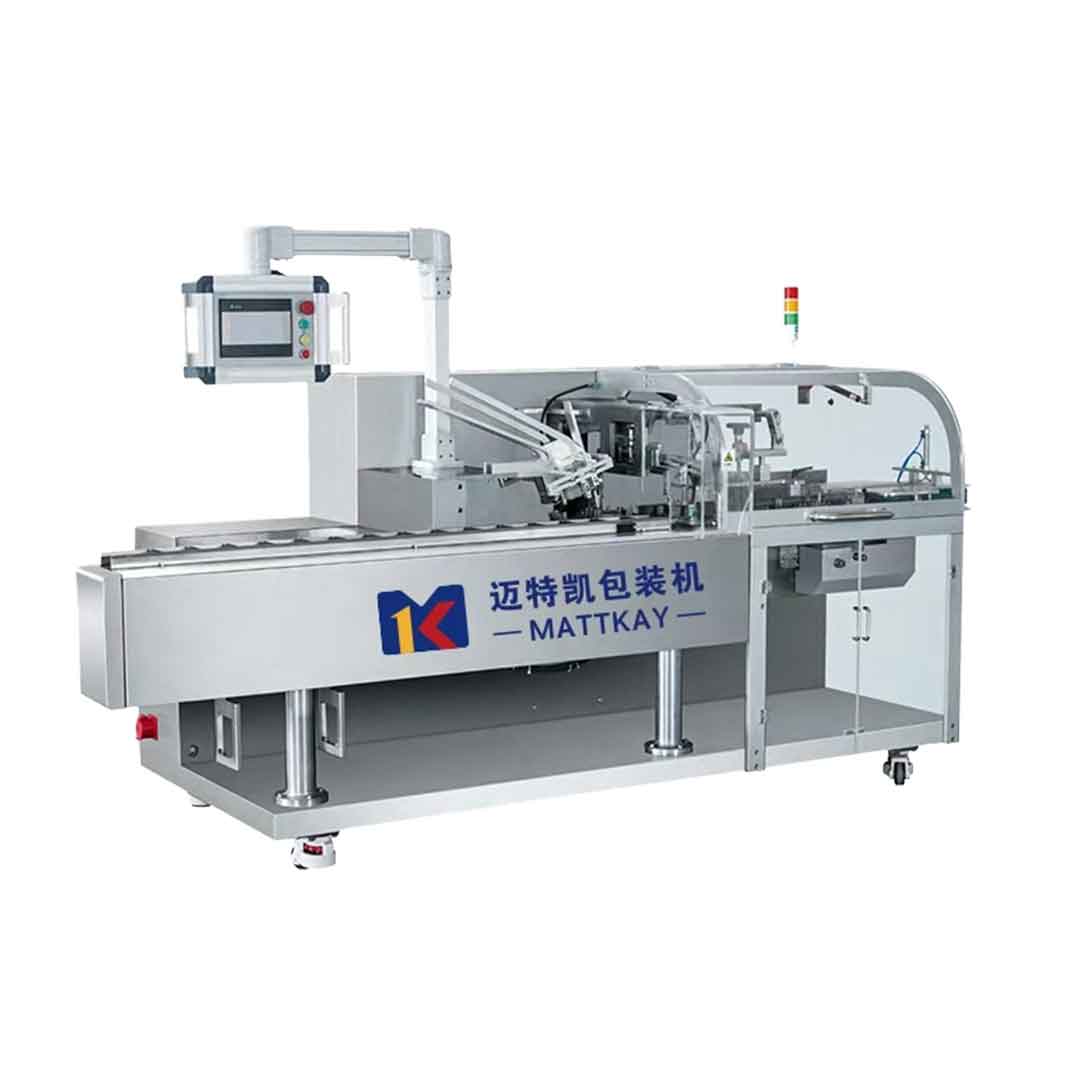

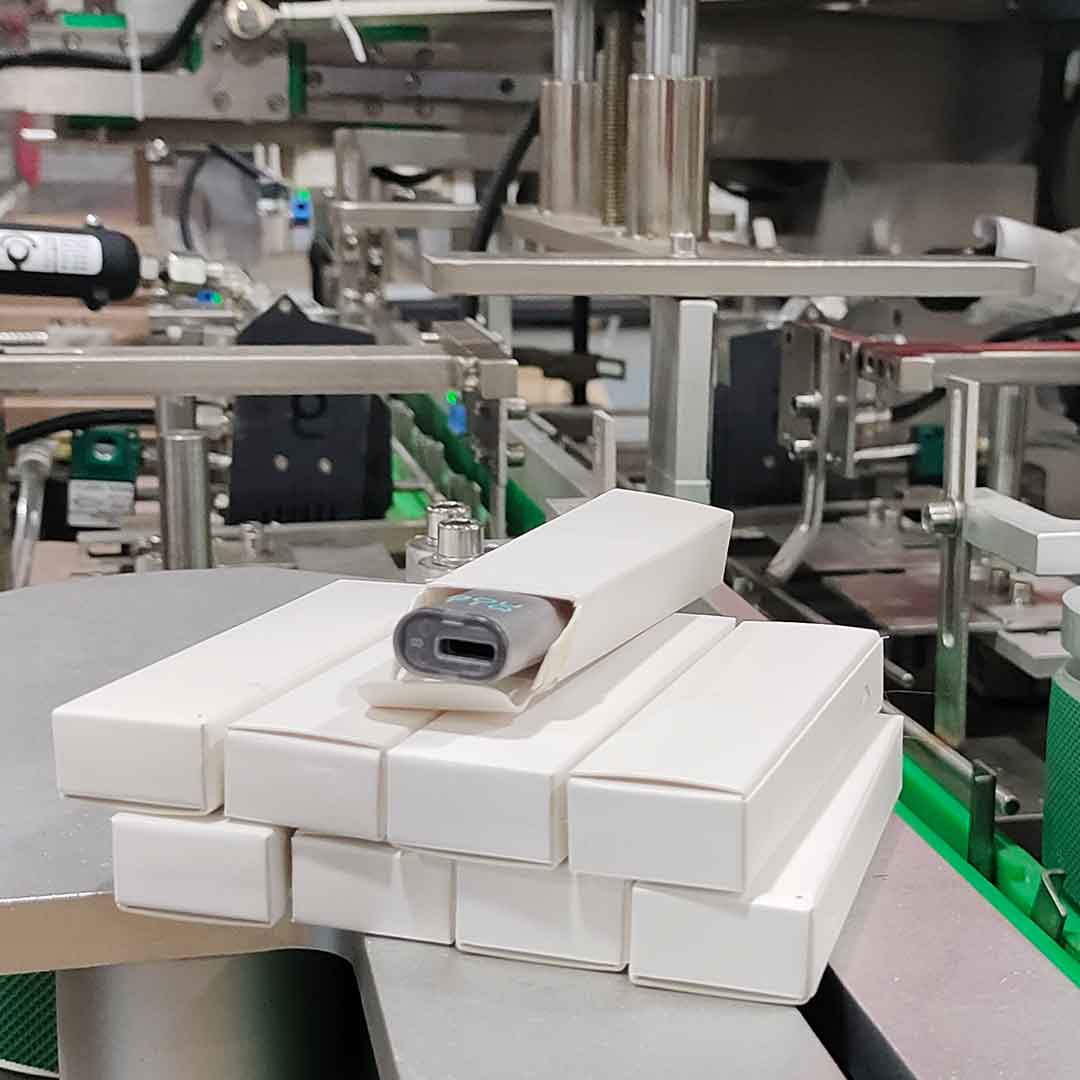

This carton packaging machine consists of a centrifugal turntable and an automatic cartoning machine, and is suitable for the automatic sorting and feeding of hardware products and various loose materials. The packaging speed ranges from 10 to 100 cartons per minute (adjustable to maintain a stable speed as needed). The cartoning machine’s guide slots, height, and width can be adjusted at any time to accommodate different carton sizes.

SHARE AS

REQUEST A QUOTE

Technical Parameters

Model	MTK-130A
Maximum Carton Dimensions (L x W x H) mm	220x145x100
Minimum Carton Dimensions (L x H) mm	100x80x20
Machine Dimensions (L x W) mm	2800x1550x1650
Packaging Speed	10–70 boxes per minute
Packaging Materials	300–400 g/m²
Air Consumption	20 m²/h (pressure 0.5–0.7 MPa)
Power Supply Specifications	220 V, 50/60 Hz or 380 V, three-phase, four-wire, 50 Hz
Power	Approx. 1.5 kW
Machine Weight	1,300 kg
Customized solutions available upon request. Please contact our customer service team for details.

Model	MTK-130B
Maximum Carton Dimensions (L x W x H) mm	220x165x100
Minimum Carton Dimensions (L x H) mm	100x80x20
Machine Dimensions (L x W) mm	2800x1550x1650
Packaging Speed	10–50 boxes per minute
Packaging Materials	300–400 g/m²
Air Consumption	20 m²/h (pressure 0.5–0.7 MPa)
Power Supply Specifications	220 V, 50/60 Hz or 380 V, three-phase, four-wire, 50 Hz
Power	Approx. 1.5 kW
Machine Weight	1,300 kg
Customized solutions available upon request. Please contact our customer service team for details.

Model	MTK-130c
Maximum Carton Dimensions (L x W x H) mm	220x165x100
Minimum Carton Dimensions (L x H) mm	100x80x20
Machine Dimensions (L x W) mm	3300x1350x1700
Packaging Speed	10–50 boxes per minute
Packaging Materials	300–400 g/m²
Air Consumption	20 m²/h (pressure 0.5–0.7 MPa)
Power Supply Specifications	220 V, 50/60 Hz or 380 V, three-phase, four-wire, 50 Hz
Power	Approx. 1.5 kW
Machine Weight	1,450 kg
Customized solutions available upon request. Please contact our customer service team for details.

Applications

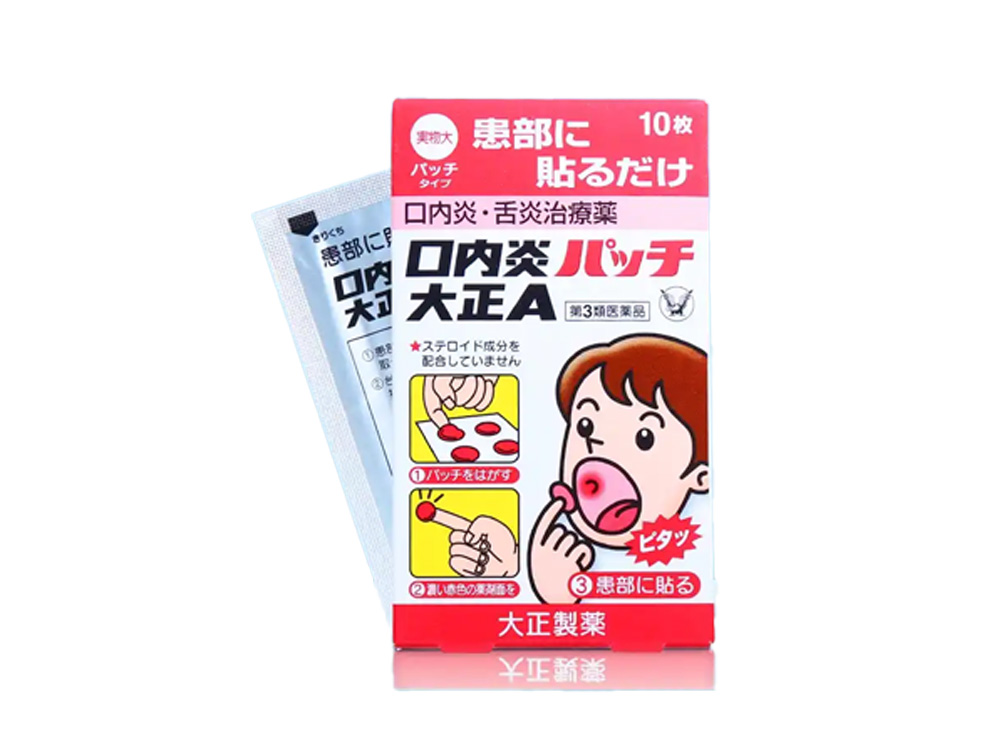

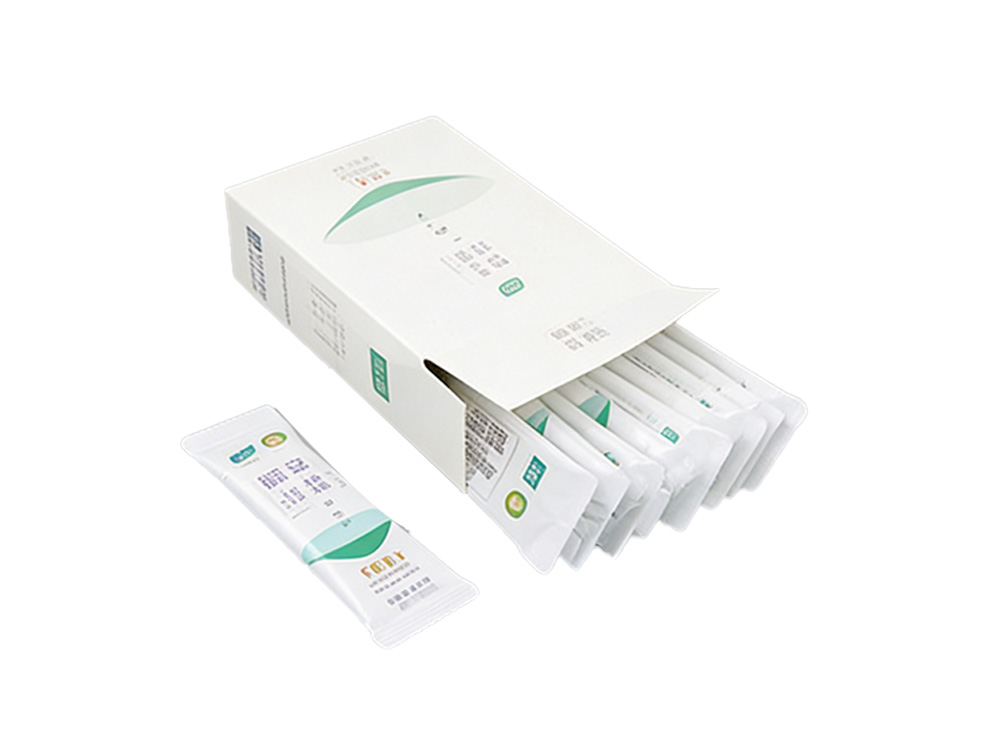

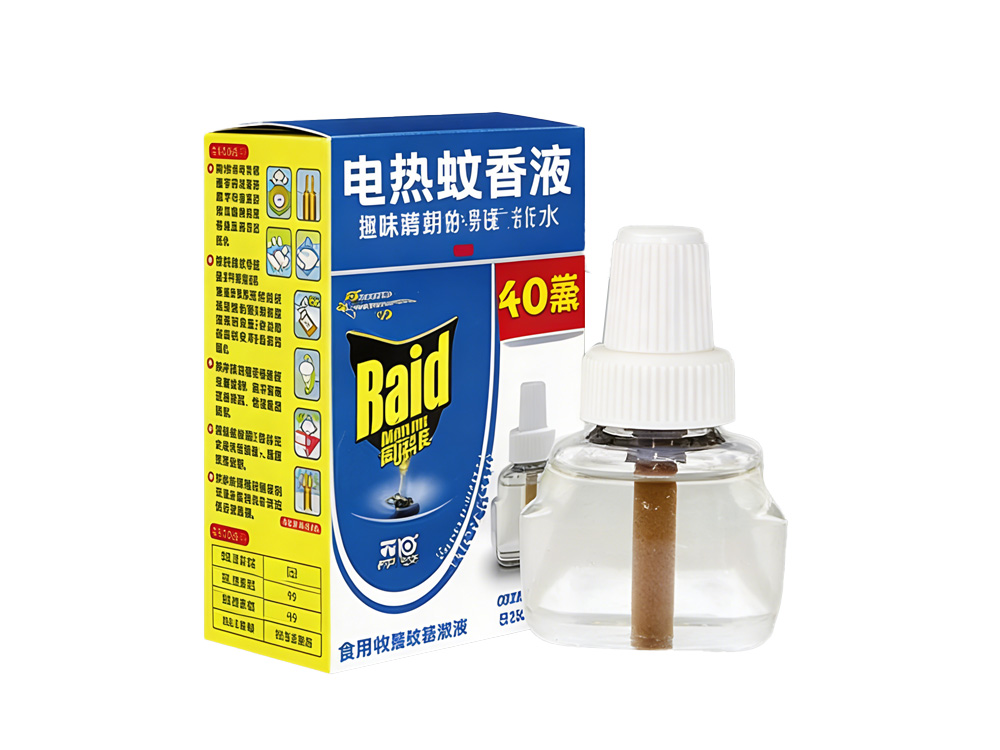

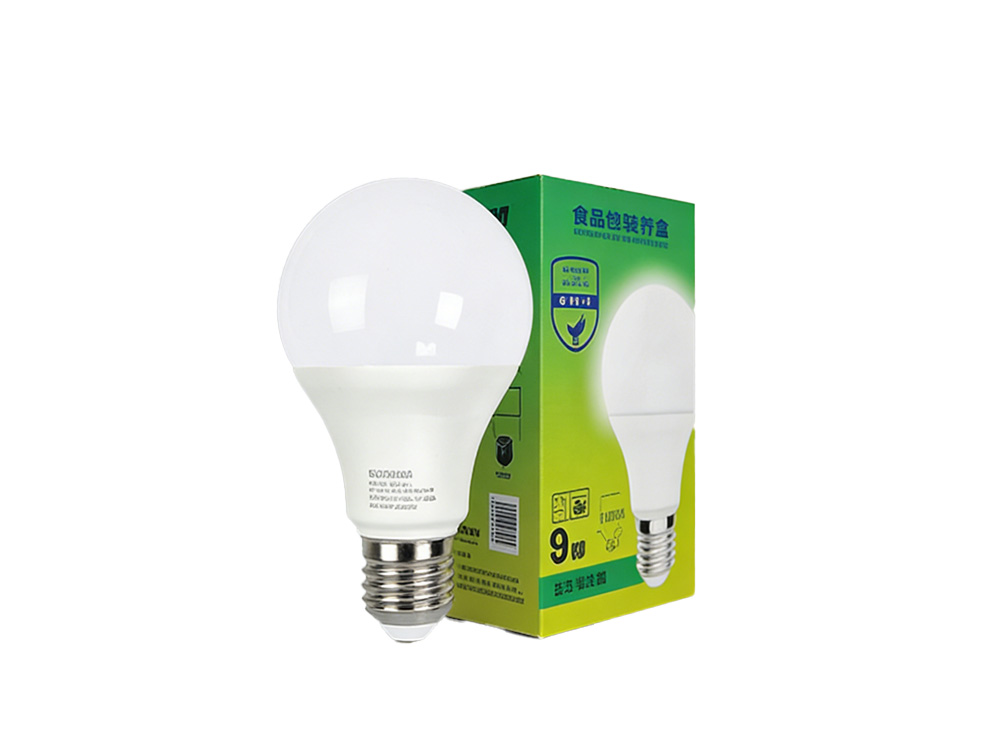

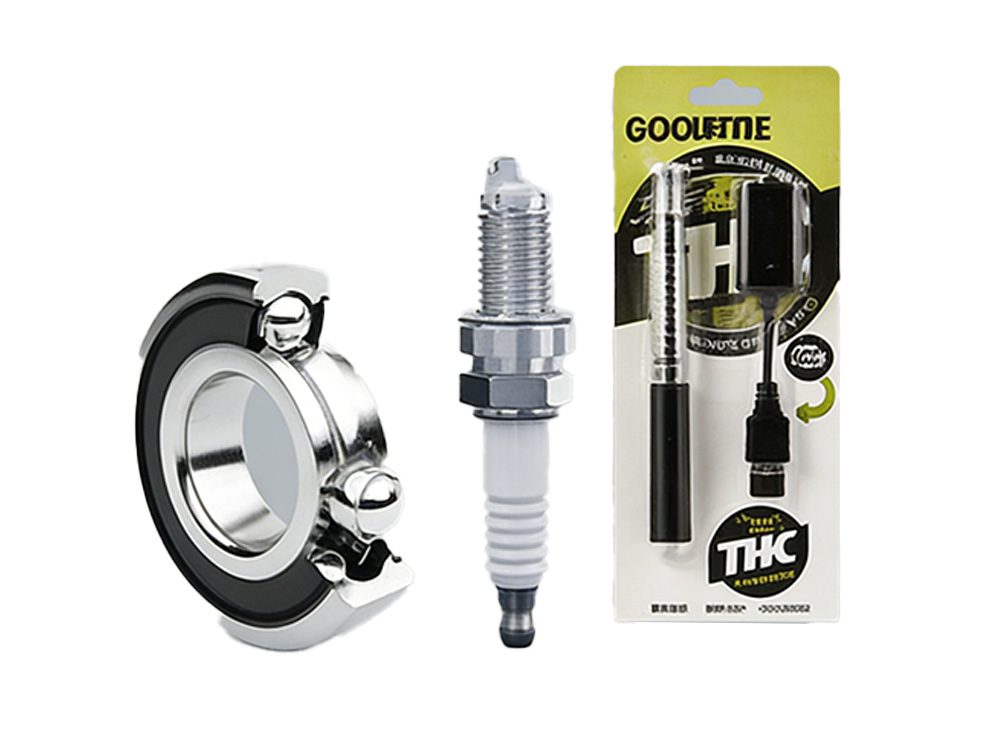

It is suitable for paper box packaging in various fields such as food, medicine, medical equipment, electronic products, hardware accessories, automotive accessories, cosmetics, daily necessities, etc.
