Name: MTK-150SF/MTK-190SF Automatic Bottle Lining Tape Application and Cartoning Machine
Brand: Mattkay
SKU: MTK-150SF/MTK-190SF

MTK-150SF/MTK-190SF Automatic Bottle Lining Tape Application and Cartoning Machine

Description

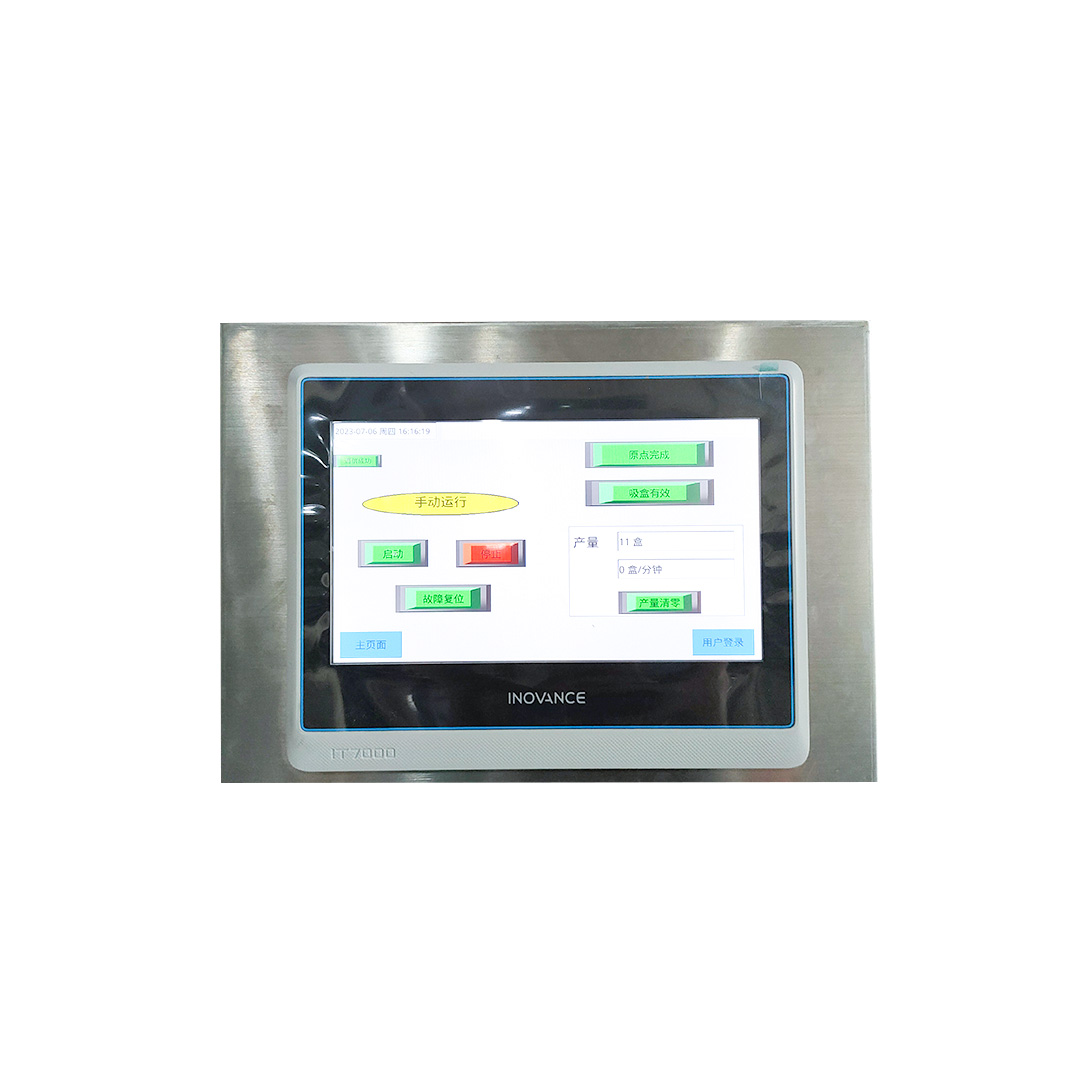

The entire line operates at a stable speed of 40 boxes per minute (adjustable between 10-80 boxes/minute based on user requirements). It features automatic instruction leaflet insertion, automatic inner liner folding, automatic box opening, automatic product loading, and automatic box sealing. The control screen automatically displays the packing speed, total operating time, and total number of boxes packed. The control screen also shows low material, material shortage, and overload warning indicators with alarms, alerting operators to specific equipment malfunctions.

SHARE AS

REQUEST A QUOTE

Features

There are two types of horizontal automatic cartoning machines: box insertion type and glue spraying type.

Users can choose according to the sealing method of the product.

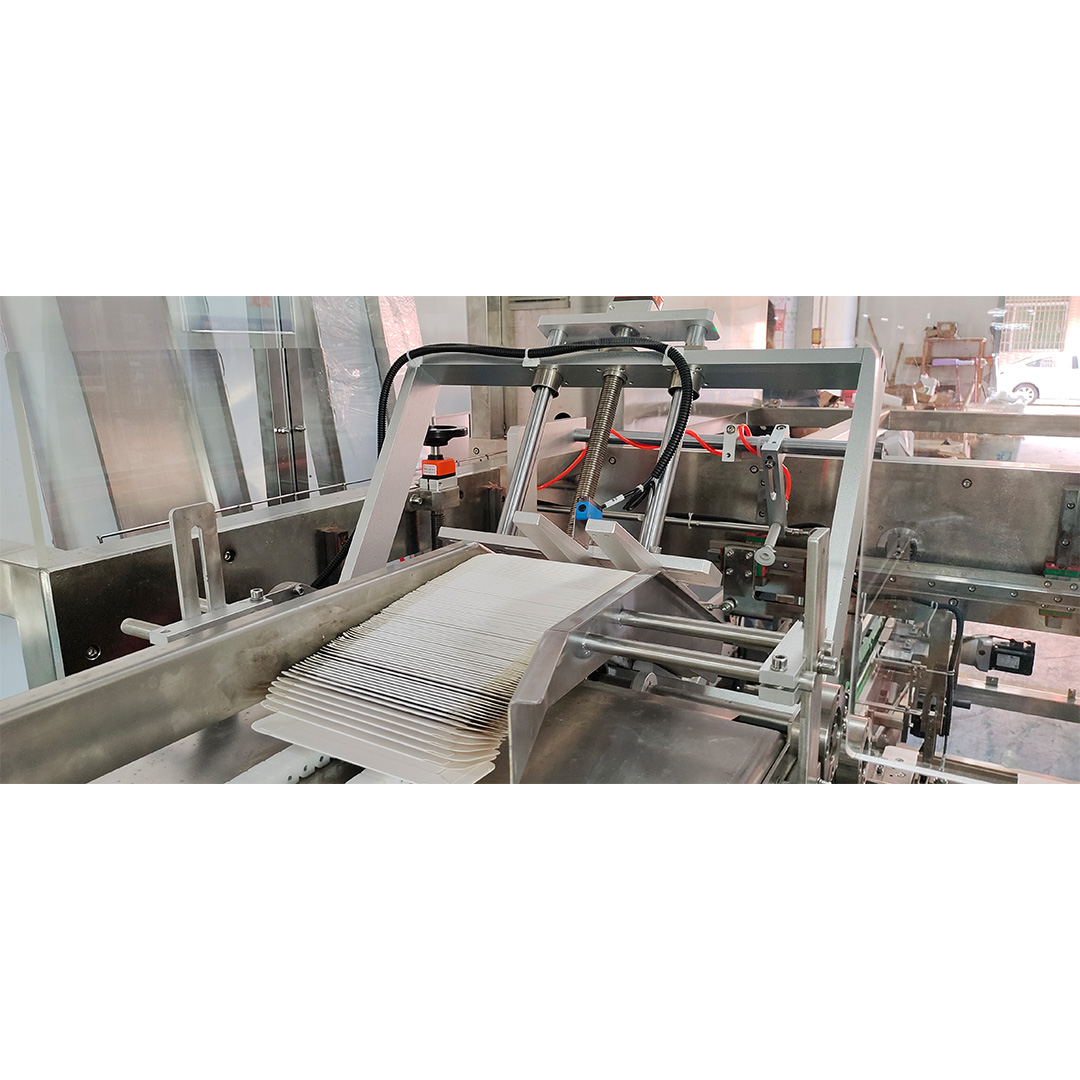

The machine adopts a flat pushing method to feed materials. The packaging speed is within 10-80 boxes/minute, and the stable speed can be set according to product requirements; it has functions such as automatic box opening, box loading, and box sealing, and can also be equipped with automatic material sorting lines, labeling machines, case packing machines, etc. according to needs; it has strong compatibility, and the paper box can be adjusted freely within 50*25*15mm~300*300*260mm, which is easy to operate.

Technical Parameters

Model	MTK-150SF
Production Capacity	50-80 boxes/minute
Carton Size Range (LxWxH) mm	(70-240) X (80-160) X (20-90)
Carton Paper Grade	250-400g/m² (Carton creasing depth typically 0.4mm; cartons require pre-folded edges)
Total Equipment Power	6.5KW
Operating Voltage	AC380V Three-phase four-wire/220V 50Hz AC380V
Carton Sealing Method	Optional: Double tongue, snap-bottom tongue, glue spraying, etc.
Air Consumption	20m²/h (Pressure 0.5-0.7MPa)
Compressed Air	≥0.6MPa
Total Weight	Approx. 1200kg
Noise Level	Less than 85dB
Equipment Dimensions (LxWxH) mm	3700X1400X1750mm

Model	MTK-190SF
Production Capacity	40-60 boxes/minute
Carton Size Range (LxWxH) mm	(100-300) x (100-190) x (20-100)
Carton Paper Grade	250-400 g/m² (Carton creasing depth typically 0.4 mm; cartons require pre-folded edges)
Total Equipment Power	8 kW
Operating Voltage	AC 380V three-phase four-wire / 220V 50Hz AC 380V
Carton Sealing Method	Optional: Double tongue, snap-bottom tongue, glue spraying, etc.
Air Consumption	20m²/h (Pressure 0.5-0.7MPa)
Compressed Air	≥0.6MPa
Total Weight	Approx. 1350kg
Noise Level	Less than 85dB
Equipment Dimensions (LxWxH) mm	3700X1400X1750mm

Applications

It is suitable for paper box packaging in various fields such as food, medicine, medical equipment, electronic products, hardware accessories, automotive accessories, cosmetics, daily necessities, etc.
