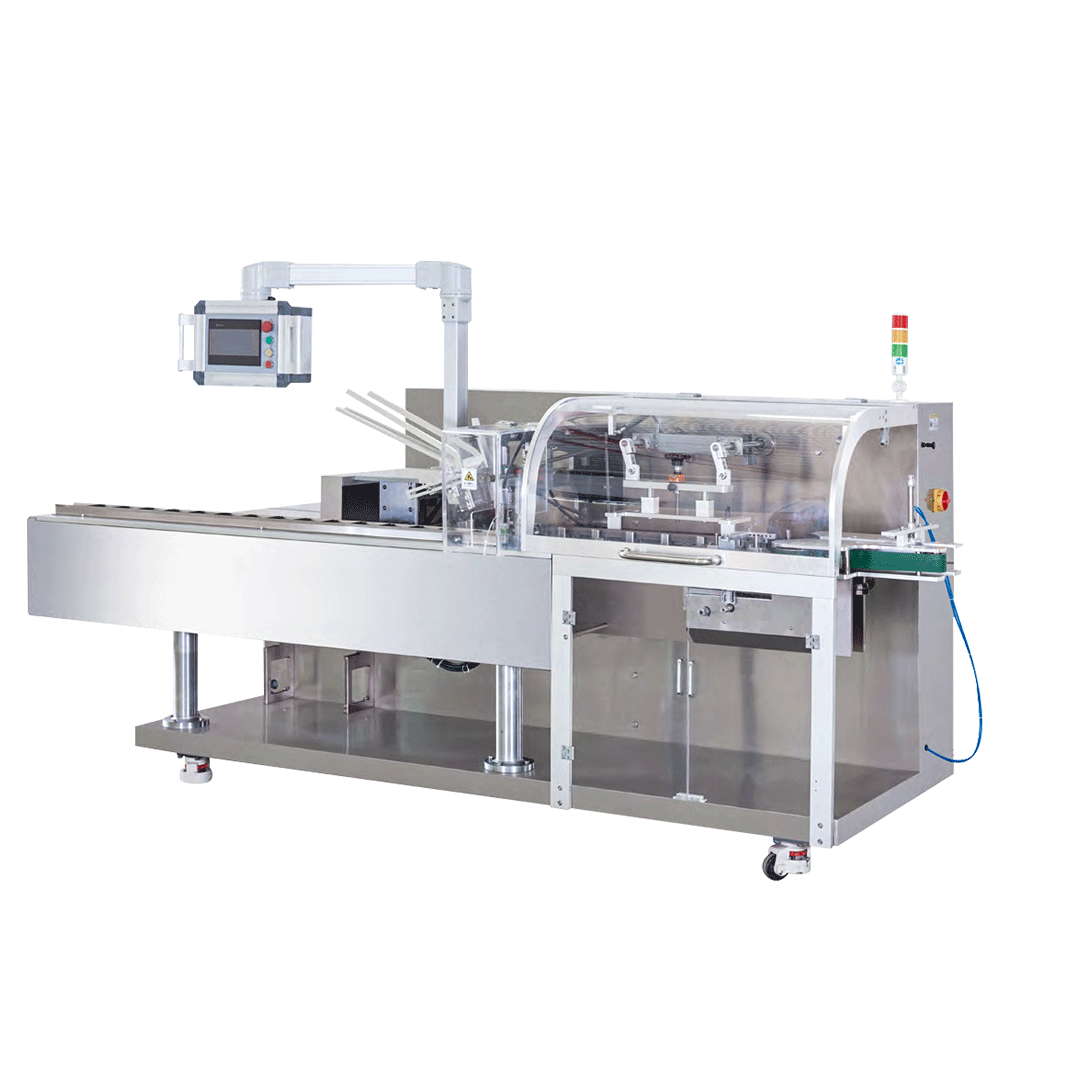

Mobile Phone Screen Protector Packaging Machine

Description

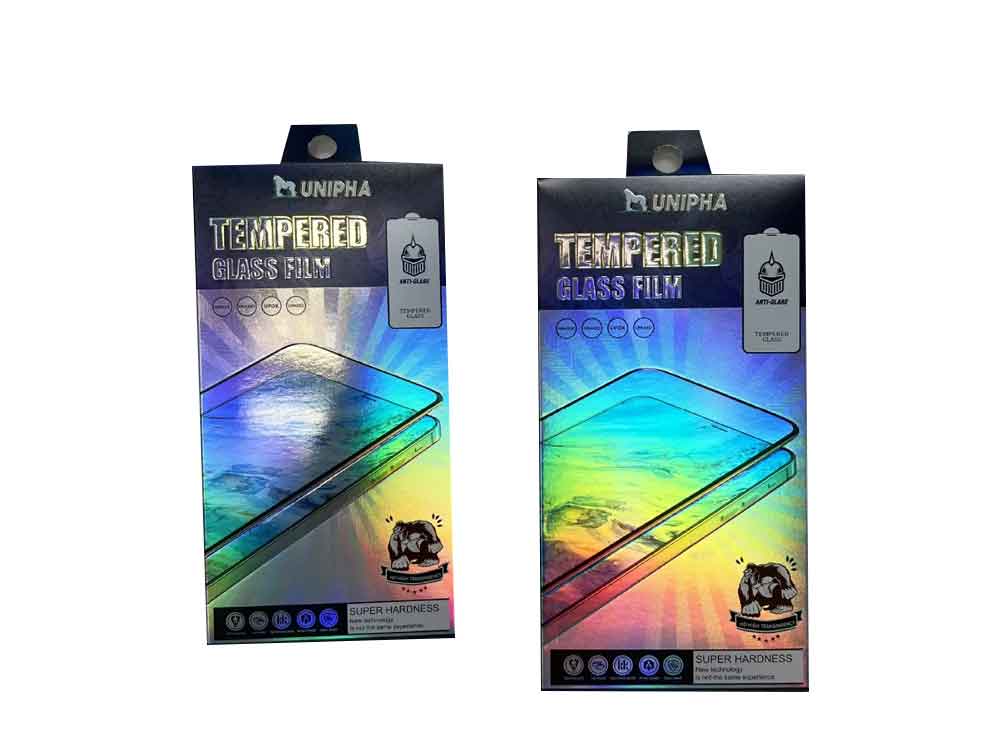

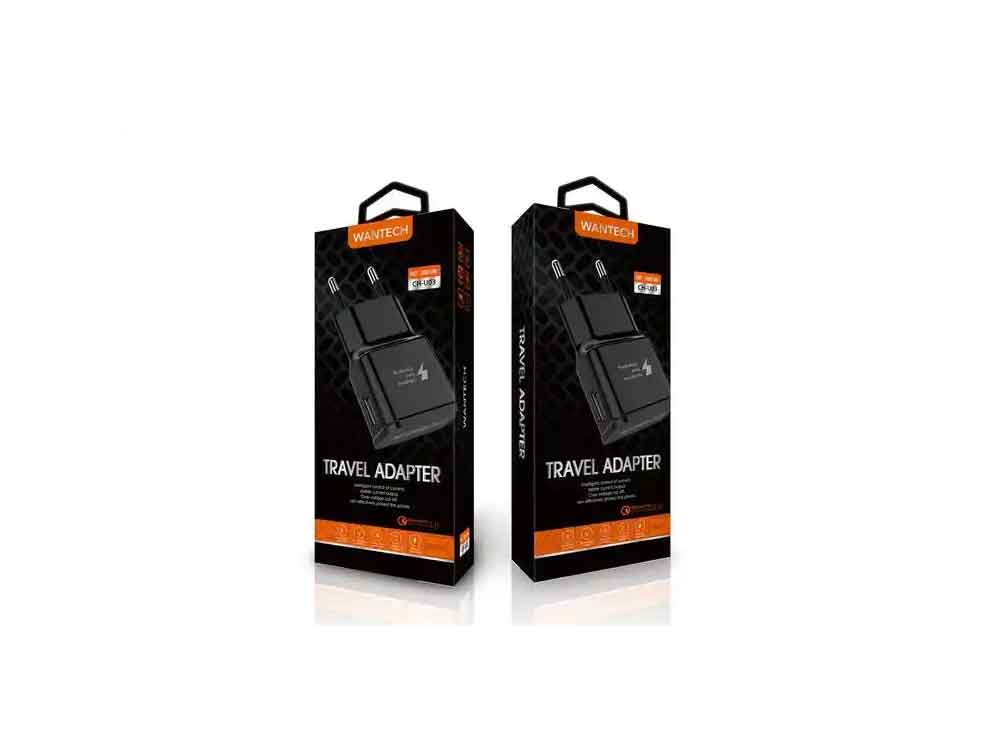

This mobile phone card packaging machine is suitable for packaging white cardstock, corrugated cardboard, color boxes, laminated boxes, plastic boxes, and boxes with hanging tabs. It is widely used for various mobile phone screen protectors, chargers, and charging cables, and can accommodate both tray-mounted and tray-less materials. The packaging speed ranges from 20 to 60 boxes per minute, and a stable speed can be set according to actual product requirements. The machine is compatible with multiple box sizes, with a minimum box height of 12 mm.

SHARE AS

REQUEST A QUOTE

Features

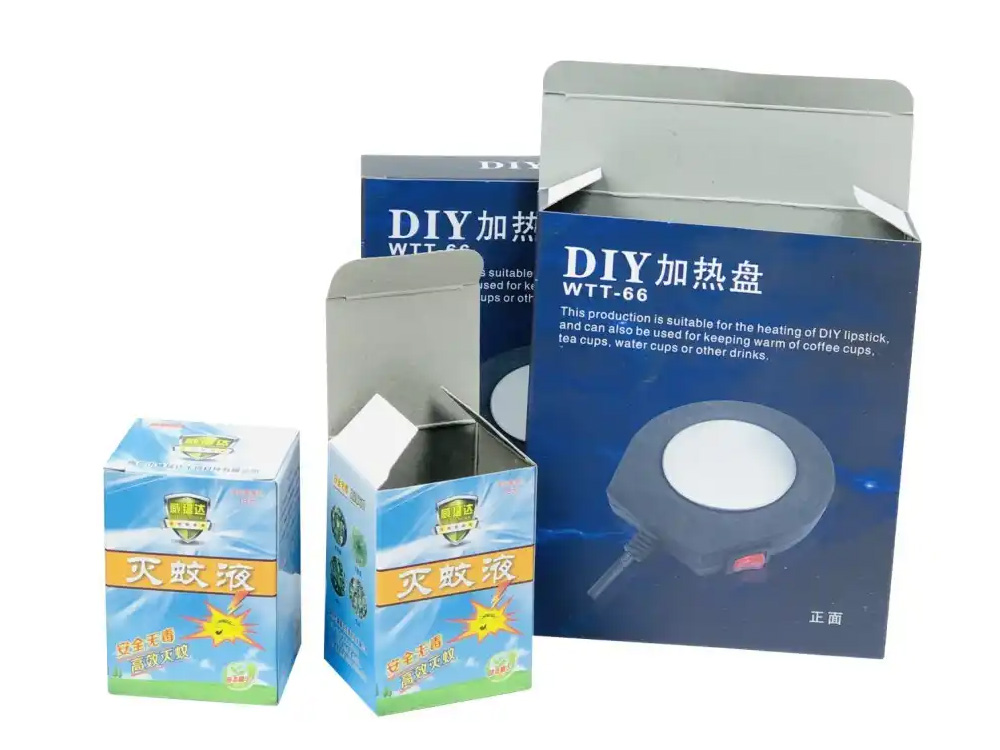

There are two types of horizontal automatic cartoning machines: box insertion type and glue spraying type.

Users can choose according to the sealing method of the product.

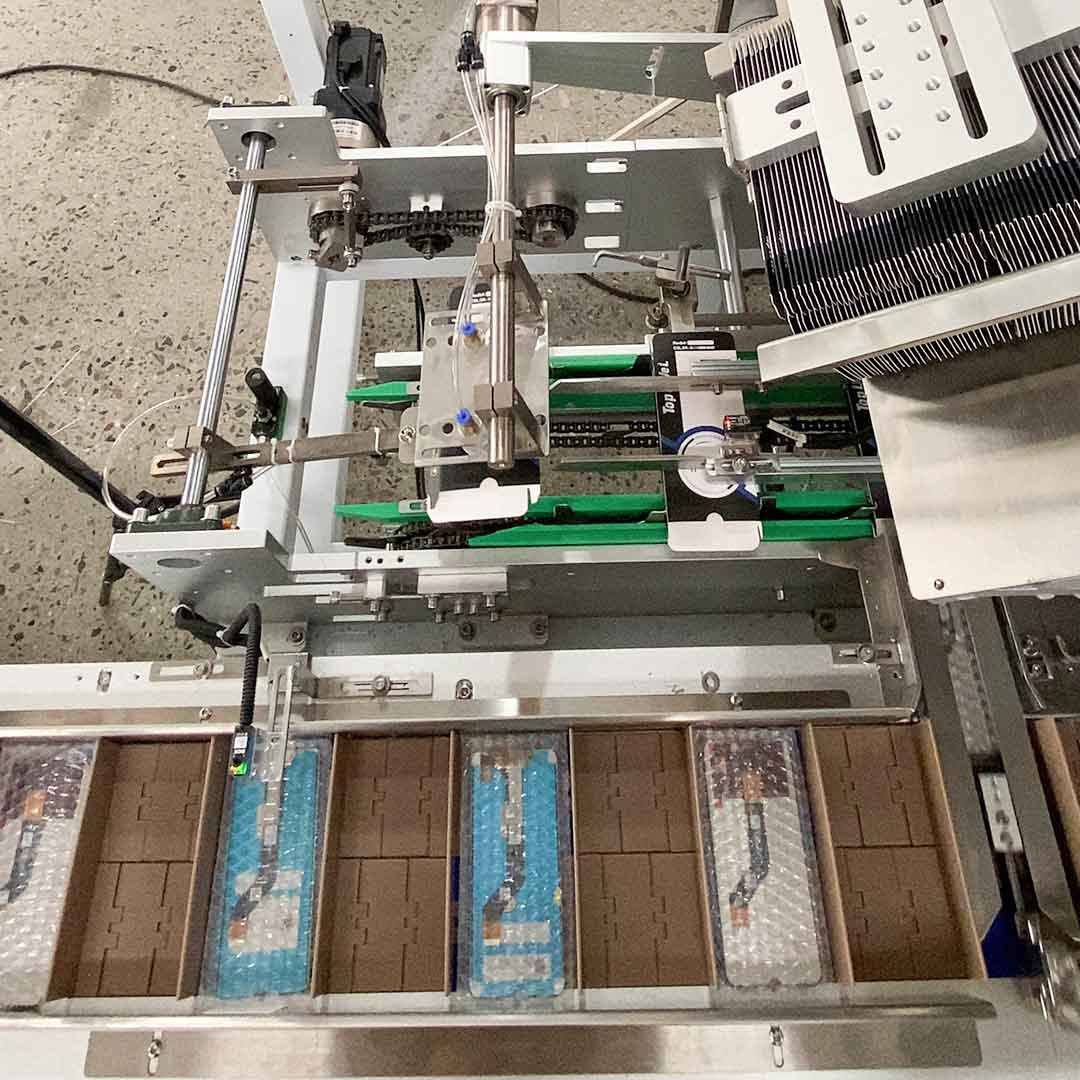

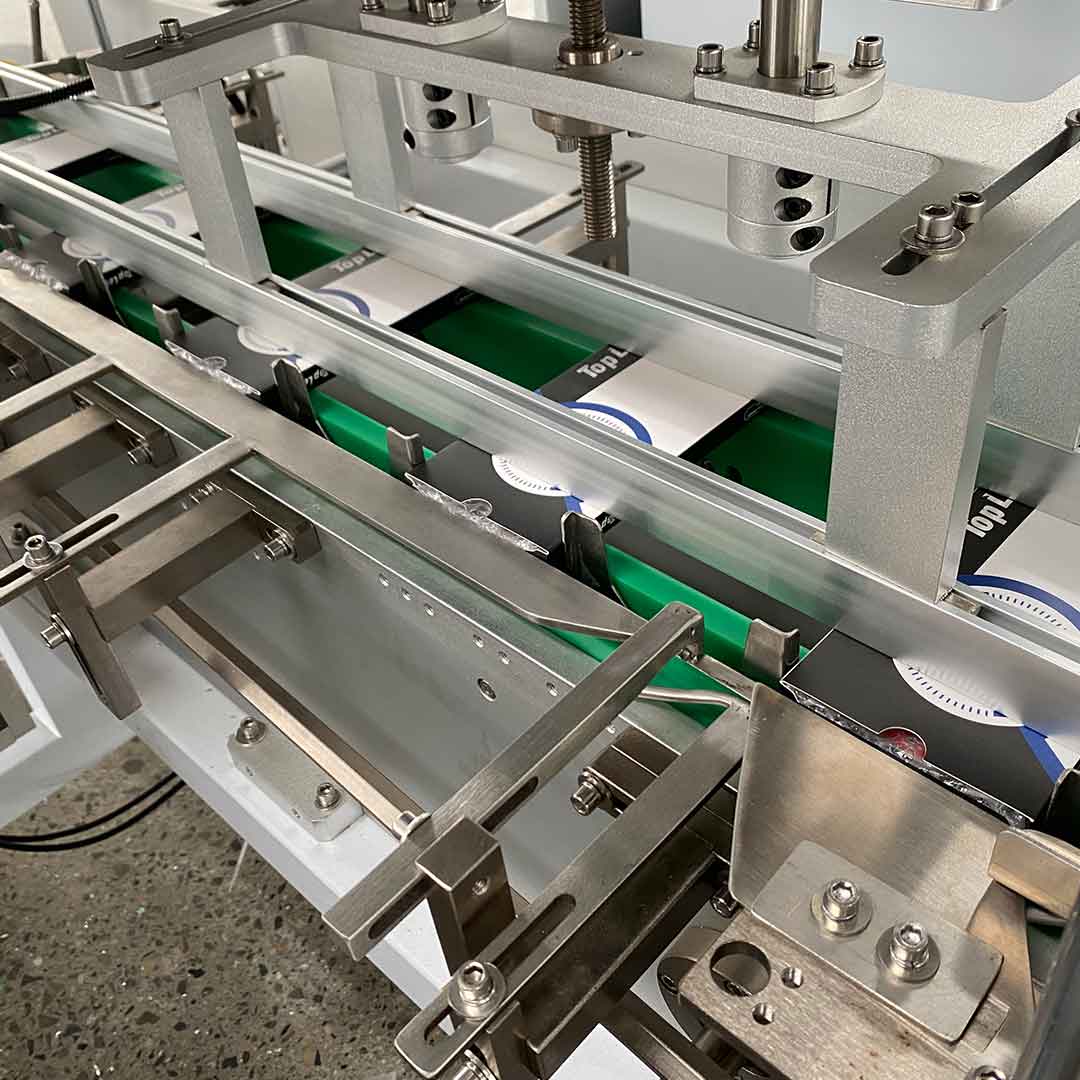

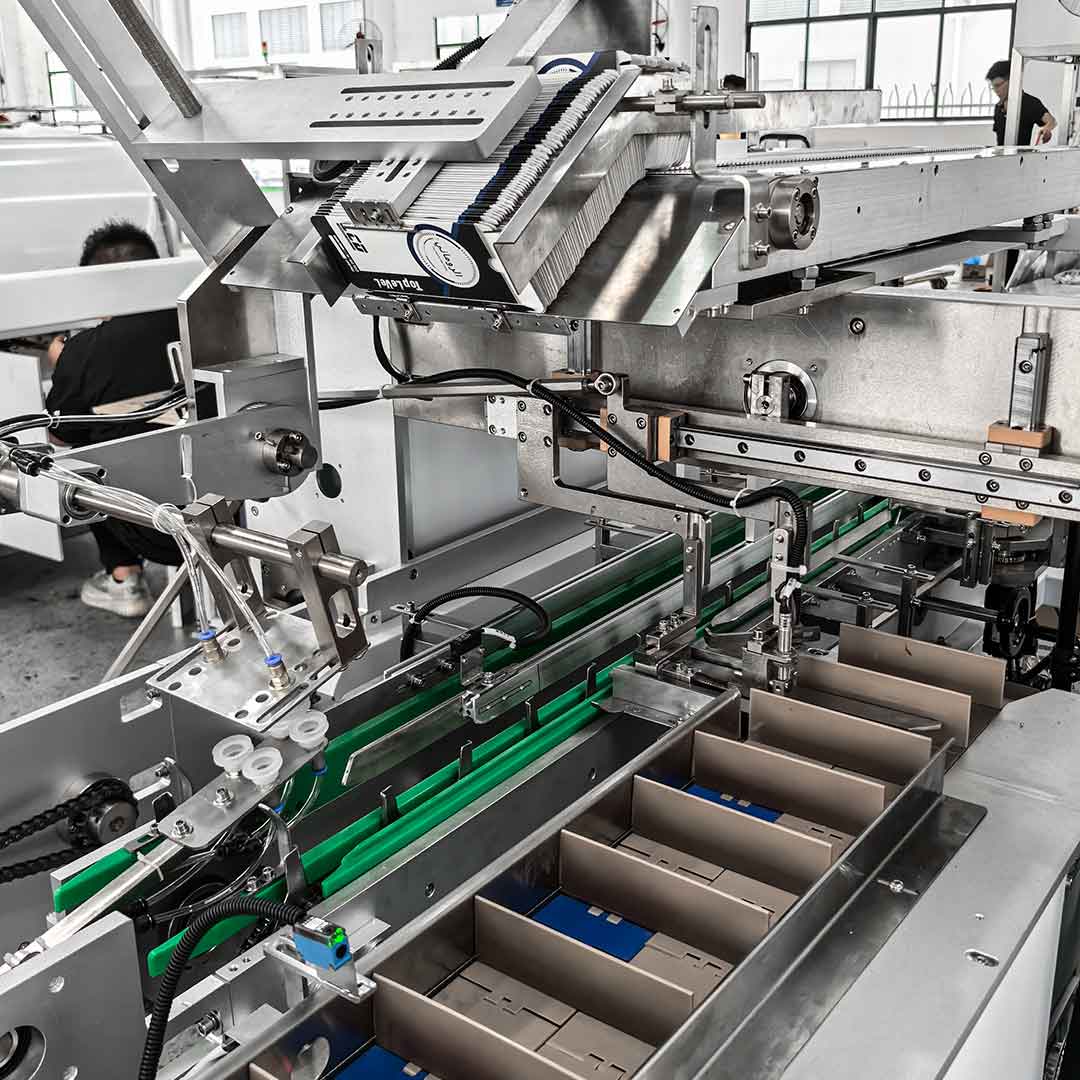

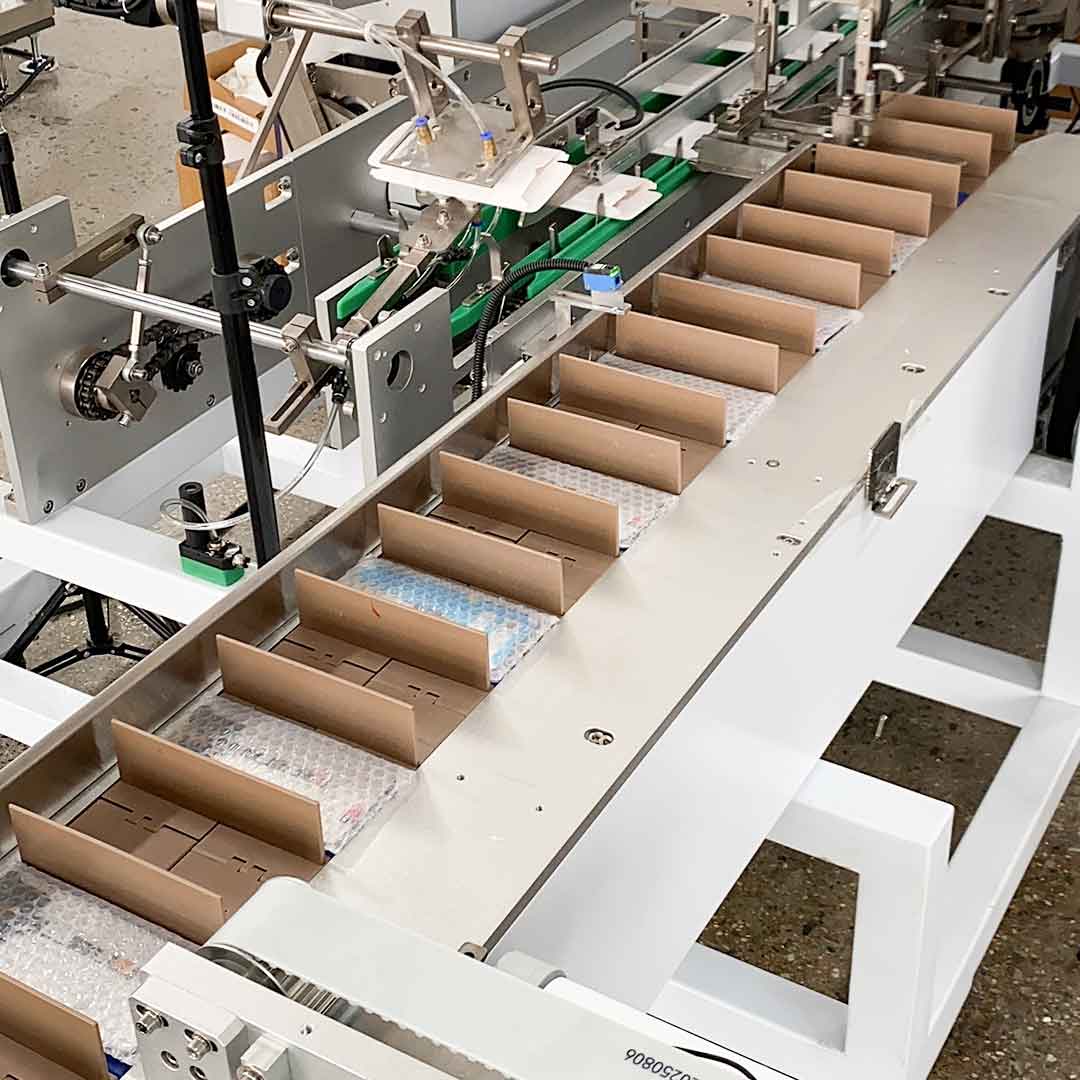

The machine adopts a flat pushing method to feed materials. The packaging speed is within 10-80 boxes/minute, and the stable speed can be set according to product requirements; it has functions such as automatic box opening, box loading, and box sealing, and can also be equipped with automatic material sorting lines, labeling machines, case packing machines, etc. according to needs; it has strong compatibility, and the paper box can be adjusted freely within 50*25*15mm~300*300*260mm, which is easy to operate.

Technical Parameters

Model
Packaging Speed	10-80 boxes/minute
Technical Specifications	250-450 g/m², with pre-folding effect, carton crease depth ≥0.4mm
Carton Requirements Dimension Range (L x W) (mm)	(70-220) × (40-120) × (12-60)
Compressed Air Pressure	0.5-0.8 MPa
Compressed Air Consumption	20 m²/h
Sealing Method	Hot melt adhesive dispensing sealing
Power Supply	380V 50Hz
Main Unit Power	1.5 kW
Dimensions	2600 × 1350 × 1650 mm
Net Weight	1200 kg

Applications

It is suitable for paper box packaging in various fields such as food, medicine, medical equipment, electronic products, hardware accessories, automotive accessories, cosmetics, daily necessities, etc.
