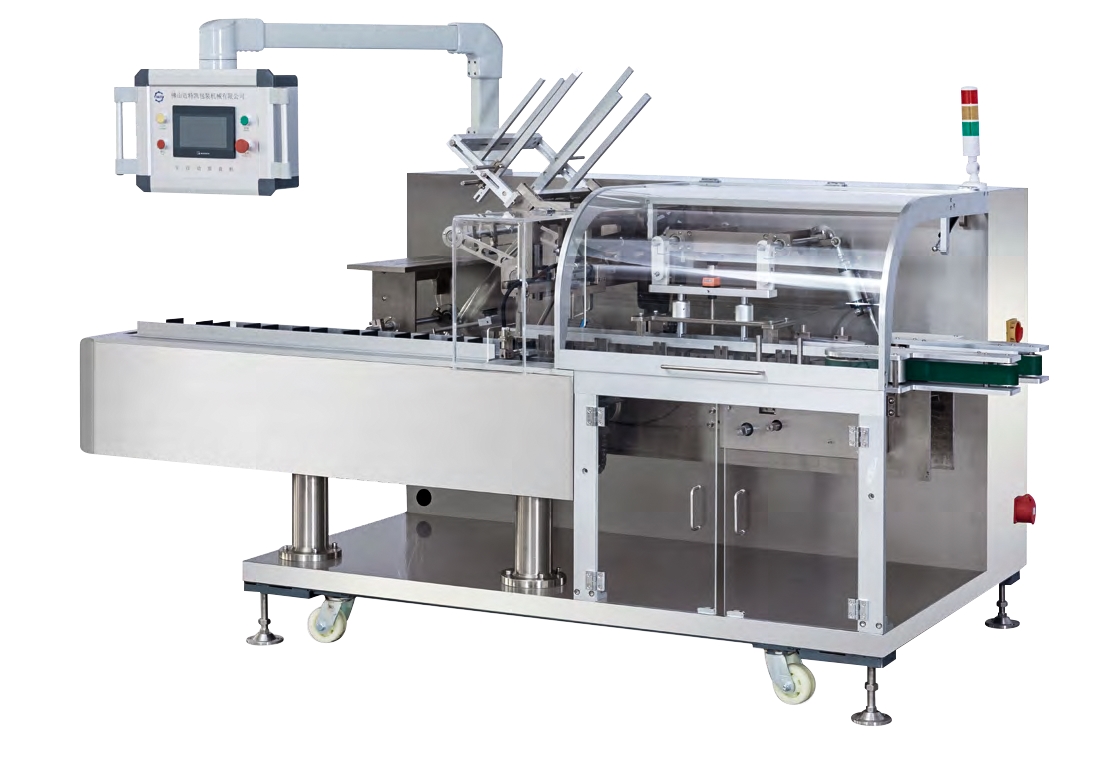

MTK-130F Automatic Food Cartoning Machine

Description

This food cartoning machine can arrange and feed small pouches into cartons or load individual packages into boxes for sealing. It features automatic product sorting, box opening, loading, and sealing functions, requiring no manual intervention throughout the process. With one-touch operation, it achieves efficient and cost-effective cartoning.

SHARE AS

REQUEST A QUOTE

Features

Wide Application
Suitable for various foods, biscuits, bread and pastries, frozen foods, ready meals, etc.; Can be used for automated cartoning and sealing of packaging boxes such as corrugated cardboard boxes, white cardboard boxes, colour boxes, and windowed boxes.

Packaging speed:
15-70 cartons/minute

Carton requirements:
250–350 gsm white cardboard or corrugated paper; carton crease depth no less than 0.4 mm with pre-folded effect

Machine weight:
Approximately 1500 kg

Machine dimensions
Customised to actual requirements

Technical Parameters

Model	MTK-130F
Packaging Speed	15-70 cartons/minute
Technical Specifications	250-450 g/m², with pre-fold effect, carton fold depth ≥0.4 mm
Carton Requirements Dimension Range (L x W) (mm)	(70-200) (80-160) (15-60)
Compressed Air Pressure	0.5-0.8 MPa
Compressed Air Consumption	20 m²/h

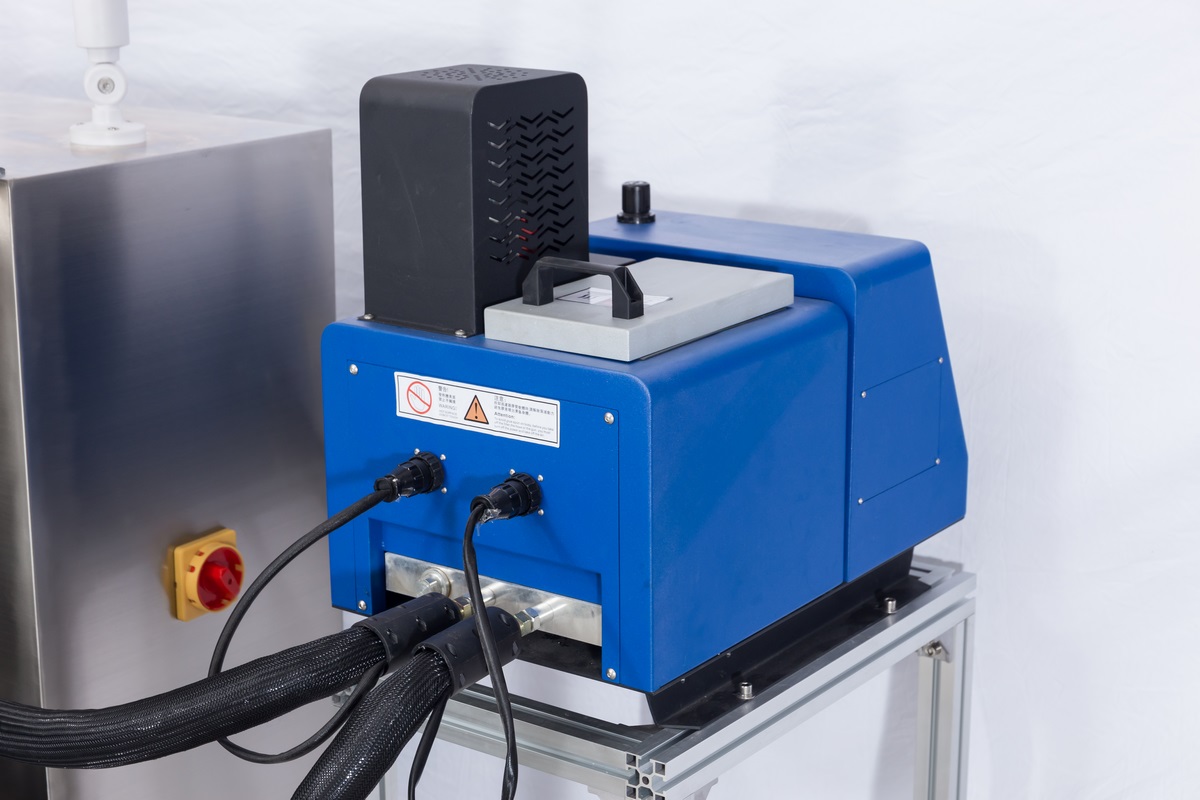

Sealing Method	Hot melt adhesive dosing sealing
Power Supply	380 V, 50 Hz
Main Unit Power	1.5 kW
Dimensions	280015501650 mm
Net Weight	1300 kg

Applications

It is suitable for paper box packaging in various fields such as food, medicine, medical equipment, electronic products, hardware accessories, automotive accessories, cosmetics, daily necessities, etc.
