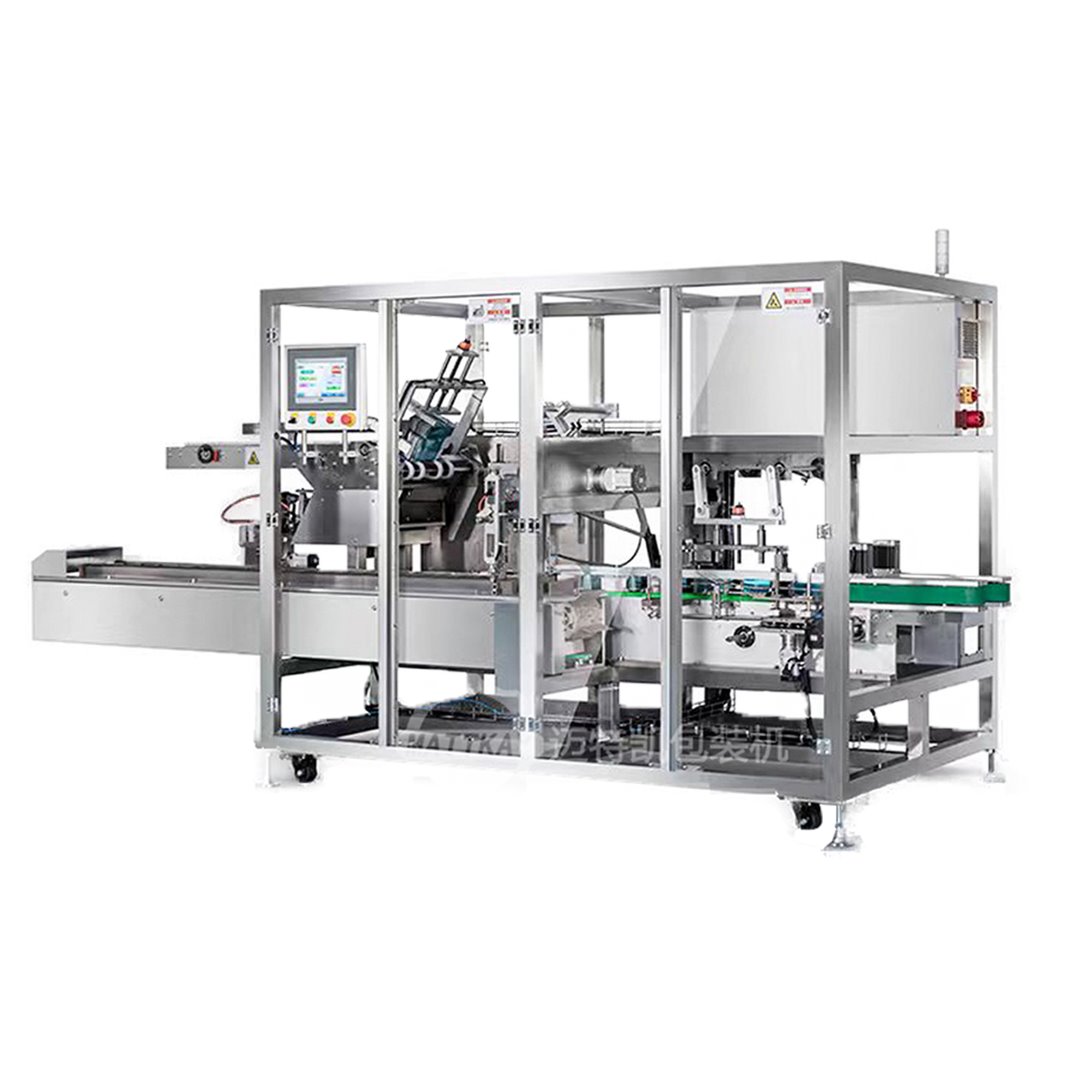

MTK-VC160/MTK-VC260 Top-Opening Lid Box Packing Machine

Description

The MTK-VC260 Top-Opening Cartoning Machine can package materials across industries including food, pharmaceuticals, daily necessities, and toys. It accommodates standard carton types such as snap-lock cartons, glue-sealed cartons, lock-bottom cartons, and cartons with hanging tabs.Packaging speed: 10-40 boxes/minute.Feeding options include manual loading, integration with multi-axis robotic arms, fixed hoppers, turret hoppers, or seamless integration with various production line systems.

SHARE AS

REQUEST A QUOTE

Features

There are two types of horizontal automatic cartoning machines: box insertion type and glue spraying type.

Users can choose according to the sealing method of the product.

The machine adopts a flat pushing method to feed materials. The packaging speed is within 10-80 boxes/minute, and the stable speed can be set according to product requirements; it has functions such as automatic box opening, box loading, and box sealing, and can also be equipped with automatic material sorting lines, labeling machines, case packing machines, etc. according to needs; it has strong compatibility, and the paper box can be adjusted freely within 50*25*15mm~300*300*260mm, which is easy to operate.

Technical Parameters

Model	MTK-VC160
Production Capacity	20-60 boxes/minute
Carton Size Range (LxWxH) mm	(70-250) X (70-160) X (20-100) mm
Carton Material	250-400g/m² (Carton creasing depth typically 0.4mm; cartons require pre-folded edges)
Total Equipment Power	Approx. 3kW
Operating Voltage	AC380V three-phase four-wire / 220V 50Hz AC380V
Carton Sealing Method	Optional: Double tongue, snap-bottom tongue, glue spray, etc.
Air Consumption	20m²/h (Pressure 0.5-0.7MPa)
Compressed Air	≥0.6MPa
Total Weight	Approx. 2000kg
Noise Level	Less than 85dB
Equipment Dimensions (LxWxH) mm	4200X1400X1650mm

Model	MTK-VC260
Production Capacity	10-30 boxes/minute
Carton Size Range (LxWxH) mm	(100-350) X (100-350) X (20-100) mm
Carton Paper Grade	250-400g/m² (Carton creasing depth typically 0.4mm; pre-folded cartons required)
Total Equipment Power	Approx. 5KW
Operating Voltage	AC380V three-phase four-wire/220V 50Hz AC380V
Carton Sealing Method	Optional: Double tongue, snap-bottom tongue, glue spray, etc.
Air Consumption	20m²/h (pressure 0.5-0.7MPa)
Compressed Air	≥0.6MPa
Total Weight	Approx. 2500kg
Noise Level	Less than 85dB
Equipment Dimensions (LxWxH) mm	4500X1400X1650mm

Applications

It is suitable for paper box packaging in various fields such as food, medicine, medical equipment, electronic products, hardware accessories, automotive accessories, cosmetics, daily necessities, etc.
