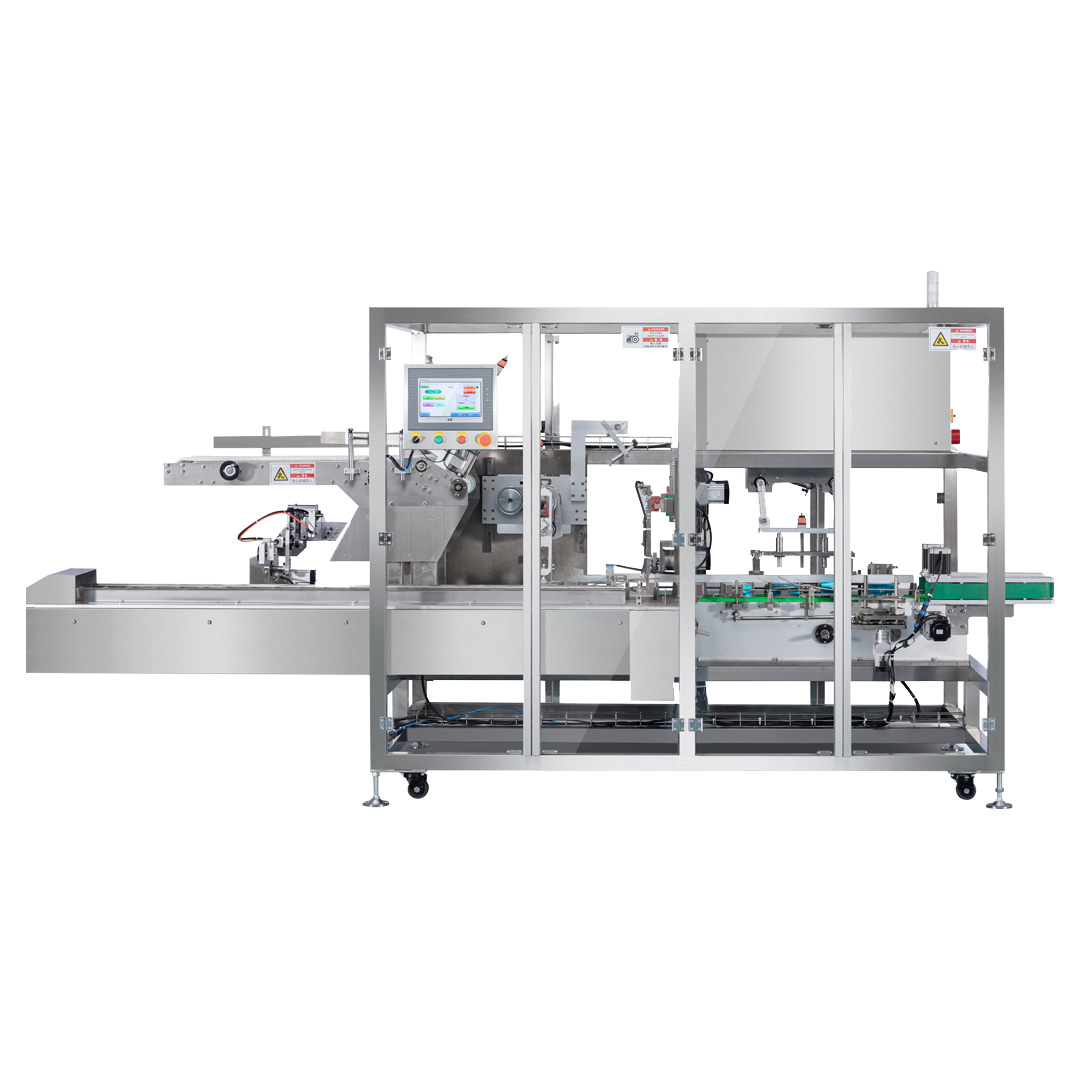

MTK-150 Servo-driven Fully Automatic Cartoning Machine

Description

High-speed servo-driven fully automatic cartoning machine designed for stable, efficient, and intelligent box packing. Suitable for multiple carton sizes with smart monitoring and remote control capabilities.

SHARE AS

REQUEST A QUOTE

Features

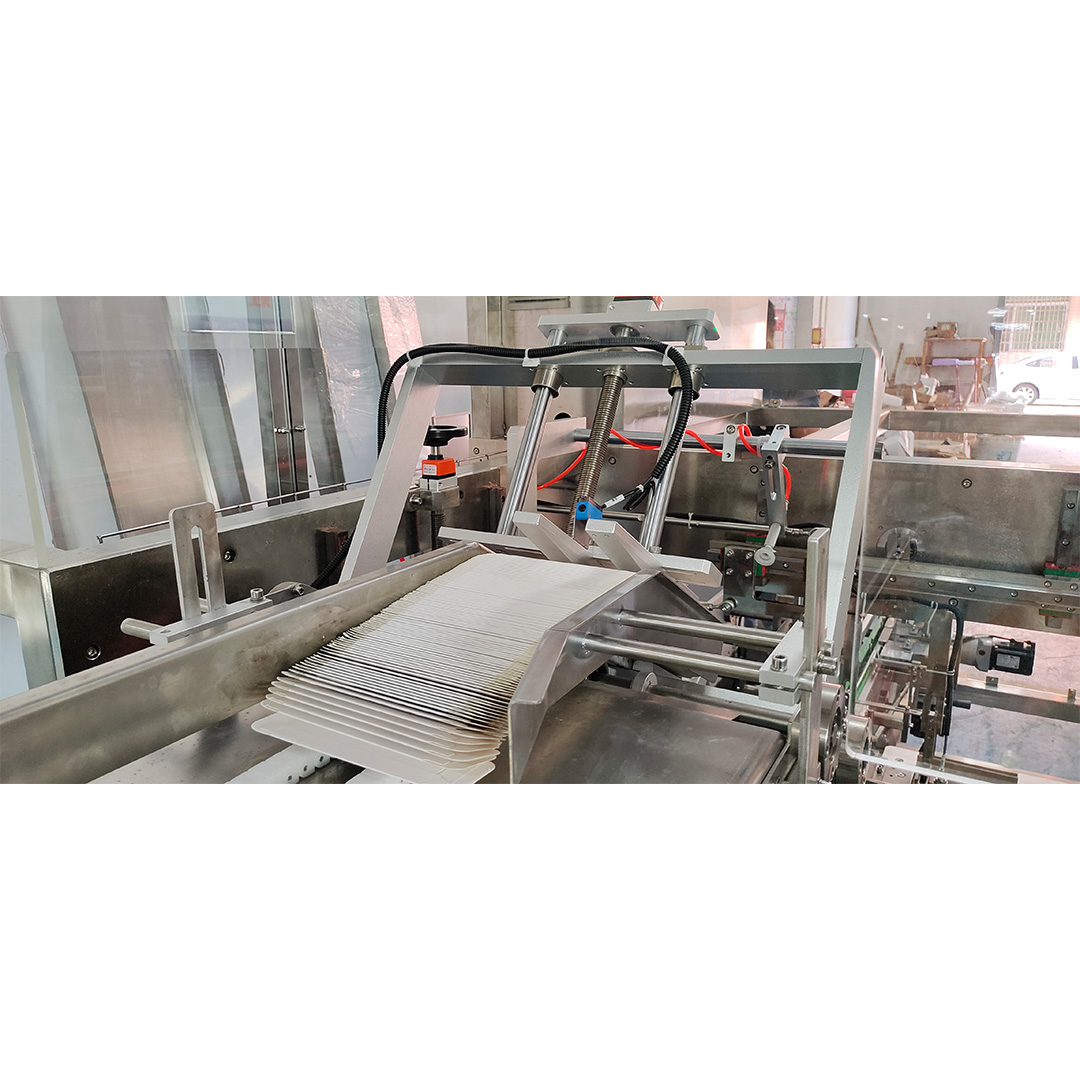

Rotary Carton Opening System
Stable rotary carton opening ensures smooth and reliable box forming.

Wide Carton Size Range
Carton size compatibility:
Length 100–250 mm | Width 100–160 mm | Height 20–90 mm

High-Speed Performance
Packing speed: 20–50 cartons per minute, ideal for continuous production.

Fully Automatic Functions
Automatic carton opening, product inserting, and carton closing with minimal manual operation.

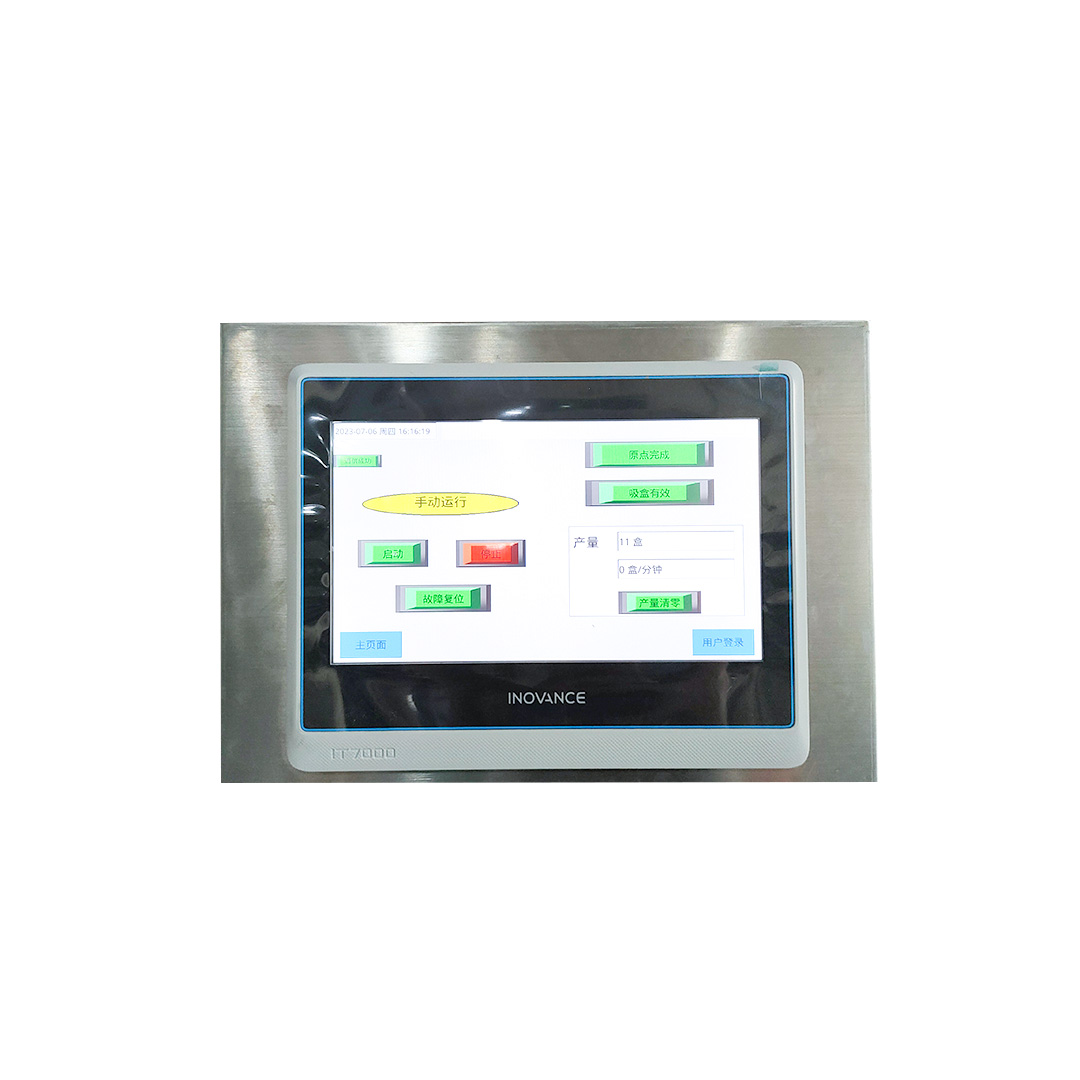

Smart Monitoring & Cloud Connectivity
Order monitoring, automatic fault alarm, cloud data storage, and mobile remote monitoring.

Durable 304 Stainless Steel Frame
Full 304 stainless steel structure ensures hygiene, durability, and long service life.

Safety & Efficiency Design
Door-open stop protection and quick format change for improved production safety.

Fast Delivery Time
Lead time: 30–35 days.

Technical Parameters

Model	MTK-150
Max peoduction	20-50 boxes/minute Pcs/min
(L/W/H）Box range	L:100-250mm, W:100-160mm, H:20-90mm
Total power	6.5KW
Input voltage	Single-phase 220V/50Hz Three-phase 380V/50Hz
Sealing type	Double tongue insertion, tongue-locked base, spray adhesive
Air consumption	20m³/h (Pressure 0.5-0.7MPa)
Gross weight	1200KG
Dimension	3900×1500×1800mm

Applications

It is suitable for paper box packaging in various fields such as food, medicine, medical equipment, electronic products, hardware accessories, automotive accessories, cosmetics, daily necessities, etc.
