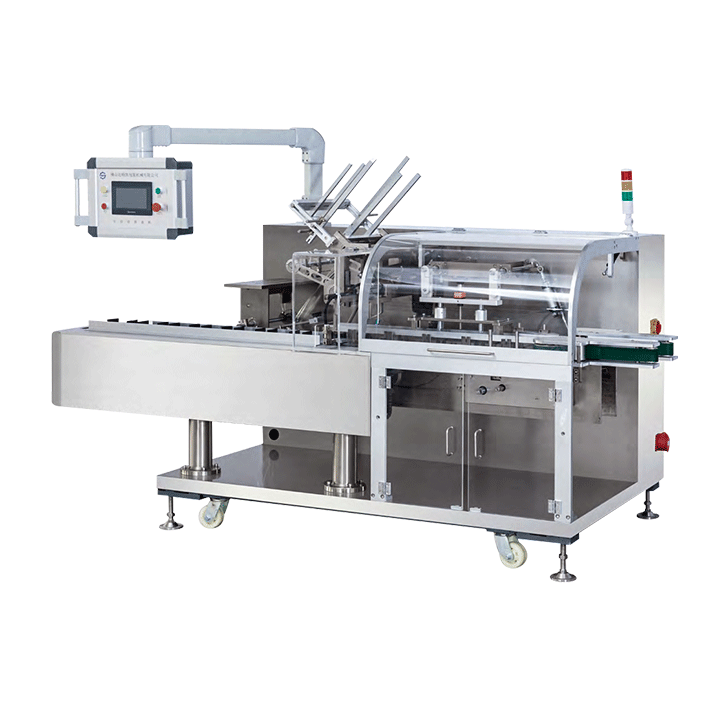

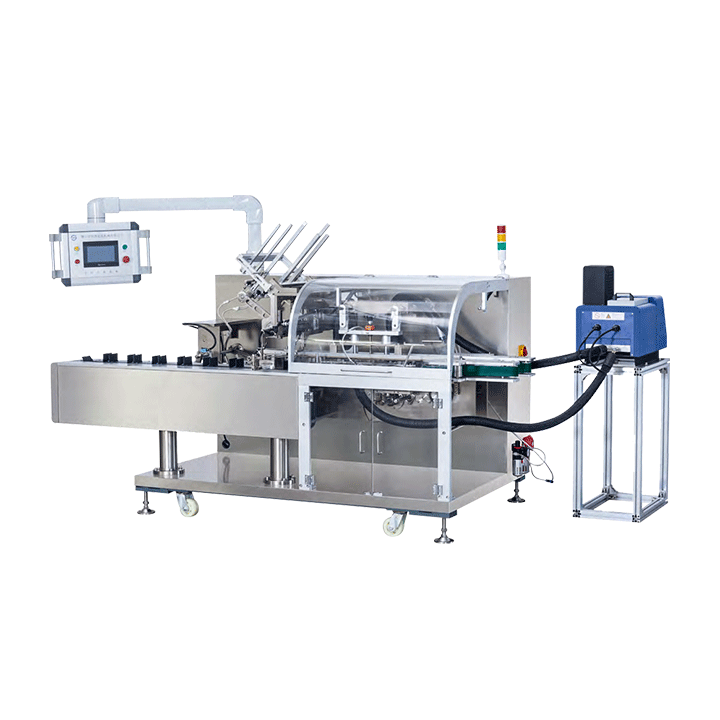

Tissue Box Packing Machine

Description

The tissue box packaging machine is suitable for packaging various types of boxed tissues, such as tissue rolls, napkins, and handkerchiefs. This machine features automatic box opening, filling, and sealing functions. Additionally, it can be equipped with optional automatic feeding, bagging, and case packing systems as needed;

Boxing Speed

The machine operates at a speed of 10–100 boxes per minute, with the ability to set a stable boxing speed according to user requirements. The machine’s slots can be easily adjusted to accommodate different box sizes, allowing a single machine to handle packaging for a wide range of box dimensions. Utilizing this boxing machine in the packaging process can significantly improve production efficiency, reduce labor costs, and increase net profits.

SHARE AS

REQUEST A QUOTE

Features

There are two types of horizontal automatic cartoning machines: box insertion type and glue spraying type.

Users can choose according to the sealing method of the product.

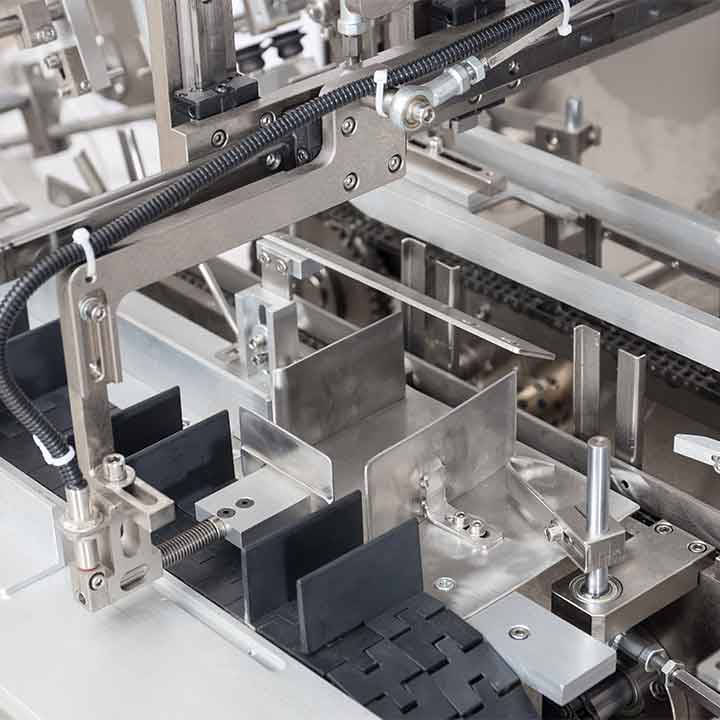

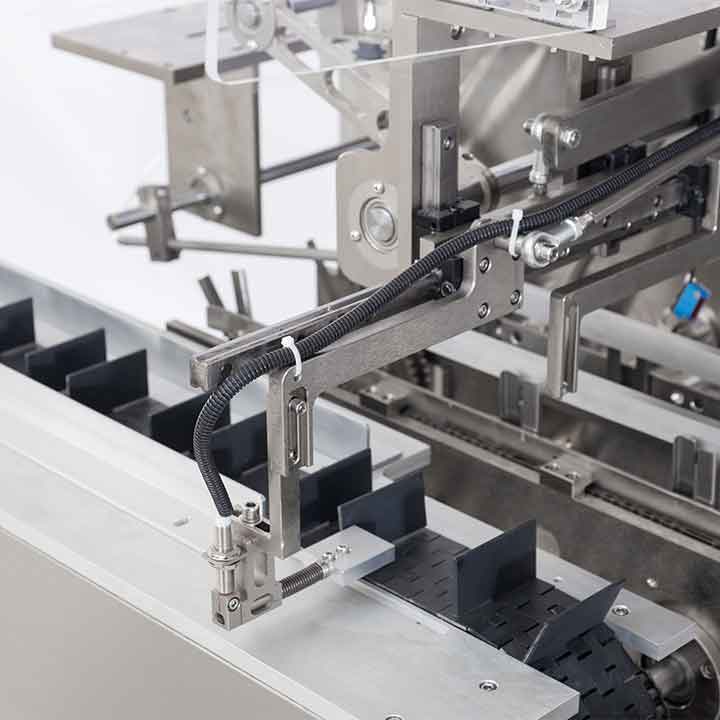

The machine adopts a flat pushing method to feed materials. The packaging speed is within 10-80 boxes/minute, and the stable speed can be set according to product requirements; it has functions such as automatic box opening, box loading, and box sealing, and can also be equipped with automatic material sorting lines, labeling machines, case packing machines, etc. according to needs; it has strong compatibility, and the paper box can be adjusted freely within 50*25*15mm~300*300*260mm, which is easy to operate.

Technical Parameters

Model
Packaging Speed	10-80 boxes/minute
Technical Specifications	250-450 g/m², with pre-folding effect, carton crease depth ≥0.4mm
Carton Requirements Dimension Range (L x W) (mm)	(70-220) × (40-120) × (12-60)
Compressed Air Pressure	0.5-0.8 MPa
Compressed Air Consumption	20 m²/h

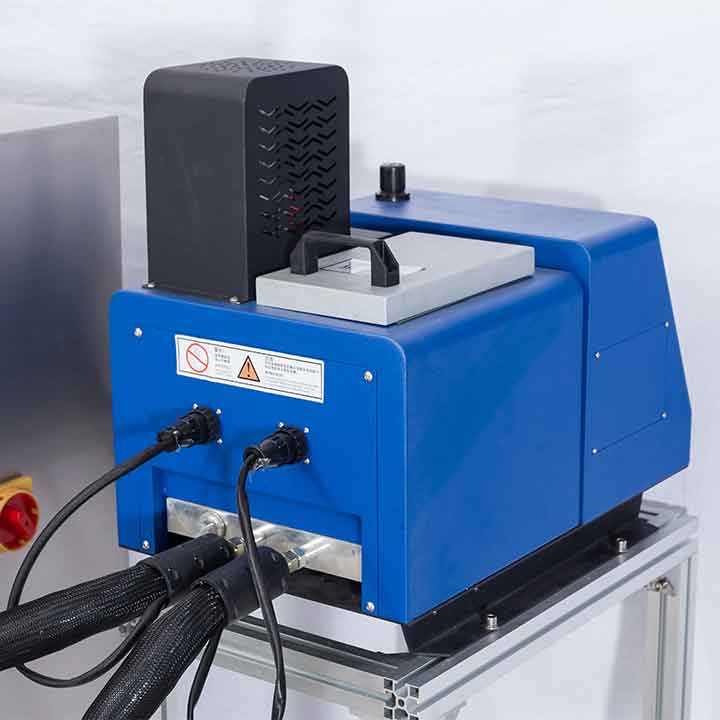

Sealing Method	Hot melt adhesive dispensing sealing
Power Supply	380V 50Hz
Main Unit Power	1.5 kW
Dimensions	2600 × 1350 × 1650 mm
Net Weight	1200 kg

Applications

It is suitable for paper box packaging in various fields such as food, medicine, medical equipment, electronic products, hardware accessories, automotive accessories, cosmetics, daily necessities, etc.
