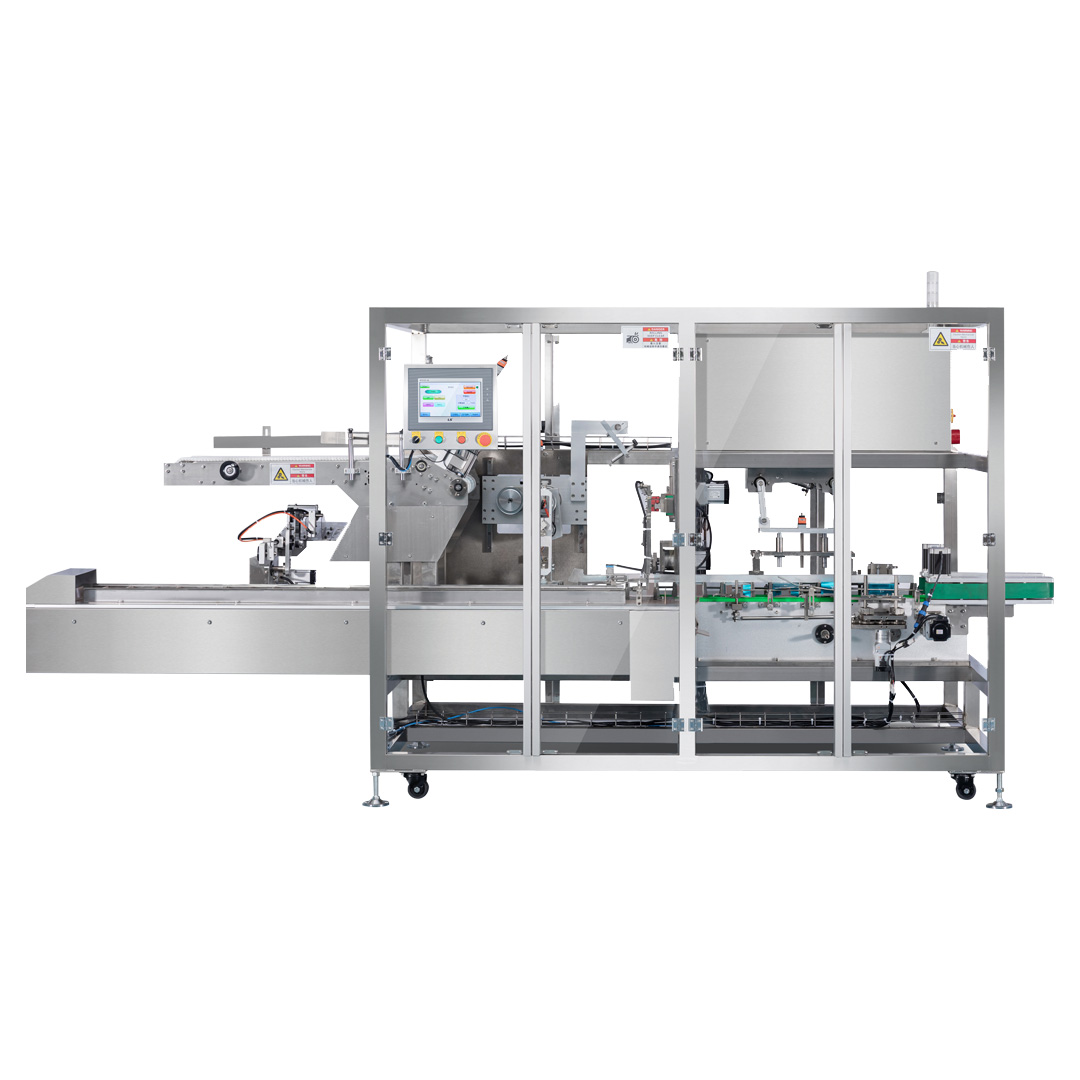

Building Block Packaging Machine

Description

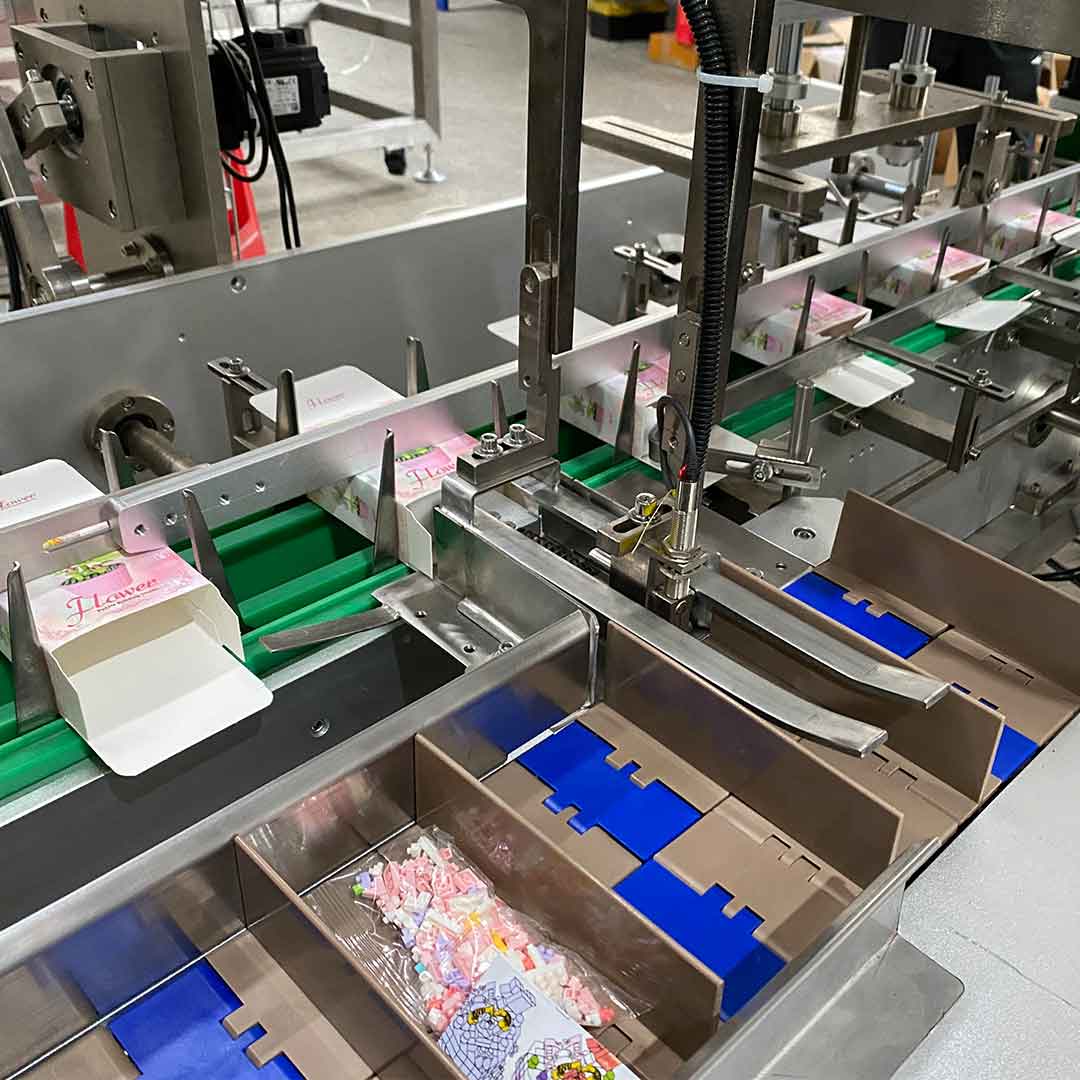

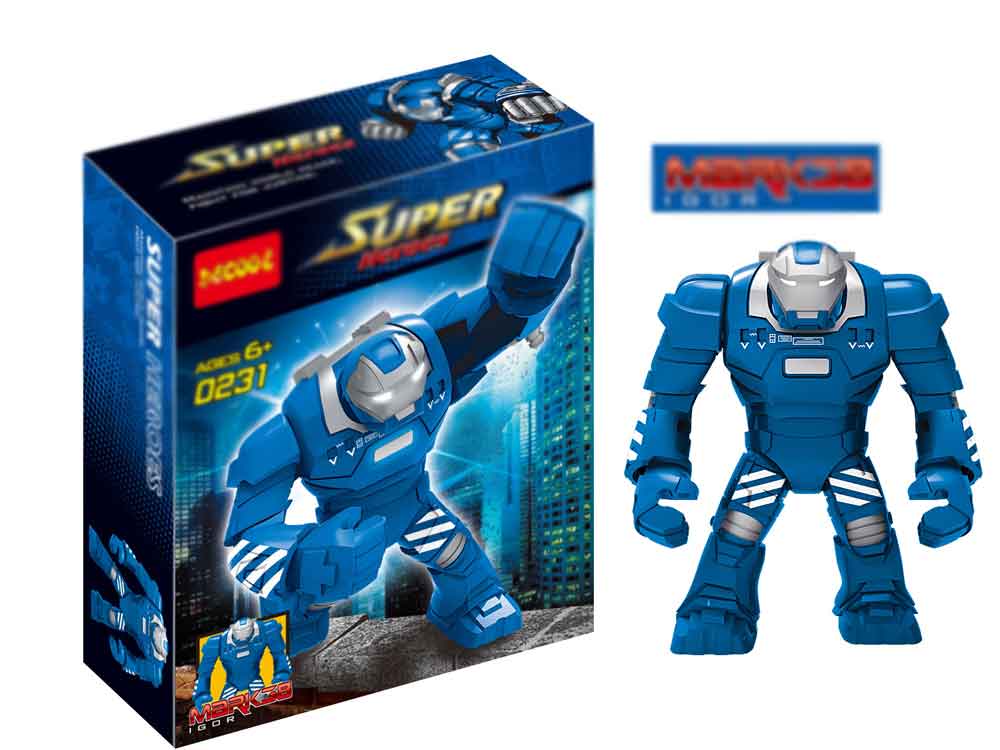

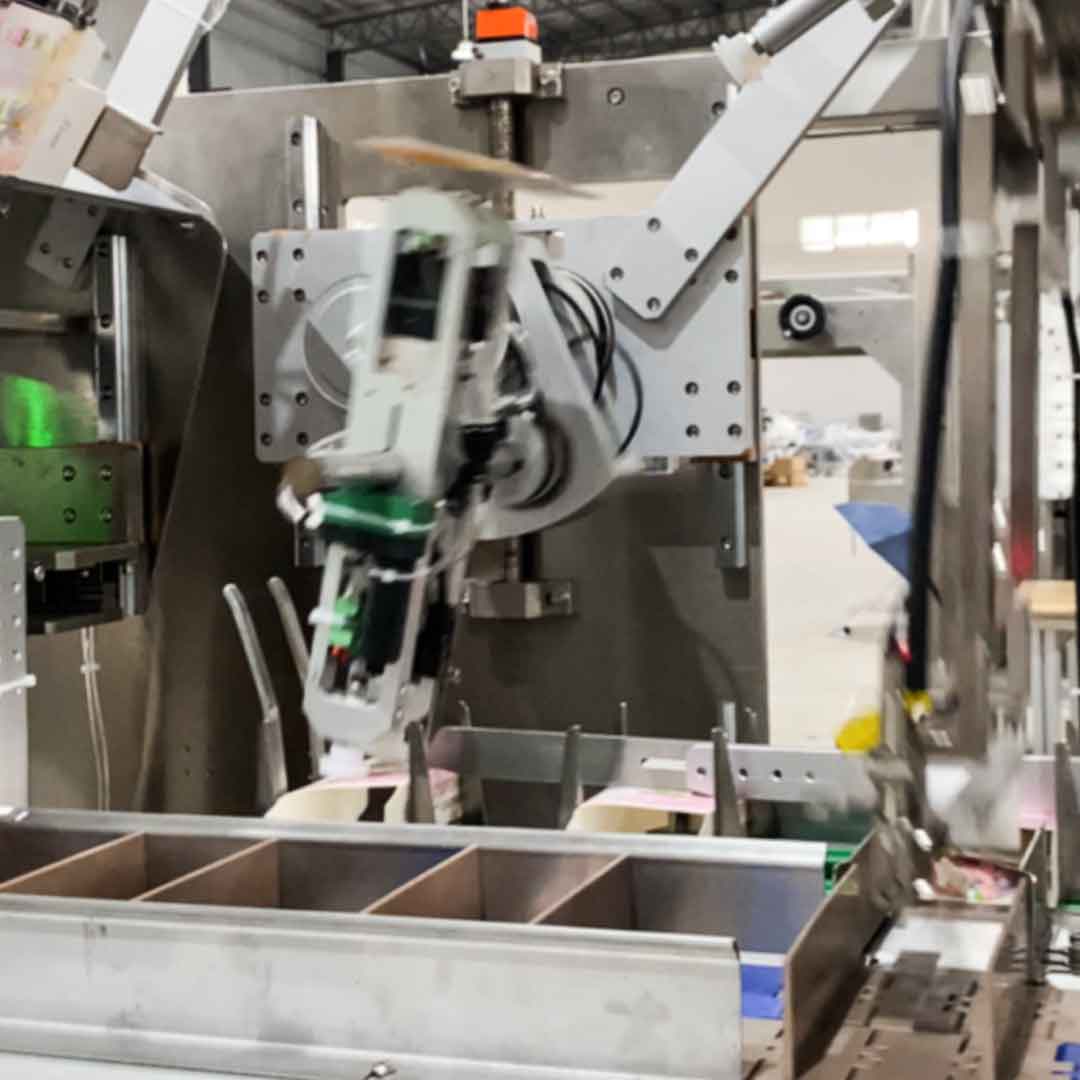

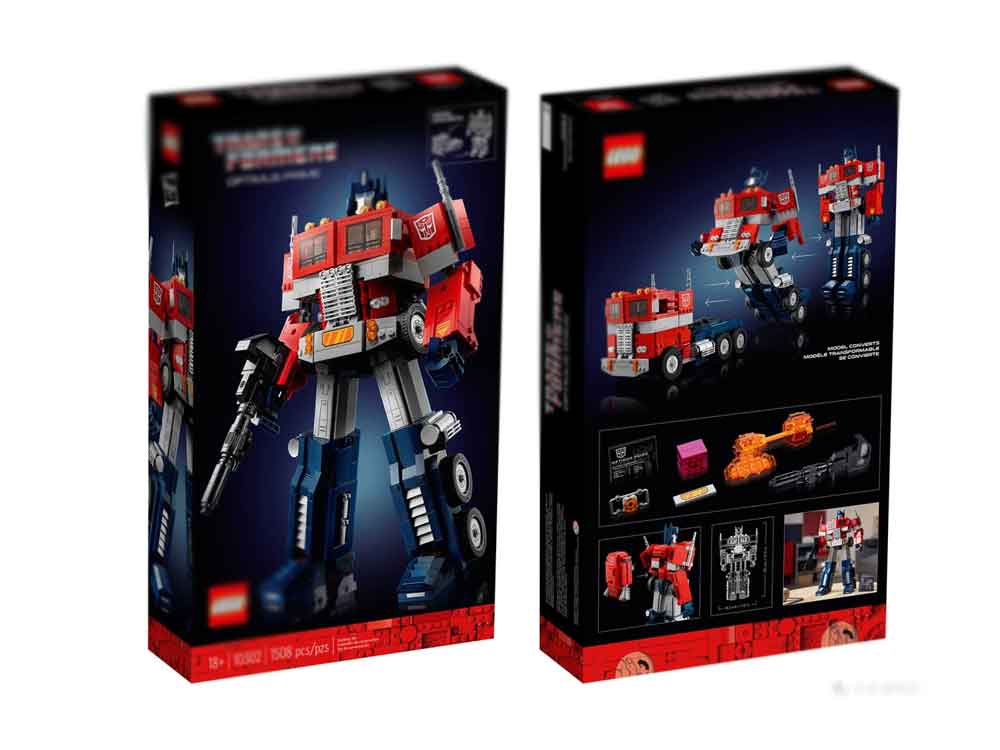

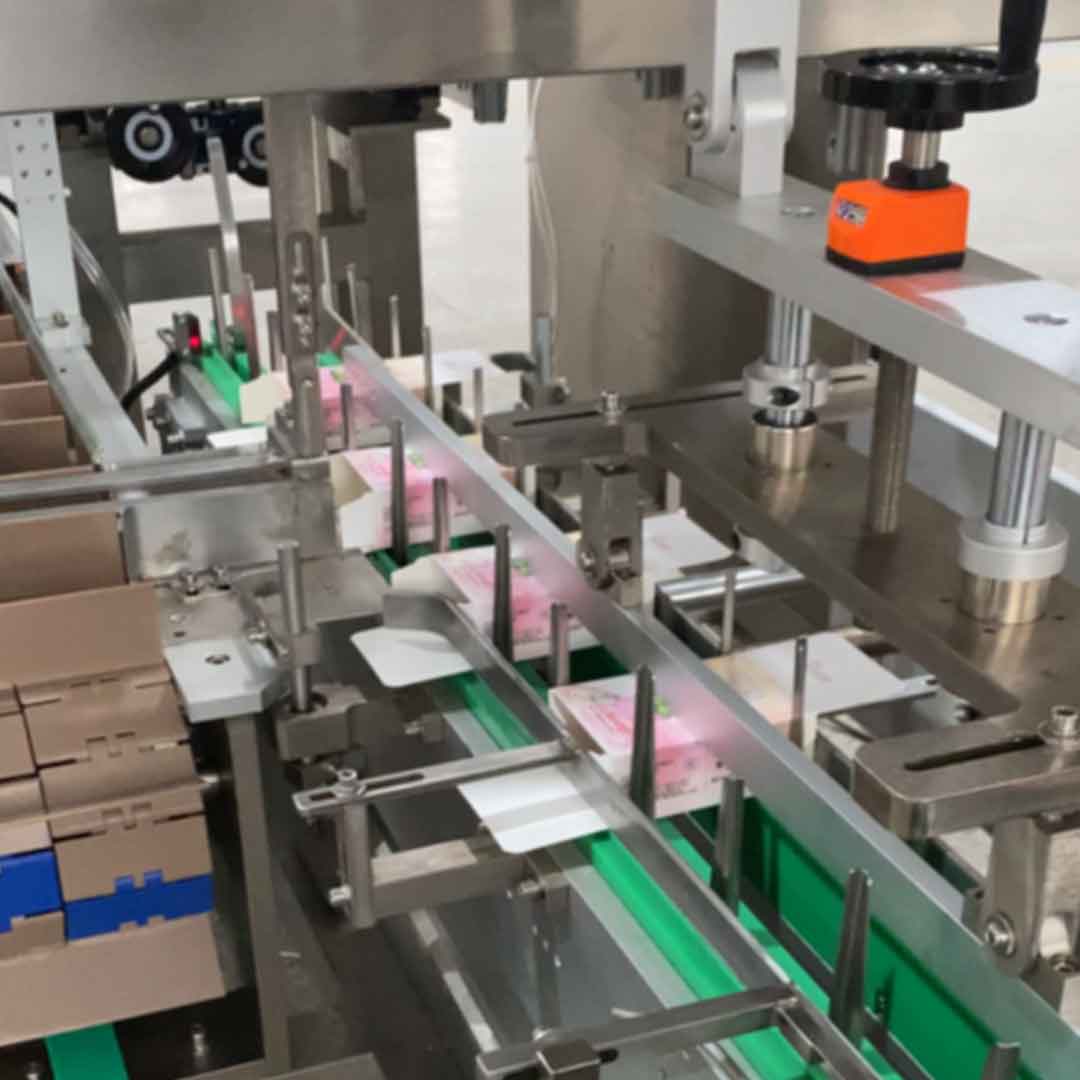

Designed for efficient and precise packaging, this machine integrates automatic leaflet insertion, carton forming, toy loading, box sealing, and sealing label application in one seamless process. It ensures stable performance, high efficiency, and neat packaging, making it ideal for building block toys and similar products.

SHARE AS

REQUEST A QUOTE

Technical Parameters

Model	MTK-150SF
Production Capacity	50-80 boxes/minute
Carton Size Range (LxWxH) mm	(70-240) X (80-160) X (20-90)
Carton Paper Grade	250-400g/m² (Carton creasing depth typically 0.4mm; cartons require pre-folded edges)
Total Equipment Power	6.5KW
Operating Voltage	AC380V Three-phase four-wire/220V 50Hz AC380V
Carton Sealing Method	Optional: Double tongue, snap-bottom tongue, glue spraying, etc.
Air Consumption	20m²/h (Pressure 0.5-0.7MPa)
Compressed Air	≥0.6MPa
Total Weight	Approx. 1200kg
Noise Level	Less than 85dB
Equipment Dimensions (LxWxH) mm	3700X1400X1750mm

Model	MTK-190SF
Production Capacity	40-60 boxes/minute
Carton Size Range (LxWxH) mm	(100-300) x (100-190) x (20-100)
Carton Paper Grade	250-400 g/m² (Carton creasing depth typically 0.4 mm; cartons require pre-folded edges)
Total Equipment Power	8 kW
Operating Voltage	AC 380V three-phase four-wire / 220V 50Hz AC 380V
Carton Sealing Method	Optional: Double tongue, snap-bottom tongue, glue spraying, etc.
Air Consumption	20m²/h (Pressure 0.5-0.7MPa)
Compressed Air	≥0.6MPa
Total Weight	Approx. 1350kg
Noise Level	Less than 85dB
Equipment Dimensions (LxWxH) mm	3700X1400X1750mm

Applications

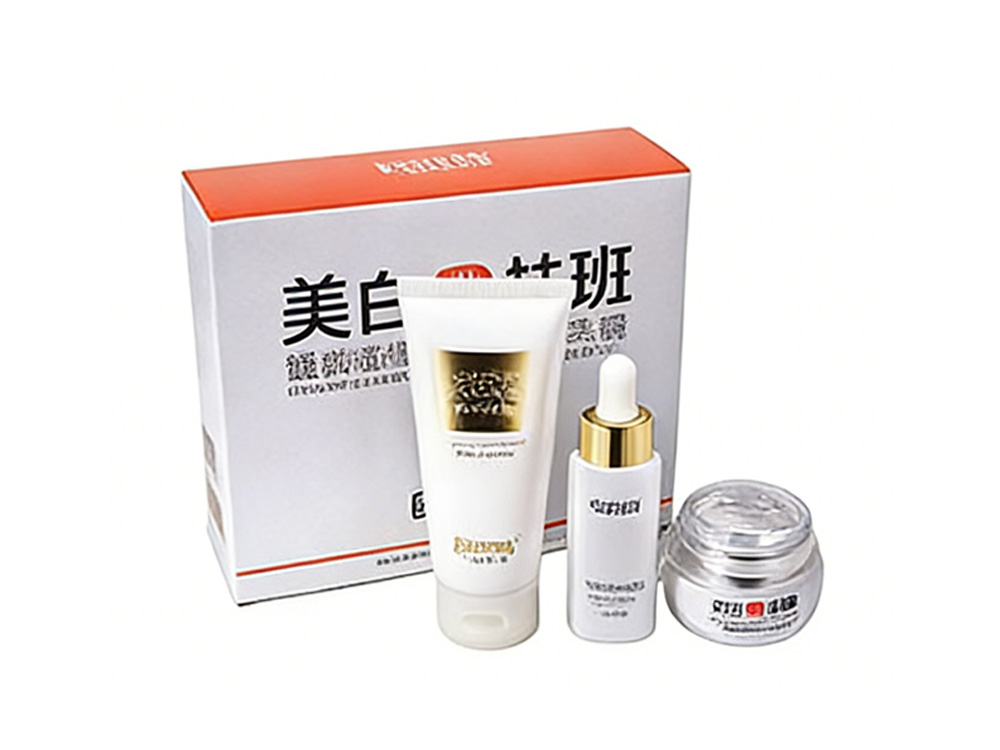

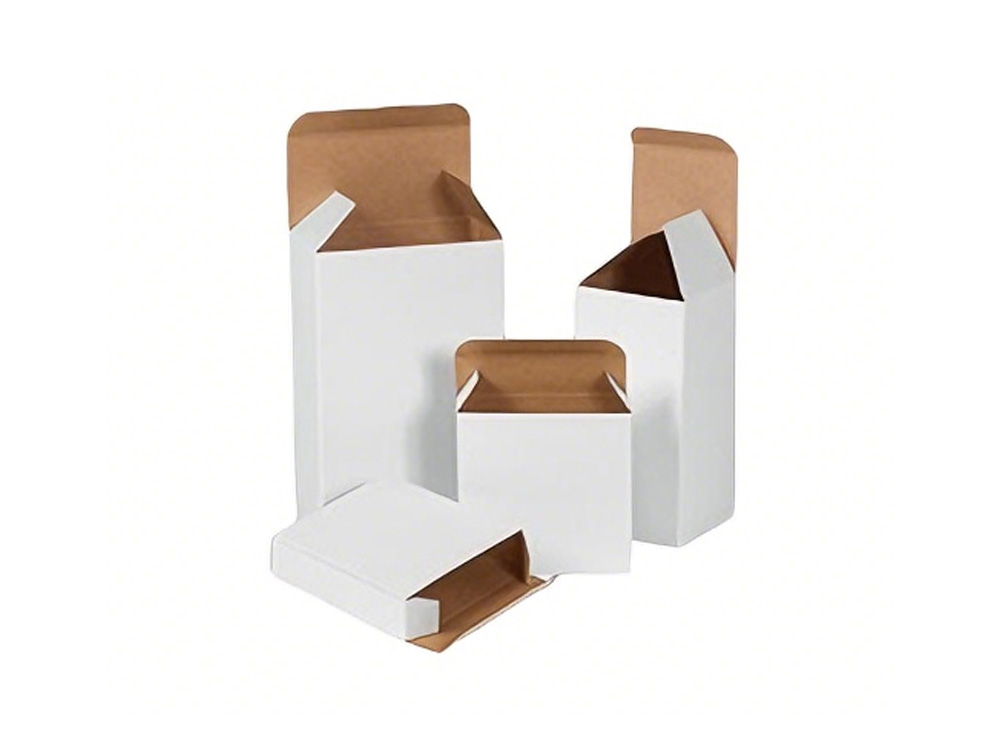

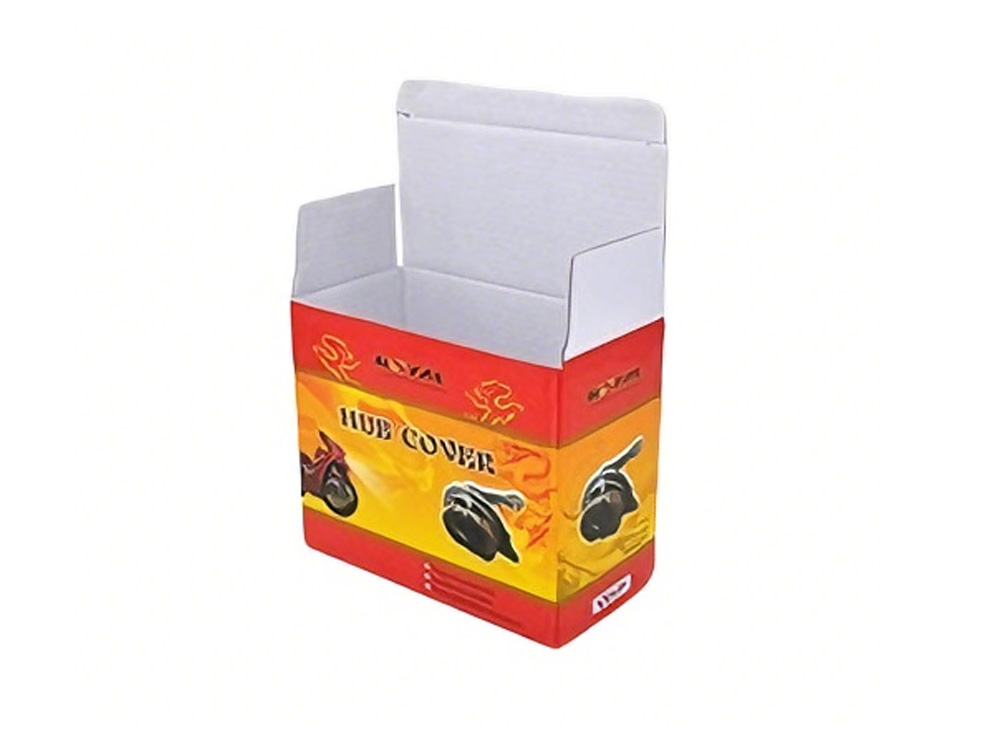

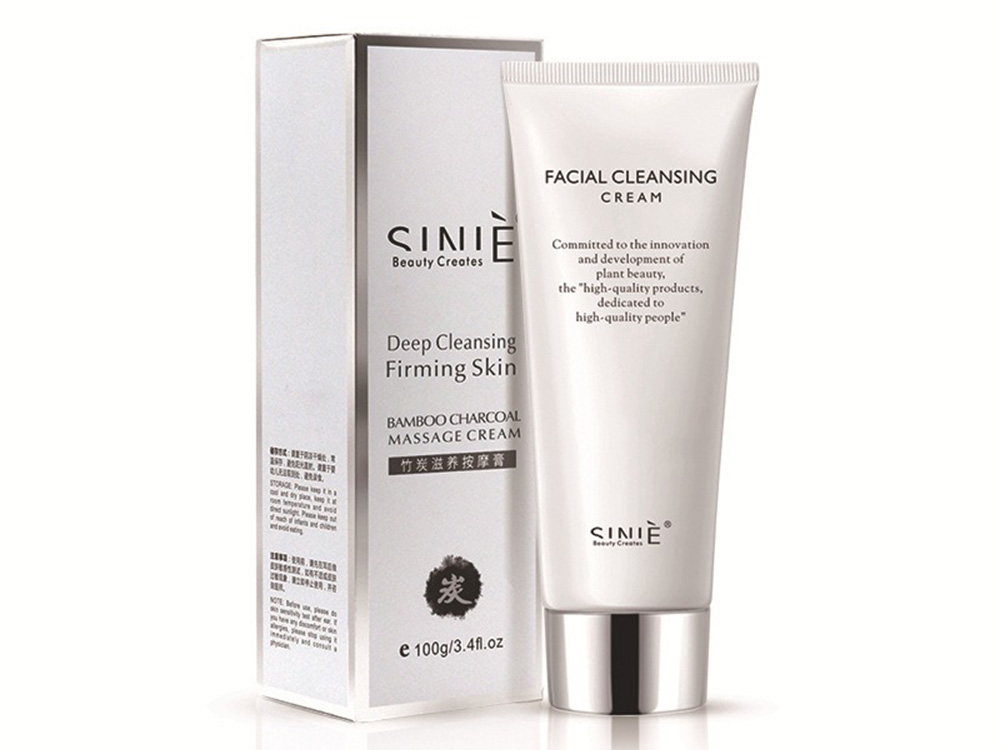

It is suitable for paper box packaging in various fields such as food, medicine, medical equipment, electronic products, hardware accessories, automotive accessories, cosmetics, daily necessities, etc.
