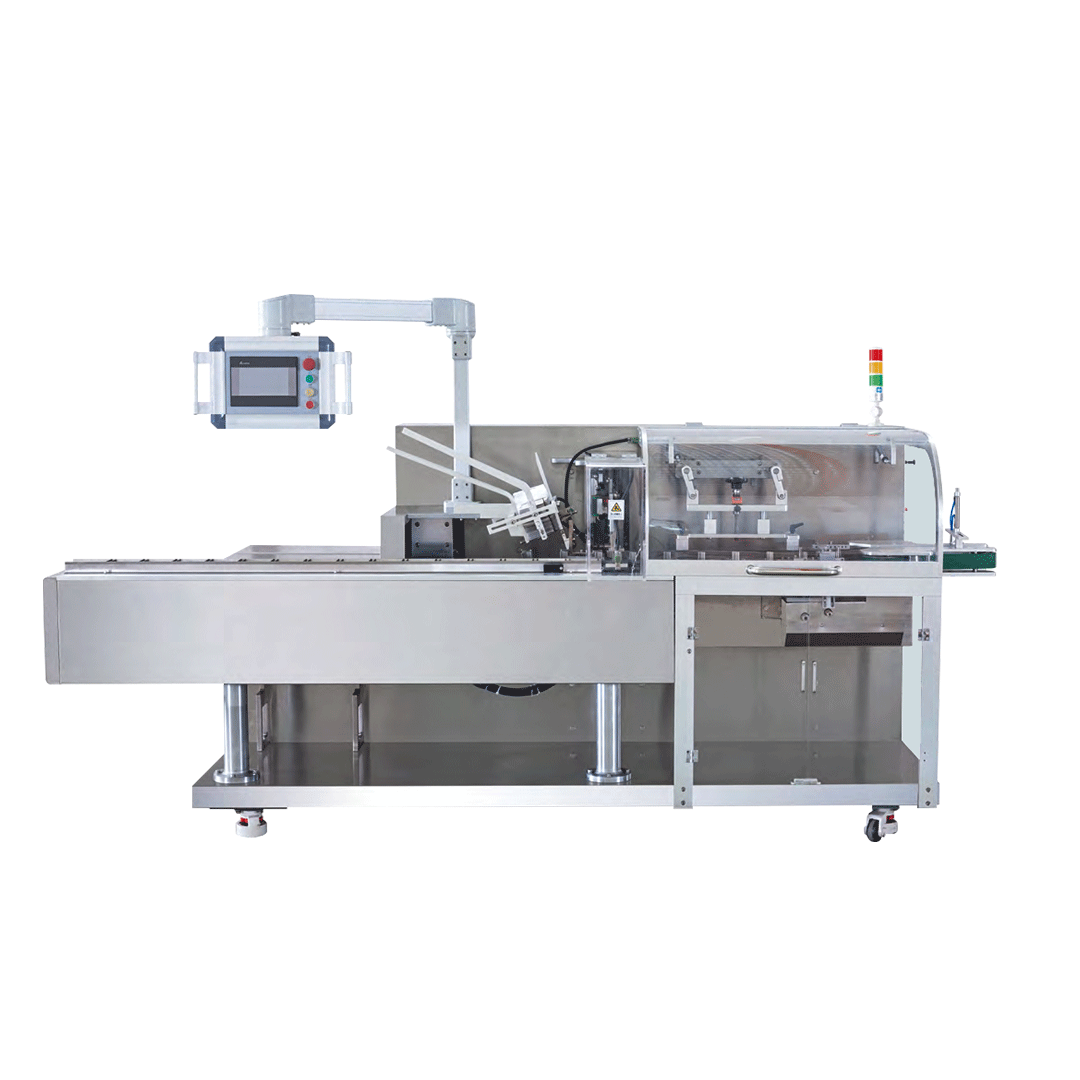

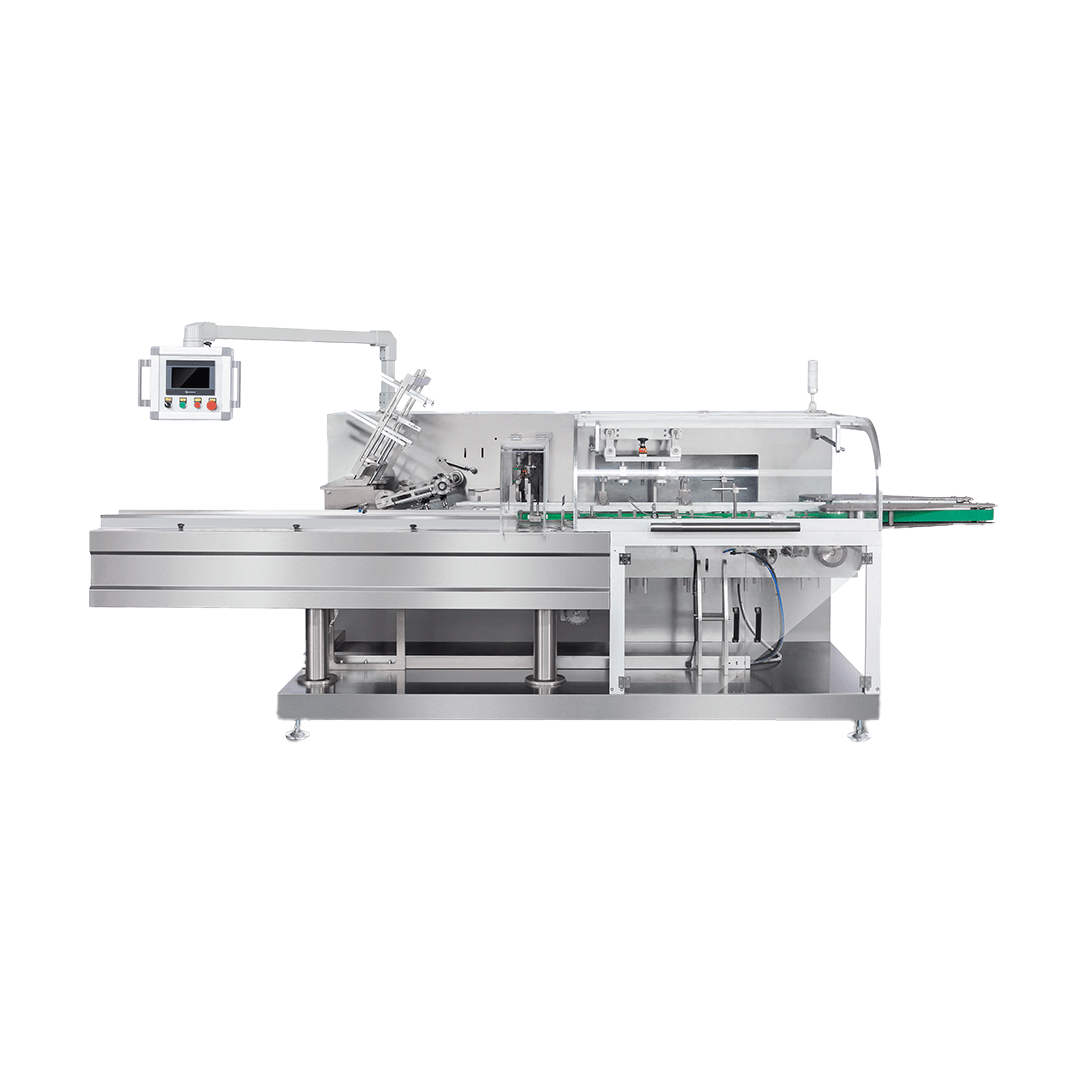

Sampling Swab Carton Packaging Machine

Description

This swab carton packaging machine is suitable for gynecological swabs, disposable oral, nasal, and throat swabs, laboratory testing swabs, viral and bacterial swabs, disposable DNA swabs, sterile cytology swabs, and nucleic acid testing swabs.

The packaging speed ranges from 20 to 80 cartons per minute and can be adjusted as needed; it is compatible with a variety of carton sizes.

SHARE AS

REQUEST A QUOTE

Features

There are two types of horizontal automatic cartoning machines: box insertion type and glue spraying type.

Users can choose according to the sealing method of the product.

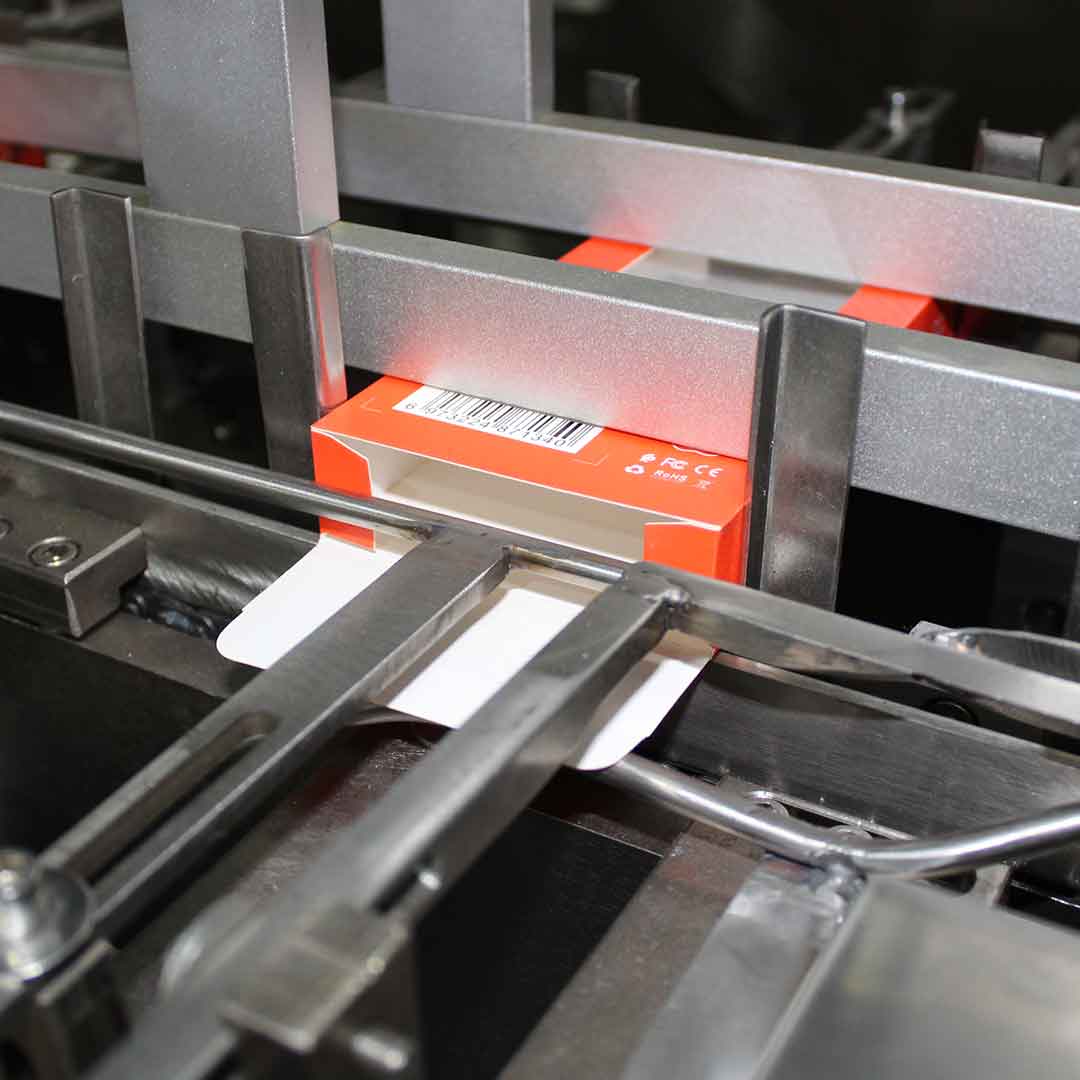

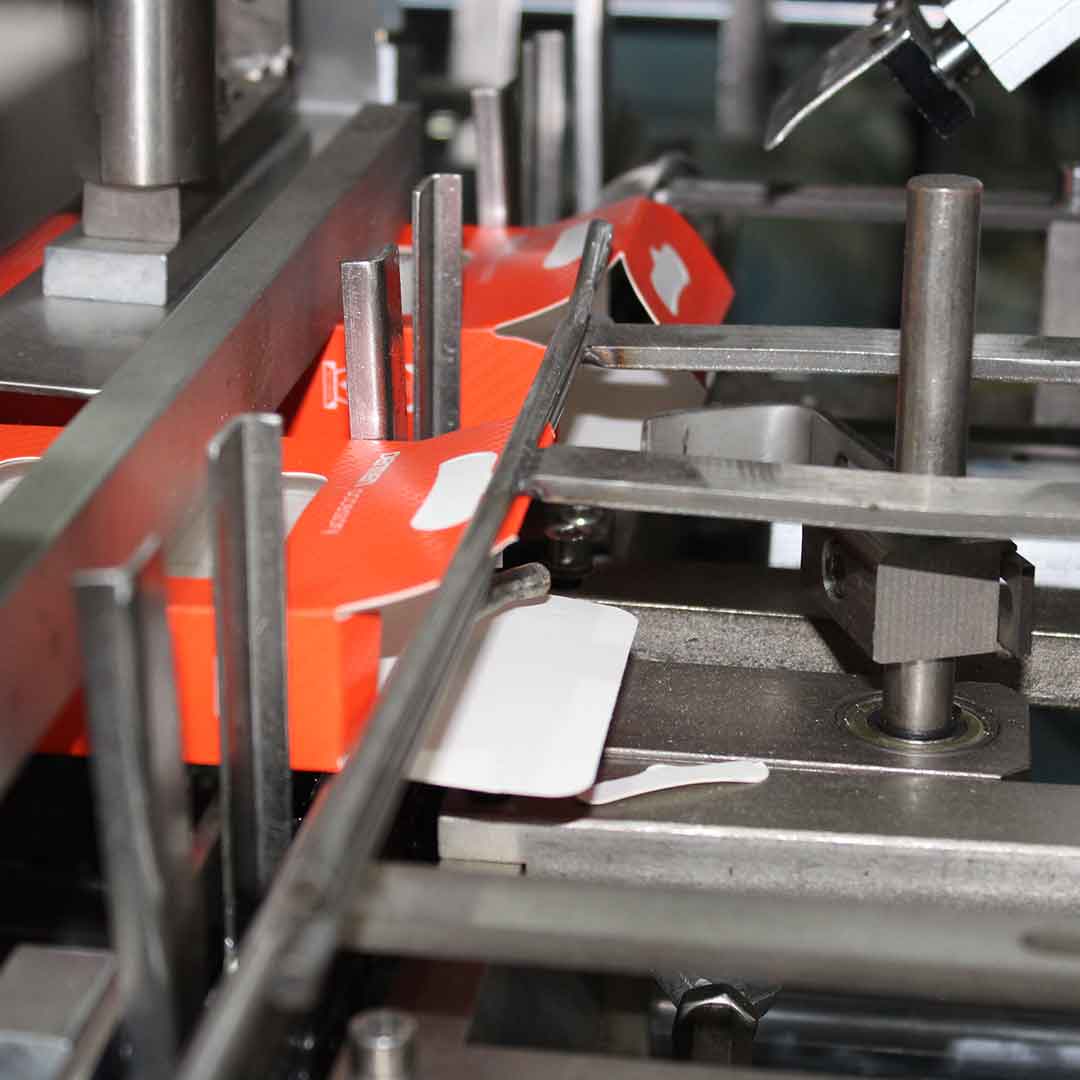

The machine adopts a flat pushing method to feed materials. The packaging speed is within 10-80 boxes/minute, and the stable speed can be set according to product requirements; it has functions such as automatic box opening, box loading, and box sealing, and can also be equipped with automatic material sorting lines, labeling machines, case packing machines, etc. according to needs; it has strong compatibility, and the paper box can be adjusted freely within 50*25*15mm~300*300*260mm, which is easy to operate.

Technical Parameters

model	MTK120A
Maximum Carton Dimensions (L x H) mm	220 x 90 x 60
Minimum Carton Dimensions (L x H) mm	80 x 20 x 20
Machine Dimensions (L x H) mm	2600 x 1350 x 1650
Packaging Speed	15–100 boxes per minute
Carton Weight	300–400 g/m²
Air Consumption	20 m²/h (pressure 0.5–0.7 MPa)
Power Supply Specifications	220 V, 50/60 Hz or 380 V, three-phase four-wire, 50 Hz
Power	Approx. 1.5 kW
Machine Weight	1,200 kg
We offer customization for non-standard specifications; please contact our customer service team for details.

model	MTK120B
Maximum Carton Dimensions (L x H) mm	220 x 120 x 60
Minimum Carton Dimensions (L x H) mm	70 x 20 x 20
Machine Dimensions (L x H) mm	2600 x 1350 x 1650
Packaging Speed	15–100 boxes per minute
Carton Weight	300–400 g/m²
Air Consumption	20 m²/h (pressure 0.5–0.7 MPa)
Power Supply Specifications	220 V, 50/60 Hz or 380 V, three-phase four-wire, 50 Hz
Power	Approx. 1.5 kW
Machine Weight	1,200 kg
We offer customization for non-standard specifications; please contact our customer service team for details.

model	MTK120C
Maximum Carton Dimensions (L x H) mm	220 x 120 x 60
Minimum Carton Dimensions (L x H) mm	50 x 25 x 15
Machine Dimensions (L x H) mm	3200 x 1200 x 1700
Packaging Speed	15–100 boxes per minute
Carton Weight	300–400 g/m²
Air Consumption	20 m²/h (pressure 0.5–0.7 MPa)
Power Supply Specifications	220 V, 50/60 Hz or 380 V, three-phase four-wire, 50 Hz
Power	Approx. 1.5 kW
Machine Weight	1,300 kg

Applications

It is suitable for paper box packaging in various fields such as food, medicine, medical equipment, electronic products, hardware accessories, automotive accessories, cosmetics, daily necessities, etc.
