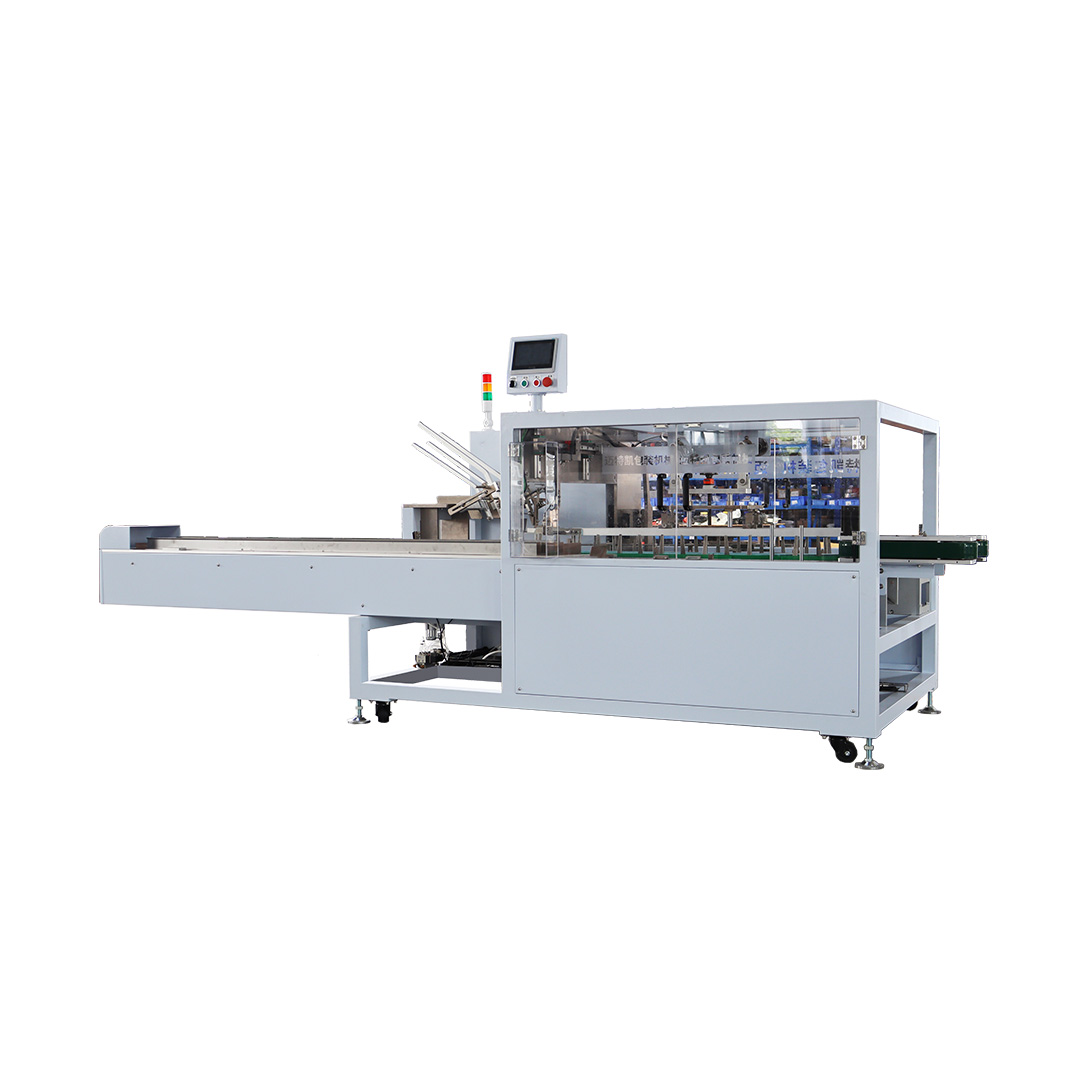

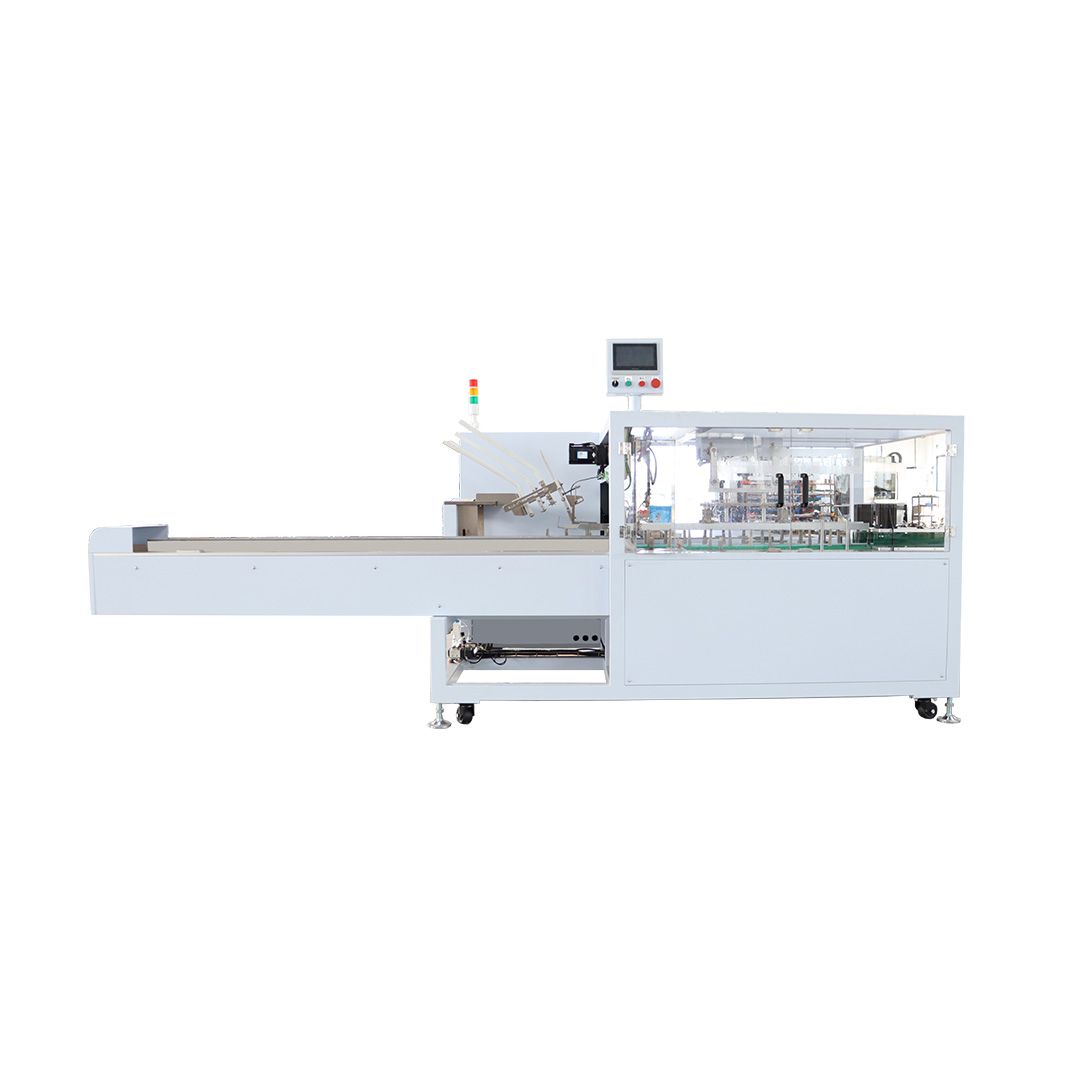

MTK-130 Simple Servo-Driven Box Making Machine

Description

A compact automatic cartoning machine designed for daily-use production. It performs carton opening, product inserting, and carton closing with stable servo control, fast delivery, and easy maintenance.

SHARE AS

REQUEST A QUOTE

Features

Straight-Pull Carton Opening
Reliable carton opening system for boxes up to 120 mm wide and 60 mm thick.

Wide Size Compatibility
Carton size range:
Length 70–250 mm | Width 40–120 mm | Height 15–60 mm

Stable Packing Speed
Output: 20–70 cartons/min, ideal for standard production lines.

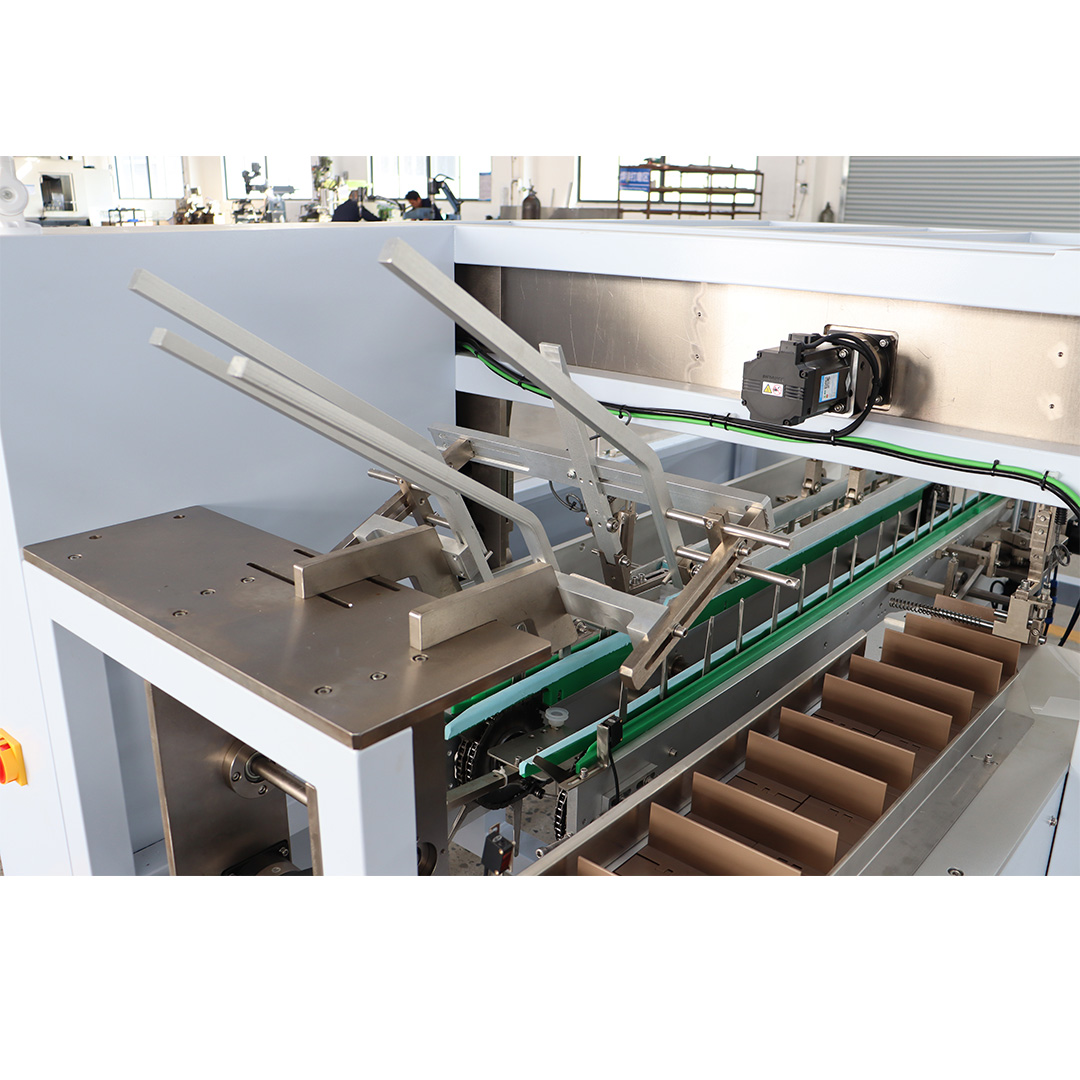

Durable Machine Structure
Carbon steel frame with spray coating; product contact parts made of 304 stainless steel.

Servo-Driven Control System
Fast fault recovery, precise motion control, and stable long-term operation.

Modular Design & Easy Maintenance
Standard modular components, easy to source spare parts locally.

Short Lead Time
10–15 days delivery, regular stock model.

Technical Parameters

Model	MTK-160SF
Max peoduction	20-50 boxes/minute Pcs/min
(L/W/H）Box range	L:100-250mm, W:100-160mm, H:20-90mm
Total power	6 kW
Input voltage	Single-phase 220V/50Hz Three-phase 380V/50Hz
Sealing type	Double tongue insertion, tongue-locked base, spray adhesive
Air consumption	20m³/h (pressure 0.5-0.7MPa)
Gross weight	Approx. 800kg
Dimension	370012701300mm

Applications

It is suitable for paper box packaging in various fields such as food, medicine, medical equipment, electronic products, hardware accessories, automotive accessories, cosmetics, daily necessities, etc.
