Name: MTK-120/MTK-130 Automatic Folding Tray Packaging Machine for Face Masks
Brand: Mattkay
SKU: MTK-120/MTK-130

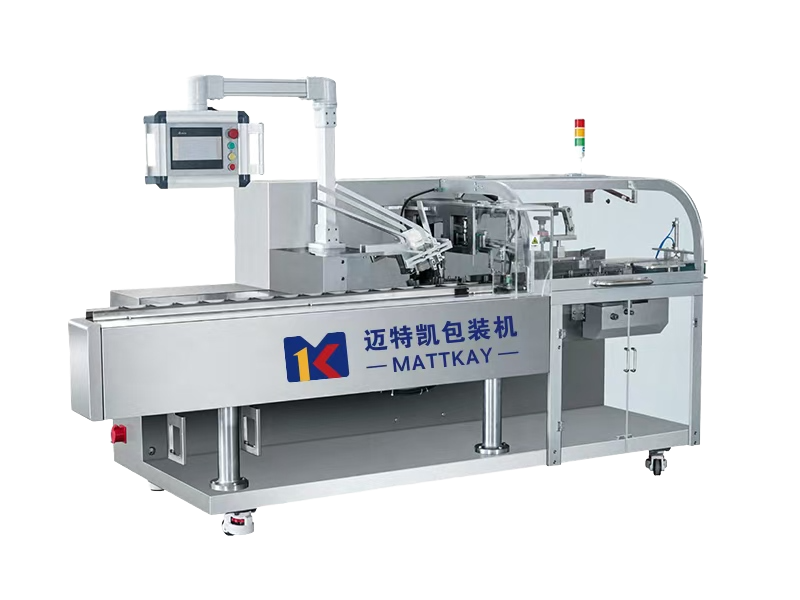

MTK-120/MTK-130 Automatic Folding Tray Packaging Machine for Face Masks

Description

This automatic mask tray folding and cartoning machine connects to an 8-head mask filling machine to achieve automated sorting and packaging. The sorting system can adjust the number of bags per carton as required, featuring counting systems for 5-piece, 6-piece, and 10-piece configurations. It performs fully automated functions including bag sorting, inner tray folding, tray filling, tray loading into cartons, and carton sealing.

Utilizing a snap-lock sealing mechanism, the line's packaging speed synchronizes with the upstream filler's output, achieving a maximum throughput of 50 boxes per minute.

SHARE AS

REQUEST A QUOTE

Features

There are two types of horizontal automatic cartoning machines: box insertion type and glue spraying type.

Users can choose according to the sealing method of the product.

The machine adopts a flat pushing method to feed materials. The packaging speed is within 10-80 boxes/minute, and the stable speed can be set according to product requirements; it has functions such as automatic box opening, box loading, and box sealing, and can also be equipped with automatic material sorting lines, labeling machines, case packing machines, etc. according to needs; it has strong compatibility, and the paper box can be adjusted freely within 50*25*15mm~300*300*260mm, which is easy to operate.

Technical Parameters

Model	MTK-120
Packaging Speed	10-80 boxes/minute
Technical Specifications	250-450 g/m², with pre-folding effect, carton crease depth ≥0.4mm
Carton Requirements Dimension Range (L x W) (mm)	(70-220) × (40-120) × (12-60)
Compressed Air Pressure	0.5-0.8 MPa
Compressed Air Consumption	20 m²/h
Sealing Method	Humidity ≤80%, ambient temperature -10 to 40°C
Power Supply	380V 50Hz
Main Unit Power	1.5 kW
Dimensions	260013501650 mm
Net Weight	1200 kg
Note: Products can be customized according to user needs. Data is subject to change without notice.

Model	MTK-130
Packaging Speed	15-70 boxes/minute
Technical Specifications	250-450 g/m², with pre-folding effect, box crease depth ≥0.4mm
Carton Requirements Dimension Range (L x W) (mm)	(70-200) × (80-160) × (15-60)
Compressed Air Pressure	0.5-0.8 MPa
Compressed Air Consumption	20 m²/h
Sealing Method	Humidity ≤80%, ambient temperature -10 to 40°C
Power Supply	380V 50Hz
Main Unit Power	1.5 kW
Dimensions	280015501650 mm
Net Weight	1300 kg
Note: Products can be customized according to user needs. Data is subject to change without notice.

Applications

It is suitable for paper box packaging in various fields such as food, medicine, medical equipment, electronic products, hardware accessories, automotive accessories, cosmetics, daily necessities, etc.
